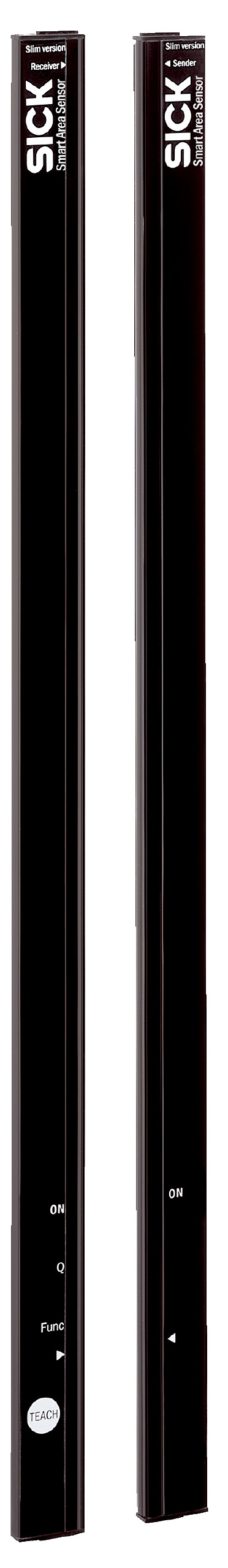

Parallel Beam Safety Sensor | 12 Beams | IP65 Rated | Infrared Light | by SICK
The Parallel Beam Safety Sensor is designed for industrial automation safety monitoring, featuring 12 beams and a minimum detectable object size of 45 mm. With an IP65 rated enclosure and infrared light source, it ensures reliable performance in machine guarding and perimeter protection applications, making it ideal for factories and production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 12
- Detection height: 440 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Connection type: Cable with M8 male connector, 4-pin
- Enclosure rating: IP65
- Shock resistance: 10 g
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Operating temperature: -25 °C to +55 °C
- Response time: 19 ms
- Maximum range: 10 m
- Operating range: 7 m
- Dimensions (H x L x W): 512mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 12 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Detection height of 440 mm
- Infrared light source with 950 nm wavelength
- Supply voltage DC 24 V ± 20%
- PNP switching output with 100 mA max output current
- Cable connection with M8 male connector, 4-pin
- IP65 rated enclosure for dust and water protection
- LED indication and optical synchronization
- Shock resistance 10 g and vibration resistance 5 g
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Conveyor and production line safety
- Access control in hazardous areas
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable IP65 housing reduces need for frequent replacements
- Robust design minimizes electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

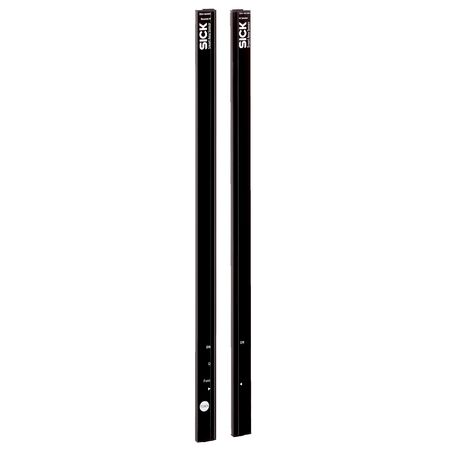

The SICK SAS4-S044P7PS1W0A Parallel Beam Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
