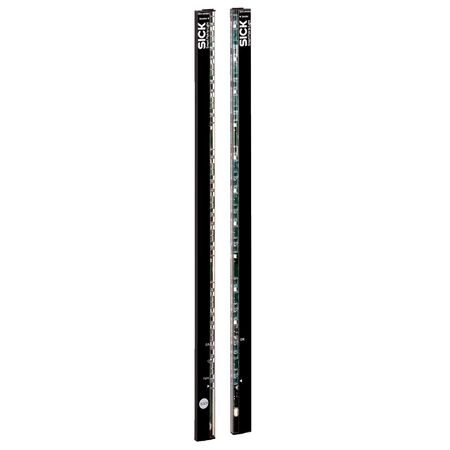

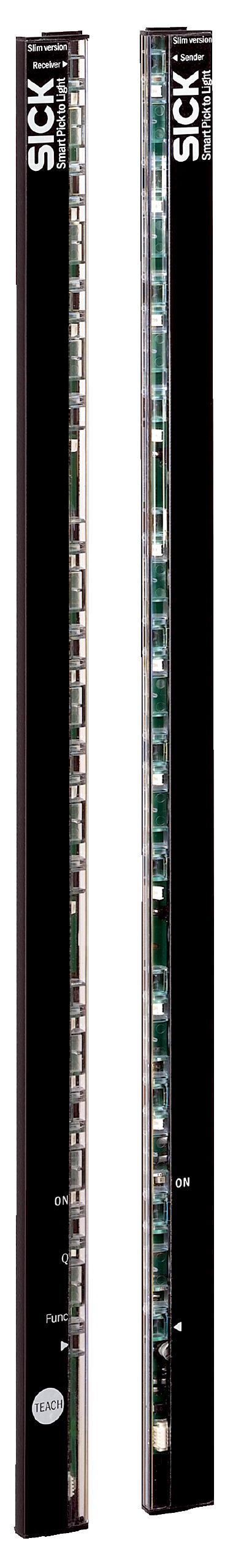

Parallel Beam Safety Sensor | 4-Beam Light Curtain | IP65 Rated | Infrared Detection | by SICK
The Parallel Beam Safety Sensor SPL-F120PPS1W04 features a 4-beam light curtain with a minimum detectable object size of 45 mm and a detection height of 120 mm. Designed for industrial automation and safety applications, this sensor operates with infrared light at a wavelength of 950 nm, ensuring reliable object detection. With an IP65 rating for dust and water protection, it’s perfect for machine guarding and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Parallel Beam Safety Sensor | 4-Beam Light Curtain | IP65 Rated | Infrared Detection | by SICK
Brand: SICK
SKU: 1046128
Alternatively Known As: Parallel Beam Safety Sensor, 4-Beam Light Curtain, Infrared Object Detector
Technical Specifications
- Sensor principle: Sender/receiver parallel beam
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Number of beams: 4
- Detection height: 120 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: PNP
- Connection type: Cable with M8 male connector, 4-pin
- Enclosure rating: IP65
- Response time: 19 ms
- Operating range: 1.5 m
- Maximum range: 3 m
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 192mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Parallel beam sensor principle with 4 beams
- Minimum detectable object size of 45 mm
- Detection height of 120 mm
- Infrared light source with 950 nm wavelength
- Automatic teach function active
- Output 1 active when light beam is interrupted
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Safety light curtain applications
- Machine guarding and presence detection
- Conveyor and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 50 mA current draw
- Durable PMMA housing extends product life reducing waste
- Robust design minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SPL-F120PPS1W04 sensor is available for immediate purchase, ideal for industrial automation and safety applications.
