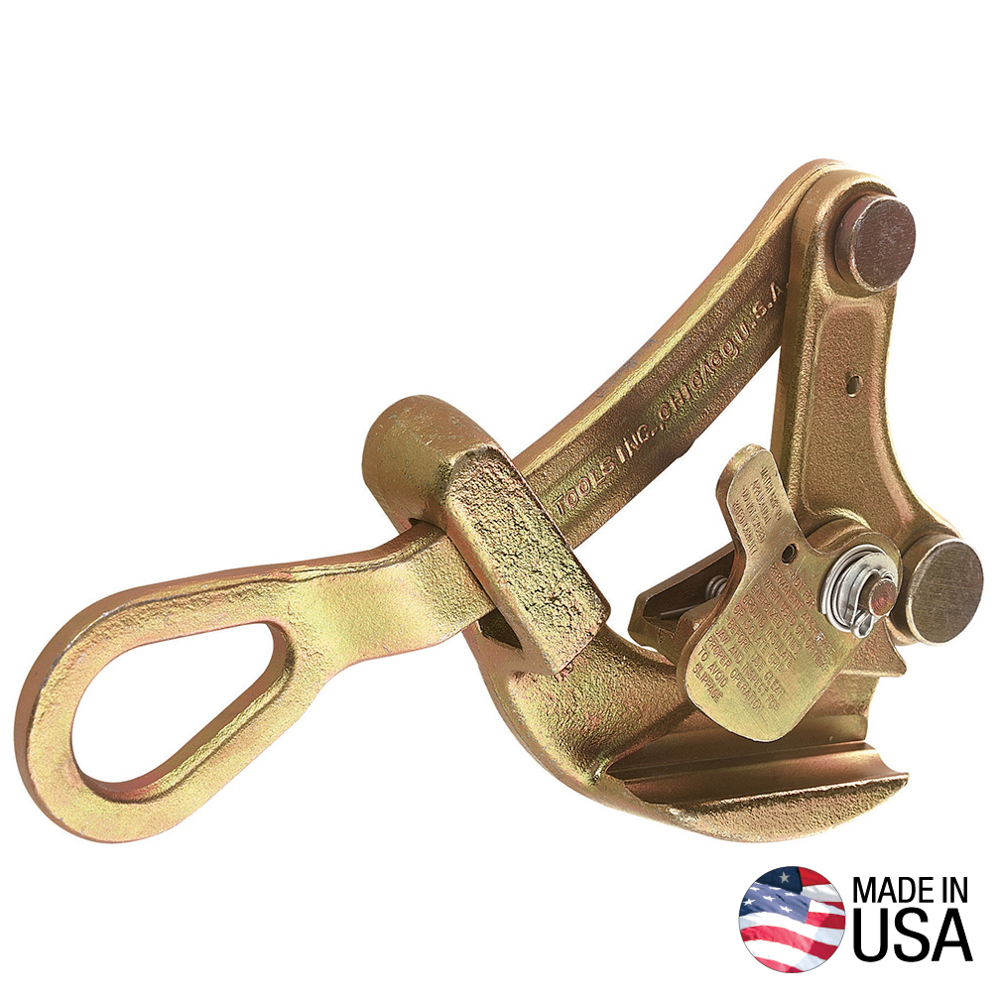

Parallel-Jaw Grip | 64 mm Jaw Length | 2041 kg Max Load | Serrated Jaw Design | @Each by Wattmaster
The Parallel-Jaw Grip is designed for efficient cable pulling, featuring a 64 mm jaw length and a maximum safe load of 2041 kg. Ideal for professional use, this grip includes a serrated lower jaw for a firm hold on insulated cables, ensuring safety and reliability during wire installation tasks. Its lightweight and compact design makes it suitable for a variety of cable sizes, making it a must-have for trained personnel in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Parallel-Jaw Grip | 64 mm Jaw Length | 2041 kg Max Load | Serrated Jaw Design | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1685-20
Alternatively Known As: Parallel Jaw Cable Grip, Wire Pulling Grip, Cable Pulling Clamp, Parallel-Jawed Wire Grip
Technical Specifications
- Jaw Length: 64 mm (2.5 inches)
- Cable Diameter Range: 3.98 mm to 22.22 mm (0.157'' to 0.875'')
- Maximum Safe Load: 2041 kg (4500 lb)
- Jaw Type: Round inside contour with serrated lower jaw
- Includes spring for secure gripping
- Weight: 1.2 kg (2.6 lb)
- Large-diameter eye for hoist and winch compatibility
- Latch prevents accidental disengagement
- Dimensions (H x L x W): 30mm x 160mm x 64mm
- Weight: 1.2 kg
Key Features
- Lightweight and compact design suitable for a wide range of cable sizes and types
- Round inside-jaw contour maximizes contact to minimize conductor damage
- Lower serrated jaw firmly grips insulated cables and conductors
- Latch design prevents grip from falling if jaw disengages from cable
- Large-diameter eye accommodates large hooks on hoists, winches, and tackle blocks
- Spring included for secure gripping
Professional Installation Requirements
- Should be used by trained personnel familiar with cable pulling safety procedures; inspect before use and ensure proper size and type for the application.
Applications
- Cable pulling for messenger, EHS, and coated cables
- Temporary installation for wire-pulling tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Designed for temporary use, supporting efficient and safe cable installation
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Parallel-Jaw Grip 64 mm Length is available for immediate purchase, ideal for professional cable pulling and wire installation tasks.
