Parallel-Jaw Grip for 18 mm to 33 mm HDPE Wire | High-Traction Carbide Grip | Spring Loaded for One-Handed Operation | by Wattmaster
The Parallel-Jaw Grip for 18 mm to 33 mm HDPE Wire is designed for secure cable pulling in electrical and utility installations. With a maximum safe load of 5443 kg and an innovative high-traction carbide grit surface, it ensures a firm grip without damaging the cable jacket. Ideal for harsh job-site conditions, this tool is perfect for trained professionals looking for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Parallel-Jaw Grip for 18 mm to 33 mm HDPE Wire | High-Traction Carbide Grip | Spring Loaded for One-Handed Operation | by Wattmaster
Brand: Wattmaster
SKU: A-1716-60
Alternatively Known As: Parallel Jaw Grip, HDPE Cable Pulling Grip, Tree Wire Grip, Cable Pulling Tool
Technical Specifications
- Cable Diameter Range: 17.78 mm to 33.02 mm (0.7'' to 1.3'')
- Jaw Type: Round
- Jaw Length: 130 mm (5.125'')
- Maximum Safe Load: 5443 kg (12,000 lb)
- Spring Loaded: Yes
- Hot Latch: No
- Swing Latch: No
- Locking Handle: No
- Weight: 3.7 kg (8.1 lb)
- Dimensions (H x L x W): 50mm x 130mm x 130mm
- Weight: 3.7 kg
Key Features
- Securely pulls HDPE-coated cable without damaging the outer jacket
- Innovative high-traction carbide grit surface for superior grip
- Spring loaded for one-handed operation and easy placement on conductor
- Tough carbide grit technology withstands harsh job-site conditions
- Capable of pulling cable diameters from 17.78 mm to 33.02 mm
- Maximum safe load of 5443 kg (12,000 lb)
- Round jaw type with 13 cm jaw length
Professional Installation Requirements
- Use by trained personnel is recommended to ensure proper grip placement and safe operation; inspect before use and do not exceed rated capacity.
Applications

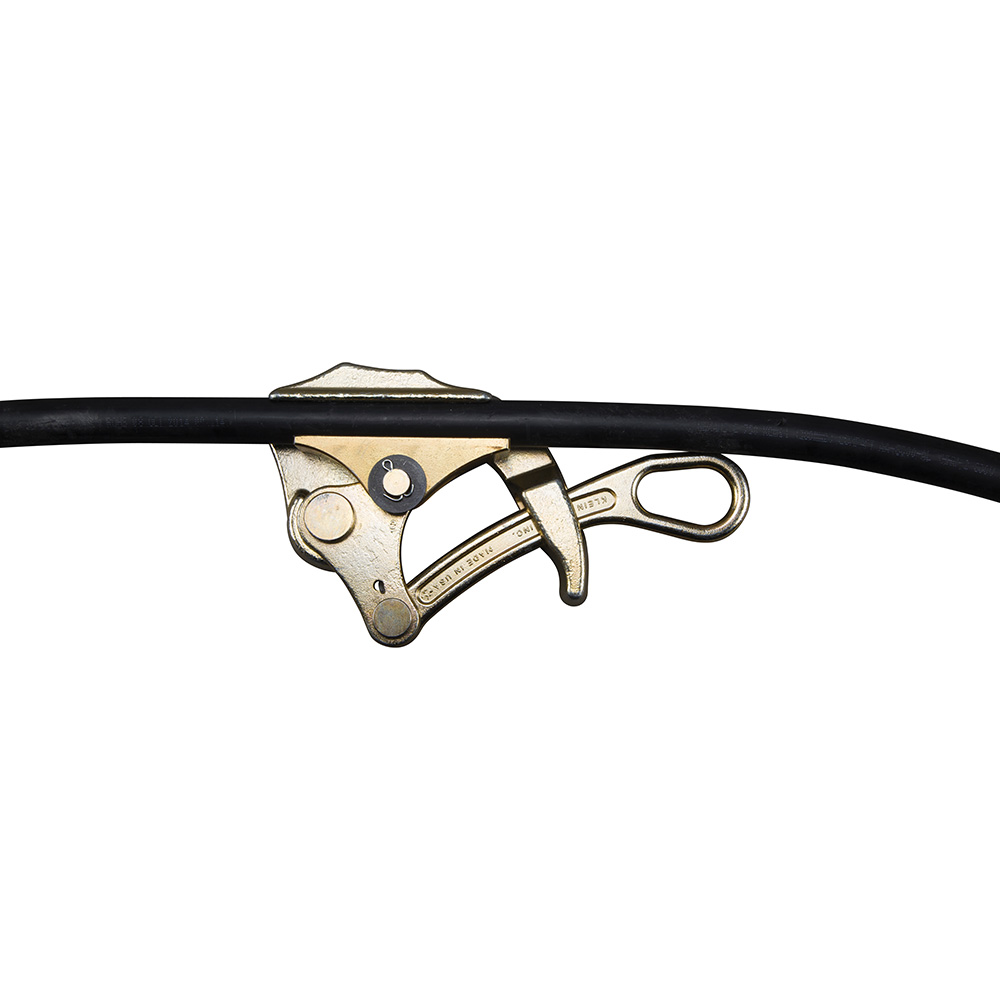

- Pulling HDPE-coated cables (tree wire) in electrical and utility installations
- Suitable for General Cable, Hendrix® aerial systems, Rite Lite BLL conductor, and Southwire S2 covered cable
- Ideal for use in harsh job-site conditions requiring secure cable grip
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Enables safe and efficient cable installation, supporting sustainable infrastructure development
Warranty Information
Warranty details not specified; typically covered by manufacturer against defects.
Available Now
The Wattmaster Parallel-Jaw Grip for 18 mm to 33 mm HDPE Wire is available for immediate purchase, ideal for professional electrical and utility cable pulling applications.
