Trade Discount 25%

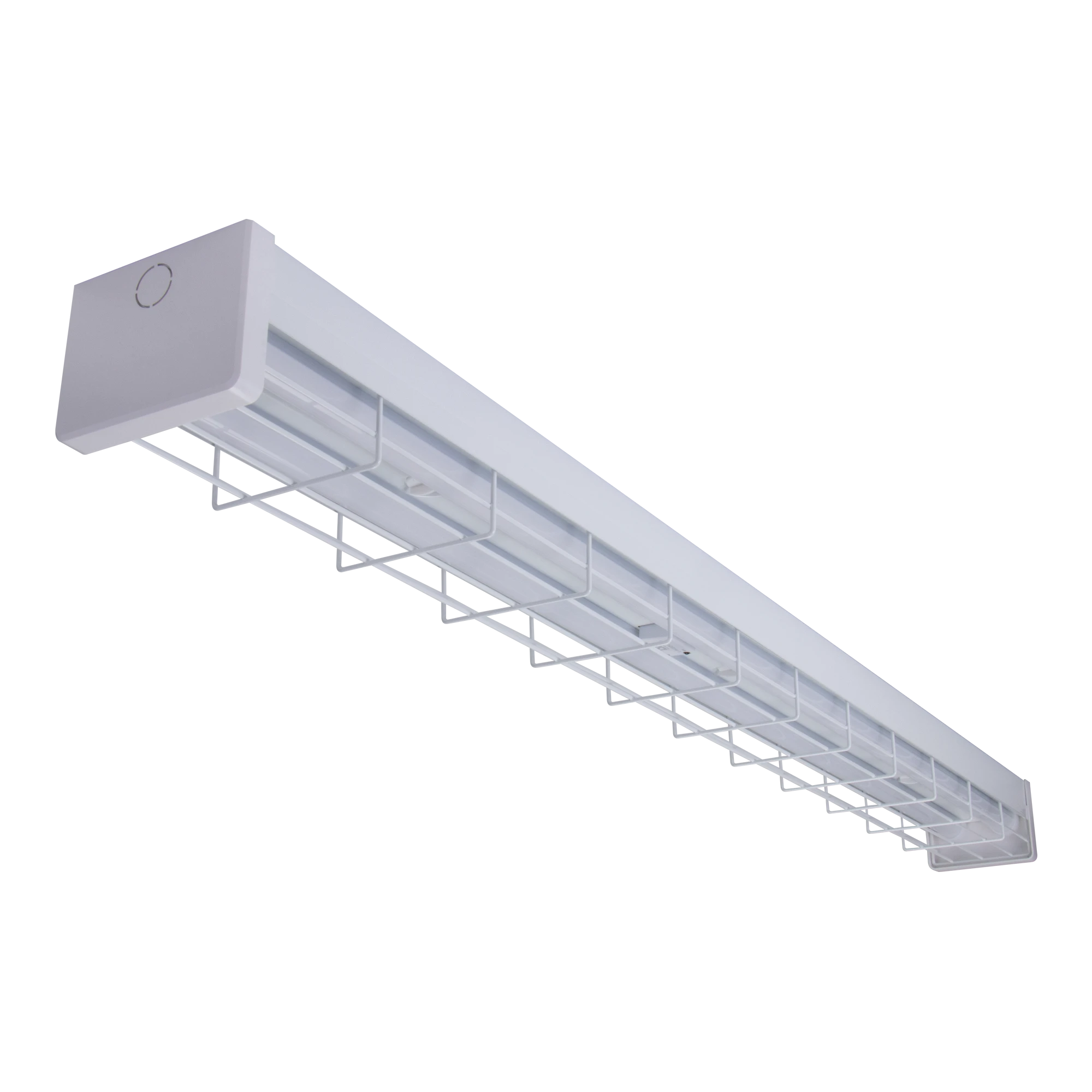

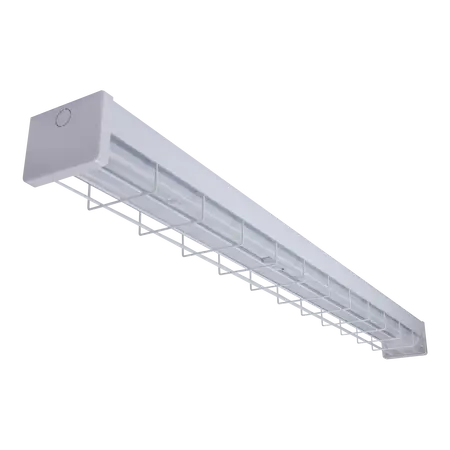

Park-120 DALI Emergency Batten 15/30W Wire Guard Tri-Colour Domus
Domus Park-120 DALI emergency LED batten with wire guard, 1200mm, 15/30W selectable, white body, tri-colour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PARK-120-WG-EM-DALI, Domus PARK 120 Emergency Batten, DALI Emergency LED Batten, Tri-Colour Emergency Batten
Technical Specifications
- Product Code: PARK-120-WG-EM-DALI
- Variant ID: 67424
- Control: DALI dimming
- Wattage: 15W/30W selectable
- Emergency Operation: Maintained and non-maintained
- Input Voltage: 240V AC
- Colour Temperature: 3000K/4000K/5000K selectable
- Luminous Efficacy: 130 lm/W high-output dedicated LED
- Colour Rendering: CRI ≥80
- Beam Angle: 120°
- Ingress Protection: IP20
- Body Material: White powder-coated sheet metal
- Guard: Wire guard
- Battery: LiFePO4
- Charge Time: 24 hours
- Mounting: Surface mounted
- Cable Entry: 20mm knockouts for conduit or cable glands
- Dimensions (H x L x W): 82mm x 1230mm x 109mm
- Weight: 2.4 kg
Key Features
- DALI-controlled emergency lighting for compatible lighting-management systems
- Selectable 15W or 30W output via driver switch
- Tri-colour dip-switch selection between 3000K, 4000K and 5000K
- Maintained and non-maintained emergency operation
- LiFePO4 emergency battery technology
- White powder-coated metal body with protective wire guard
- Dedicated integrated LED with approximately 130 lm/W efficacy
- Suitable for domestic and commercial indoor applications
- Designed as a replacement for T8 and T5 wide-body fluorescent battens
- Australian-designed product
Professional Installation Requirements
- Installation and electrical connection must be performed by a licensed electrician in accordance with the installation instructions, AS/NZS 3000 and applicable emergency-lighting requirements. DALI commissioning should be completed by a suitably qualified lighting-controls technician where required.
Applications
- Commercial buildings and offices
- Indoor car parks and basement areas
- Warehouses and storage areas
- Laundries, garages and storerooms
- Corridors, accessways and common areas requiring emergency lighting
- DALI-controlled emergency-lighting installations
Standards & Compliance
- AS/NZS 2293.3 for emergency luminaires and exit signs
Environmental Benefits
- LED technology provides higher energy efficiency than traditional fluorescent battens
- Selectable 15W/30W output allows energy use to be matched to the required light level
- DALI control supports centralised dimming, scheduling and energy management
- Long-life integrated LED technology can reduce replacement frequency and material waste
- Replaceable LED driver can extend service life and reduce whole-fitting replacement waste
- LiFePO4 battery technology is free from lead and cadmium-based battery chemistries
Warranty Information
Domus emergency lighting warranty: 5-year replacement warranty for residential applications or 4-year replacement warranty for commercial applications, with a 4-year battery replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
