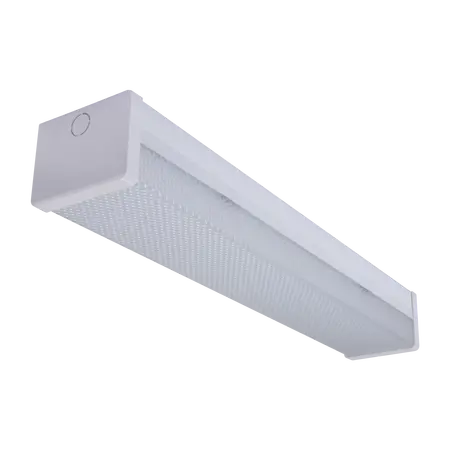

Park-120 DALI Emergency LED Batten 15/30W Diffused Domus
Domus Park-120 DALI emergency LED batten, 1200mm, 15/30W selectable, diffused, white body, tri-colour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus PARK-120-DIFF-EMDALI, DALI Emergency LED Batten, Emergency LED Batten with Prismatic Diffuser
Technical Specifications
- Model: PARK-120-DIFF-EMDALI
- Control: DALI dimming
- Wattage: 15W/30W selectable
- Emergency Mode: Maintained / non-maintained
- Colour Temperature: 3000K / 4000K / 5000K switchable
- Luminous Output: Up to 4050 lm, depending on wattage and colour temperature
- Input Voltage: 240V AC
- Beam Angle: 120°
- Light Source: Dedicated SMD LED
- Colour Rendering Index: CRI ≥80
- Ingress Protection: IP20
- Diffuser: Opal prismatic polycarbonate diffuser
- Battery: LiFePO4 emergency battery
- Charge Time: 24 hours
- Construction: White powder-coated pressed sheet-metal body
- Cable Entry: 20 mm knockouts for conduit or cable glands
- Manufacturer Compliance: Declared compliant with AS/NZS 2293.3 requirements
- Dimensions (H x L x W): 82mm x 1230mm x 109mm
- Weight: 2.2 kg
Key Features
- DALI-controlled emergency LED batten
- Selectable 15W or 30W output
- Maintained and non-maintained emergency operation
- Tri-colour selectable between 3000K, 4000K and 5000K
- Opal diffuser provides even light distribution
- Direct replacement for T8 and T5 wide-body fluorescent battens
- Dedicated high-output LED technology rated at up to 130 lm/W
- White powder-coated metal body
- Suitable for 1200 mm commercial and domestic batten applications
Professional Installation Requirements
- Installation and connection to 240V AC mains must be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian wiring requirements.
Applications
- Commercial emergency lighting installations
- Underground car parks
- Garages and storerooms
- Laundries and utility areas
- Commercial, industrial and residential areas requiring DALI-controlled emergency lighting
- Replacement of 1200 mm T8 or T5 wide-body fluorescent battens
Standards & Compliance
- AS/NZS 2293.3:2018 — manufacturer-declared compliance for emergency luminaires and exit signs
Environmental Benefits
- LED technology can reduce operating energy consumption compared with fluorescent battens
- Selectable wattage allows light output and energy use to be matched to application requirements
- Long-life LED construction can reduce lamp replacement frequency and associated waste
- The metal body and polycarbonate diffuser may be separable for appropriate end-of-life material recovery
Warranty Information
Domus Lighting's current warranty policy lists emergency lighting with a 5-year replacement warranty for residential applications and a 4-year replacement warranty for commercial applications, with a 4-year battery replacement warranty. Installation by a licensed electrician and compliance with installation guidelines are required. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
