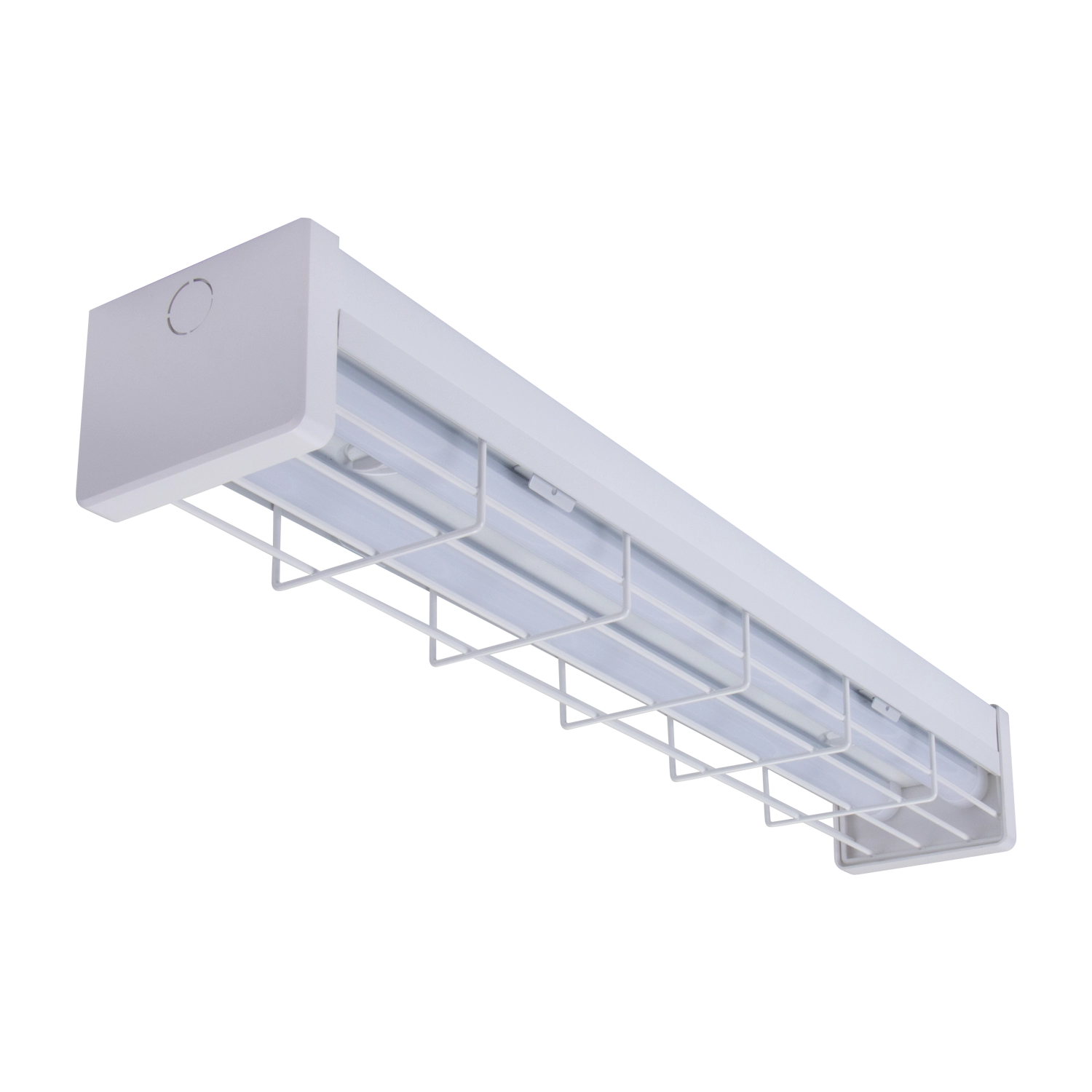

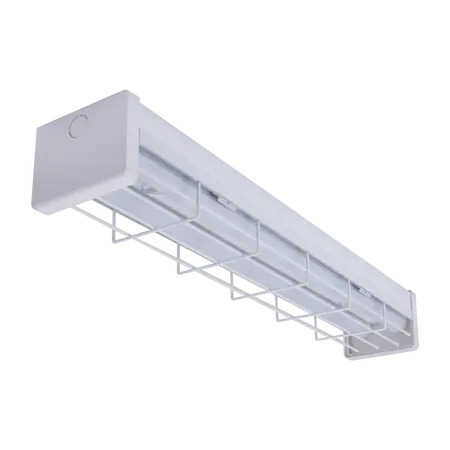

Park-60 DALI Emergency Batten 7.5/15W Wire Guard Tri-Colour Domus
Domus Park-60 DALI emergency LED batten with wire guard, 600mm, 7.5/15W selectable, white body, tri-colour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PARK-60-WG-EM-DALI, 600mm Emergency LED Batten, DALI Emergency Batten, Tri-Colour Emergency Batten
Technical Specifications
- Model: PARK-60-WG-EM-DALI
- Item Number: 67440
- DALI Control: DALI dimming and monitoring compatible
- Wattage: 7.5W/15W selectable
- Emergency Operation: Maintained / non-maintained
- Colour Temperature: 3000K, 4000K or 5000K selectable
- Input Voltage: 240V AC
- Luminous Efficacy: 130 lm/W high-output dedicated LED
- Colour Rendering Index: CRI ≥80
- Beam Angle: 120°
- Battery: LiFePO4
- Battery Charging Time: 24 hours
- Emergency Duration: 120 minutes rated
- Ingress Protection: IP20
- Construction: White powder-coated sheet-metal body with wire guard
- Cable Entry: 20mm knockouts for conduit or cable glands
- Diffuser/Guard: Wire guard with even light output
- Dimensions (H x L x W): 82mm x 620mm x 109mm
- Weight: 1.2 kg
Key Features
- DALI-enabled emergency LED batten for central lighting management
- Selectable 7.5W or 15W output using the driver-mounted power switch
- Tri-colour CCT selection between 3000K, 4000K and 5000K
- Maintained and non-maintained emergency operation
- LiFePO4 emergency battery technology
- White powder-coated sheet-metal body with protective wire guard
- Suitable as a direct replacement for T8 and T5 wide-body fluorescent battens
- Australian-designed fitting for quick installation
- 120-minute rated emergency operation
- Dedicated LED module designed for efficient operation and reduced maintenance
Professional Installation Requirements
- Installation must be completed by a licensed electrician. Isolate the 240V AC supply before installation and connect the emergency and DALI circuits in accordance with the manufacturer's installation instructions and applicable electrical installation requirements.
Applications
- Commercial emergency lighting systems
- Underground car parks
- Garages and storage areas
- Laundries and utility rooms
- Industrial and commercial corridors
- Building evacuation and egress lighting installations
Standards & Compliance
- AS/NZS 2293.3:2018 for emergency luminaires, as declared by the manufacturer
- AS/NZS 2293.1:2018 for emergency lighting system design, installation and commissioning
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- LED technology provides lower energy consumption than traditional fluorescent battens
- Selectable 7.5W/15W output allows light levels and energy use to be matched to the application
- Long-life LED technology and a replaceable LED module can reduce replacement waste
- LiFePO4 battery technology supports extended emergency-system service life
- Reduced maintenance requirements compared with fluorescent lighting systems
Warranty Information
Domus emergency lighting warranty: 5-year product replacement warranty for residential applications or 4-year replacement warranty for commercial applications, with a 4-year battery replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
