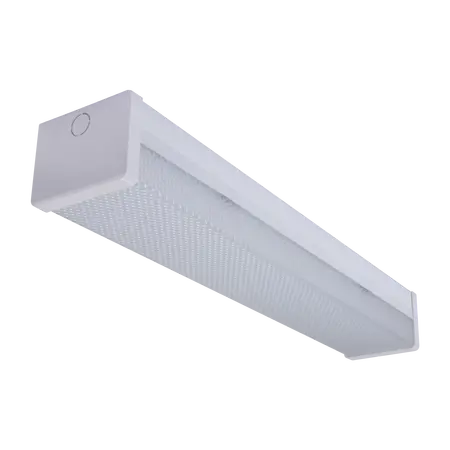

Park-60 DALI Emergency LED Batten 7.5/15W Diffused Domus

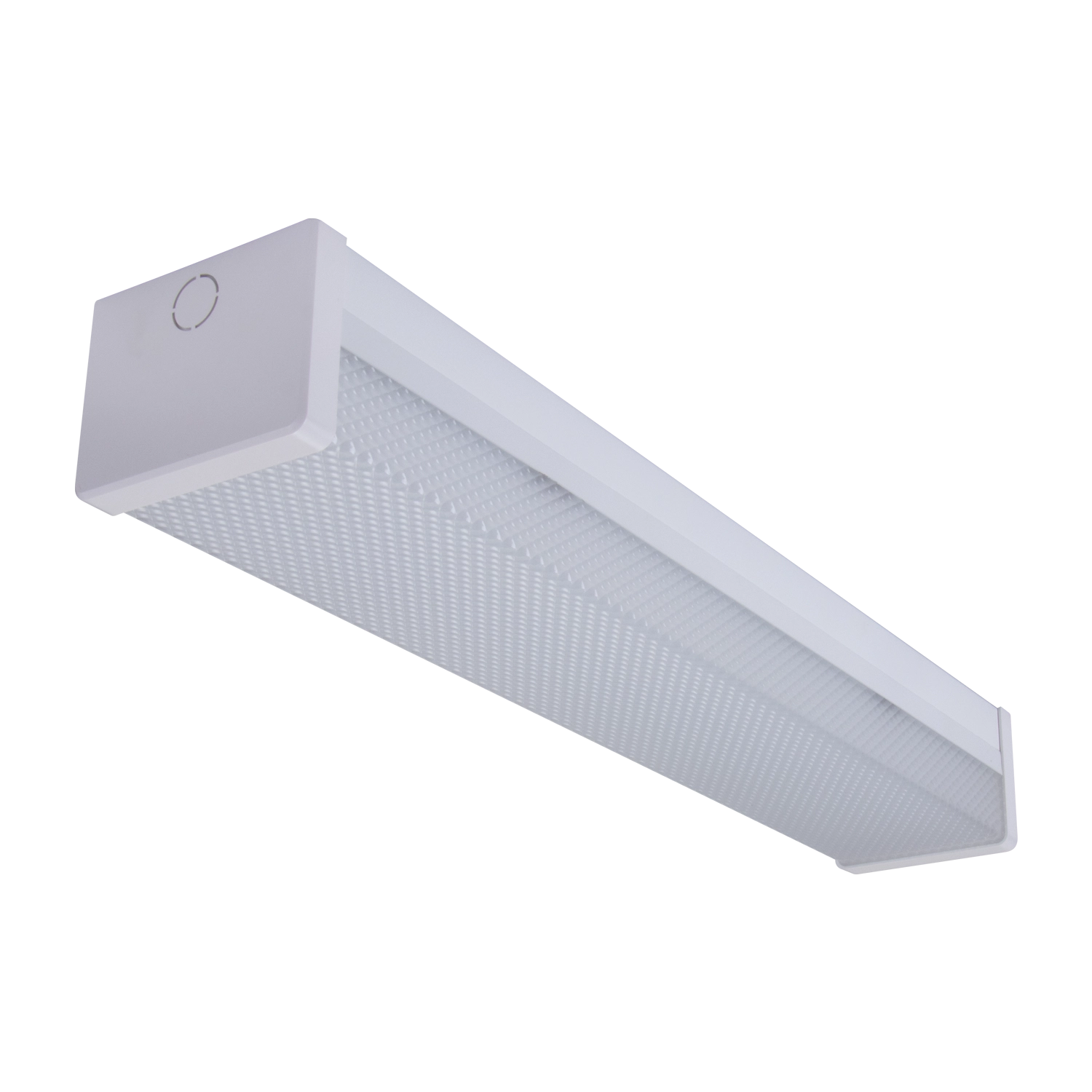

Domus Park-60 DALI emergency LED batten, 600mm, 7.5/15W selectable, diffused, white body, tri-colour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Park-60 Emergency Batten, DALI Emergency LED Batten, 600mm Emergency LED Light, Diffused Emergency Batten
Technical Specifications
- Control: DALI dimming
- Wattage: 7.5W/15W selectable
- Colour Temperature: 3000K/4000K/5000K switchable
- Lumen Output: 130 lm/W high-output dedicated LED
- Emergency Mode: Maintained/non-maintained
- Input Voltage: 240V AC
- Beam Angle: 120°
- Colour Rendering Index: CRI ≥80
- Ingress Protection: IP20
- Battery: LiFePO4
- Diffuser: Opal diffuser with even light output
- Construction: White powder-coated sheet metal body with polycarbonate diffuser
- Charge Time: 24 hours
- Mounting: Surface mounted
- Emergency Variant: PARK-60-DIFF-EMDALI, variant ID 67432
- Dimensions (H x L x W): 82mm x 620mm x 109mm
- Weight: 1.1 kg
Key Features
- DALI-controlled emergency LED batten
- Selectable 7.5W or 15W output using the driver switch
- Tri-colour selection between warm white, neutral white and white
- Maintained and non-maintained emergency operation
- 600mm class batten with diffused, even light output
- Direct replacement for T8 and T5 wide-body fluorescent battens
- Australian-designed product with replaceable LED driver
- 20mm knockouts for conduit or cable glands
Professional Installation Requirements
- Installation and electrical connection should be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable emergency-lighting requirements.
Applications
- Emergency lighting in commercial buildings
- Laundries, garages and storerooms
- Underground car parks
- Commercial corridors, service areas and plant rooms
- Replacement of T8 and T5 wide-body fluorescent battens
Standards & Compliance
- AS/NZS 2293.3 for emergency luminaires and exit signs
- AS/NZS 60598.2.22 for luminaires for emergency lighting
- AS/NZS 3000 for electrical installation requirements
Environmental Benefits
- LED technology provides lower energy consumption than comparable fluorescent battens
- Selectable lower-power operation can reduce electricity use where maximum output is not required
- Long-life dedicated LED technology and replaceable driver can reduce replacement waste
- LiFePO4 emergency battery technology supports rechargeable emergency operation
- Reduced maintenance requirements compared with fluorescent lamps
Warranty Information
Domus Lighting warranty: 5-year replacement warranty for emergency lighting in residential applications, with a 4-year battery replacement warranty. Commercial emergency-lighting applications have a 4-year replacement warranty and 4-year battery replacement warranty. Installation by a licensed electrician and compliance with installation instructions are required.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; distributor stock and lead times should be confirmed before ordering.
