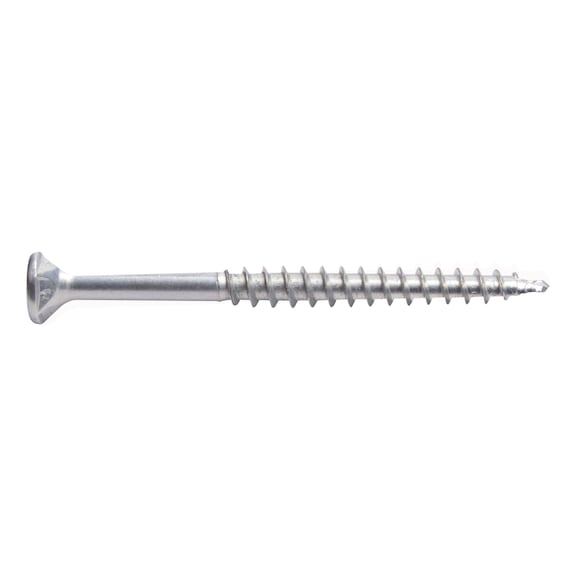

Particle Board Screws | Blue Galvanized | Countersunk Head | AW20 Drive | @Pack of 500 | by Wurth
Particle board screws with a blue galvanized finish and countersunk milling pocket head are perfect for furniture assembly and cabinet making. Designed for professionals, these screws feature a partial wood screw thread with a drilling tip for rapid installation, preventing wood splitting and ensuring clean work. Ideal for indoor applications, they provide a secure fastening solution for wood and derived timber products.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Particle Board Screws | Blue Galvanized | Countersunk Head | AW20 Drive | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 165914040
Alternatively Known As: Particle board screws, Blue galvanized wood screws, Countersunk wood screws, AW20 drive screws, Furniture screws
Technical Specifications
- Nominal diameter: 4 mm
- Length: 40 mm
- Thread length: 23 mm
- Screw-thread length with drill tip: 26 mm
- Head type: Countersunk milling pocket head
- Head diameter: 8 mm
- Head height: 2.5 mm
- Internal drive: AW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), LVL
- Area of application: Furniture, cabinet, store and exhibition stand construction indoors
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 40mm x 8mm
- Weight: 1.13 kg
Key Features
- Galvanized hardened steel with blue passivated surface
- Countersunk milling pocket head for easy countersinking
- Partial wood screw thread with drilling tip for rapid spot drilling
- AW20 internal drive for optimum bit fit and power transfer
- Prevents splitting and rupturing of wood and coated boards
- Gentle thread start after drill tip enables fast screwing
- Chips collected during screwing for clean work
Professional Installation Requirements
- Installation by professionals or experienced users recommended to ensure proper fastening and avoid material damage.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Indoor wood and derived timber product fastening
Standards & Compliance
- AS/NZS 4785 – Wood screws and nails
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth offers standard product quality assurance; specific warranty details available upon request.
Available Now
Available for immediate purchase, ideal for indoor furniture and cabinet construction applications.
