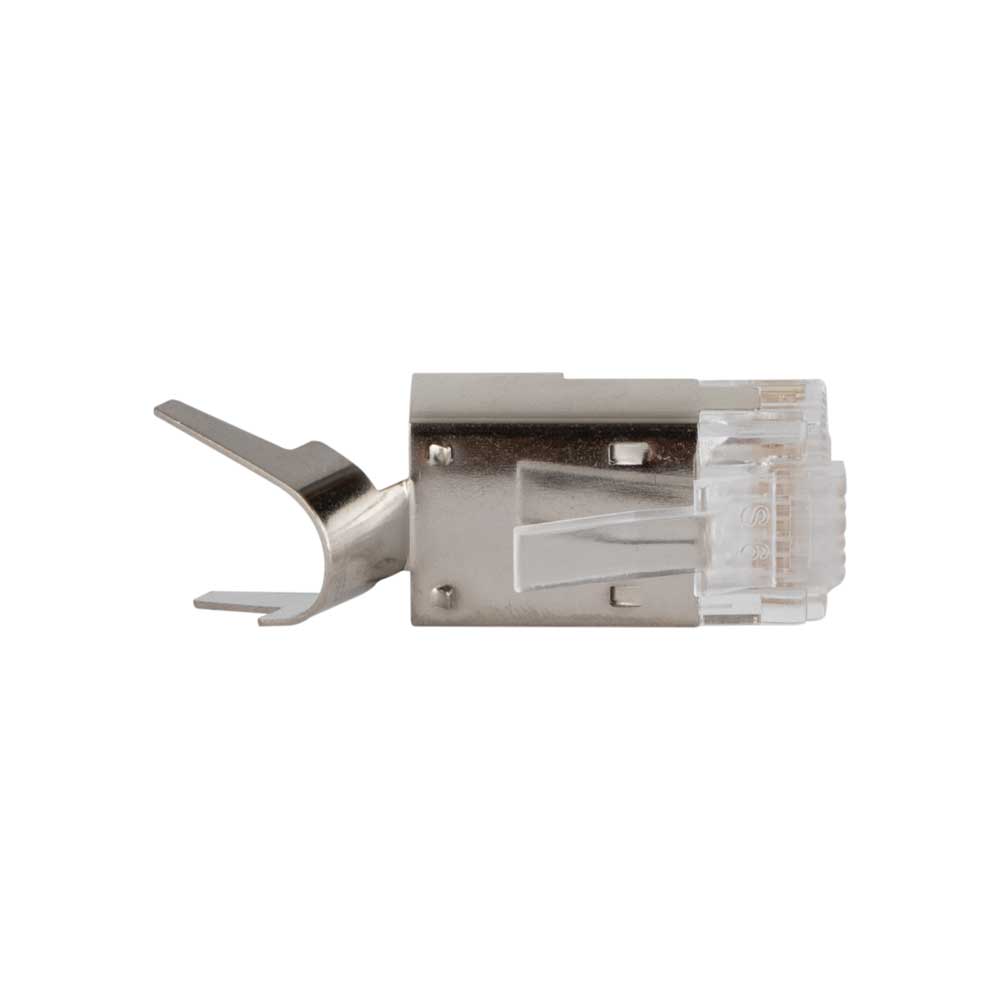

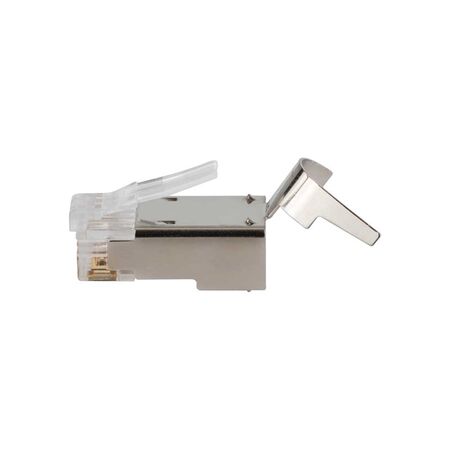

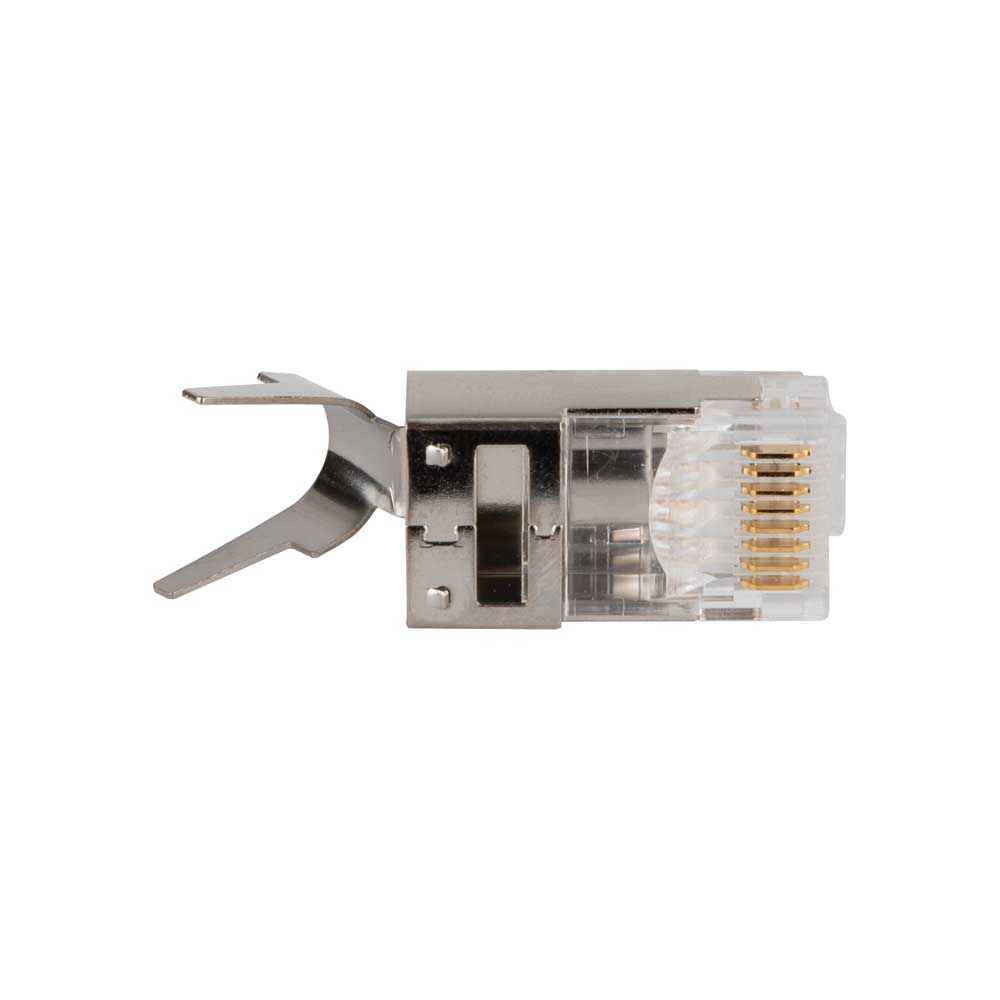

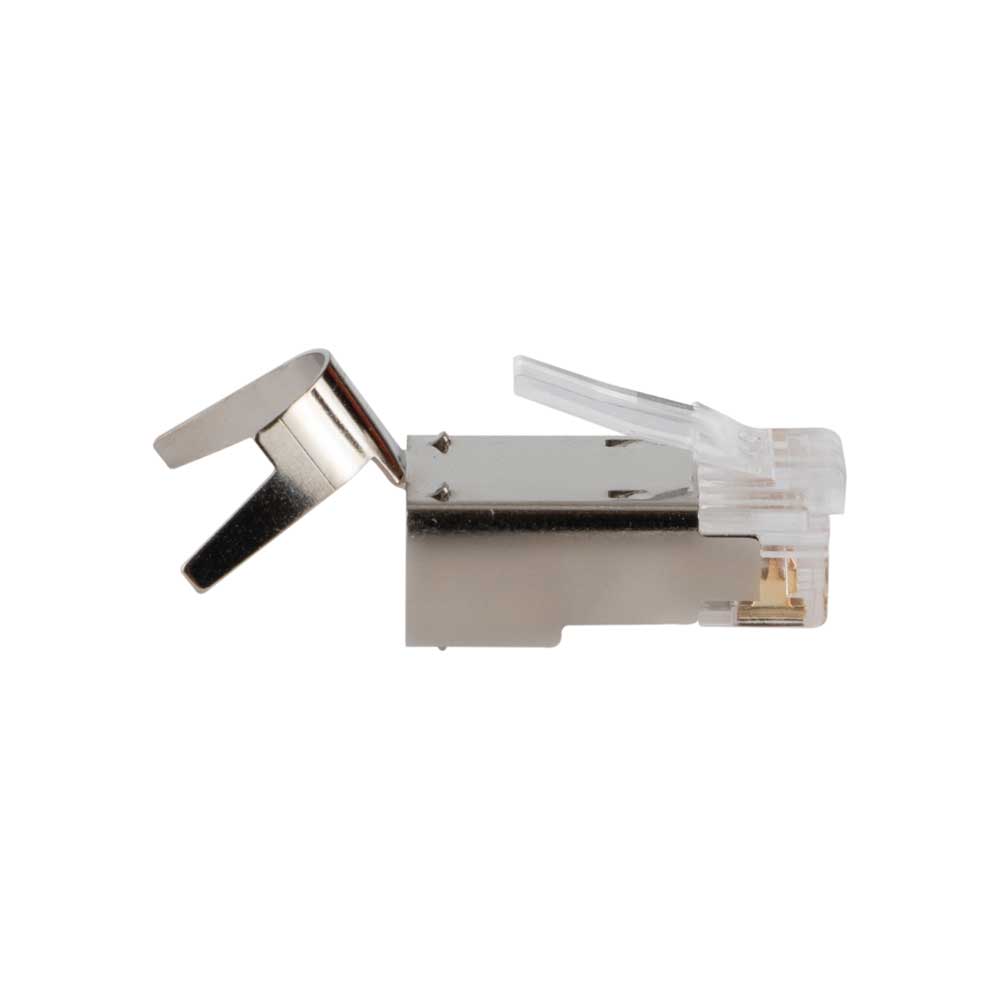

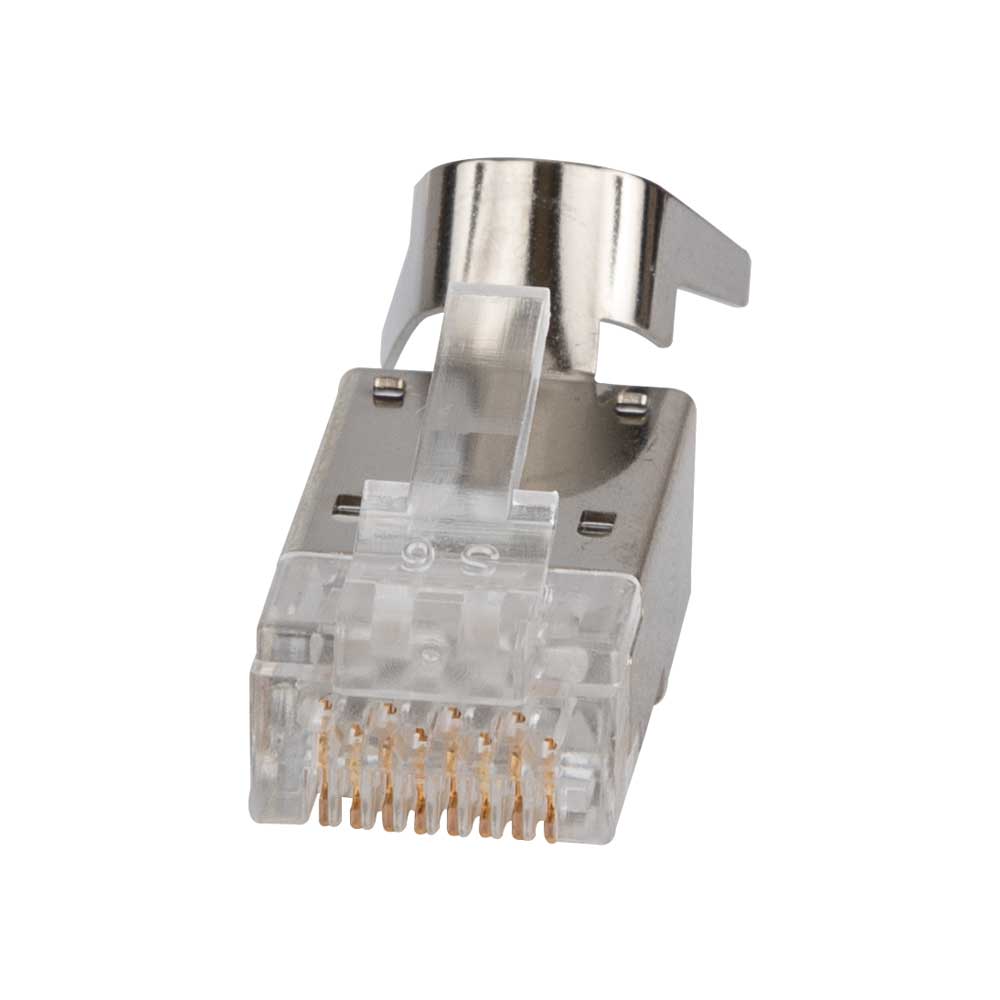

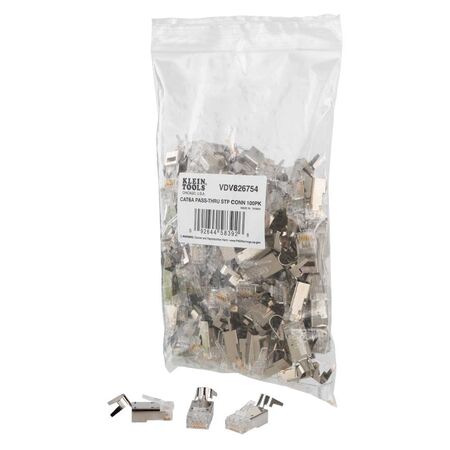

Pass-Thru™ Modular Data Plug RJ45-CAT6A | Shielded (STP) | 50µ-inch Gold Plated Contacts | @Each by Wattmaster
The Pass-Thru™ Modular Data Plug RJ45-CAT6A is designed for fast and reliable data networking installations. Featuring exclusive Pass-Thru™ technology, these shielded connectors allow for visual verification of wire order, ensuring compliance with PoE and PoE+ standards. Ideal for both solid and stranded wire, this 100-pack is perfect for professional technicians looking to streamline their installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pass-Thru™ Modular Data Plug RJ45-CAT6A | Shielded (STP) | 50µ-inch Gold Plated Contacts | @Each by Wattmaster
Brand: Wattmaster
SKU: A-VDV826-754
Alternatively Known As: RJ45 CAT6A Pass-Thru Connector, Shielded RJ45 Modular Plug, CAT6A Data Plug, Pass-Thru RJ45 Connector
Technical Specifications
- Connector Type: RJ45
- Category: CAT6A Shielded (STP) and larger diameter CAT6 cable
- Contacts: 8 position, 8 contact pass-through
- Material: PVC plastic housing with 50µ-inch gold-plated contacts
- Max Cable Diameter: 1.1 mm (0.043 inches)
- Package Quantity: 100 plugs
- Compatible with solid and stranded conductor wire
- Overall Length: 20 mm
- Overall Height: 15 mm
- Overall Width: 10 mm
- Compliant with TIA/EIA-568-B.2 Category 6A performance
- Meets all Power Over Ethernet (PoE and PoE+) standards
- Dimensions (H x L x W): 15mm x 20mm x 10mm
- Weight: 0.289 kg
Key Features
- Exclusive Pass-Thru™ technology for fast, reliable connector installations
- Compatible with CAT6A shielded cable and larger diameter CAT6 cable

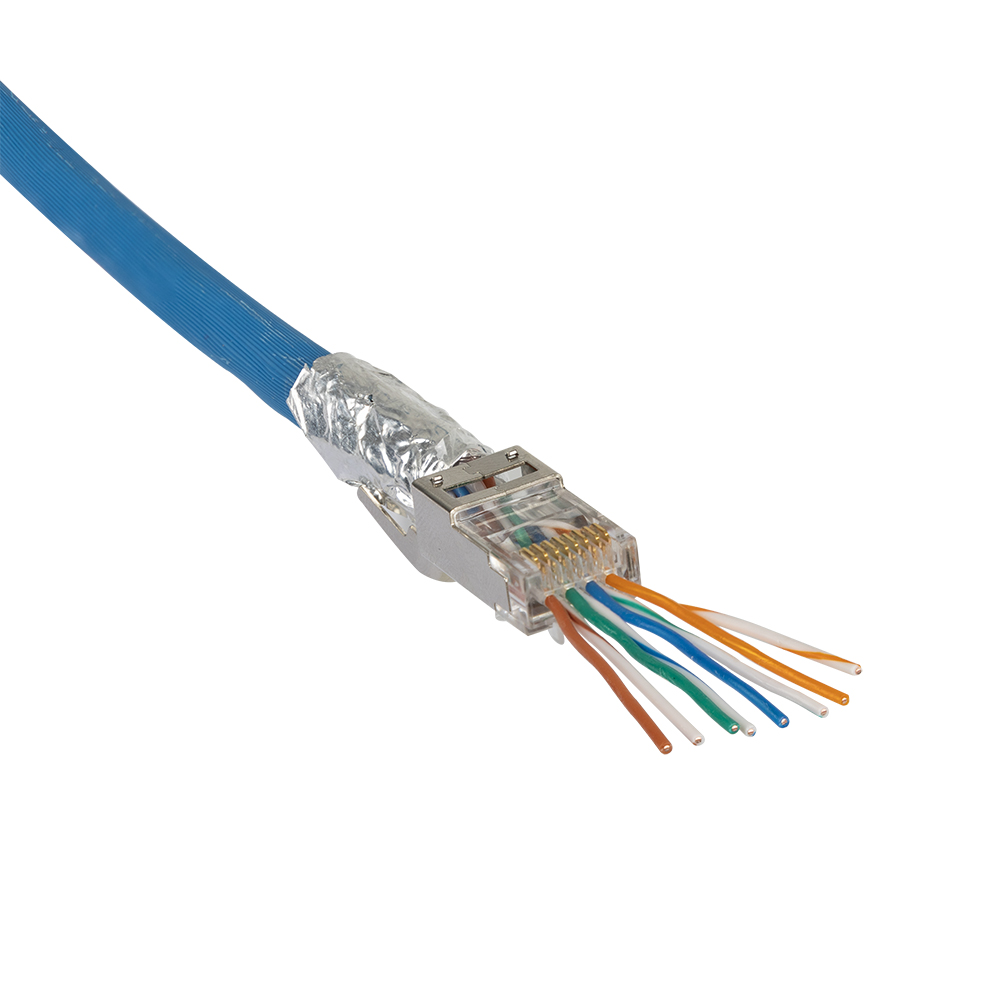

- Wires pass through connector for visual verification of correct order
- Fully compliant with PoE and PoE+ standards
- Requires pass-through type crimping tool (recommended Cat. No. VDV226-110)
- 8 position, 8 contact pass-through type data plugs for solid or stranded wire
- 50µ-inch gold plating on all contact surfaces for enhanced conductivity
Professional Installation Requirements

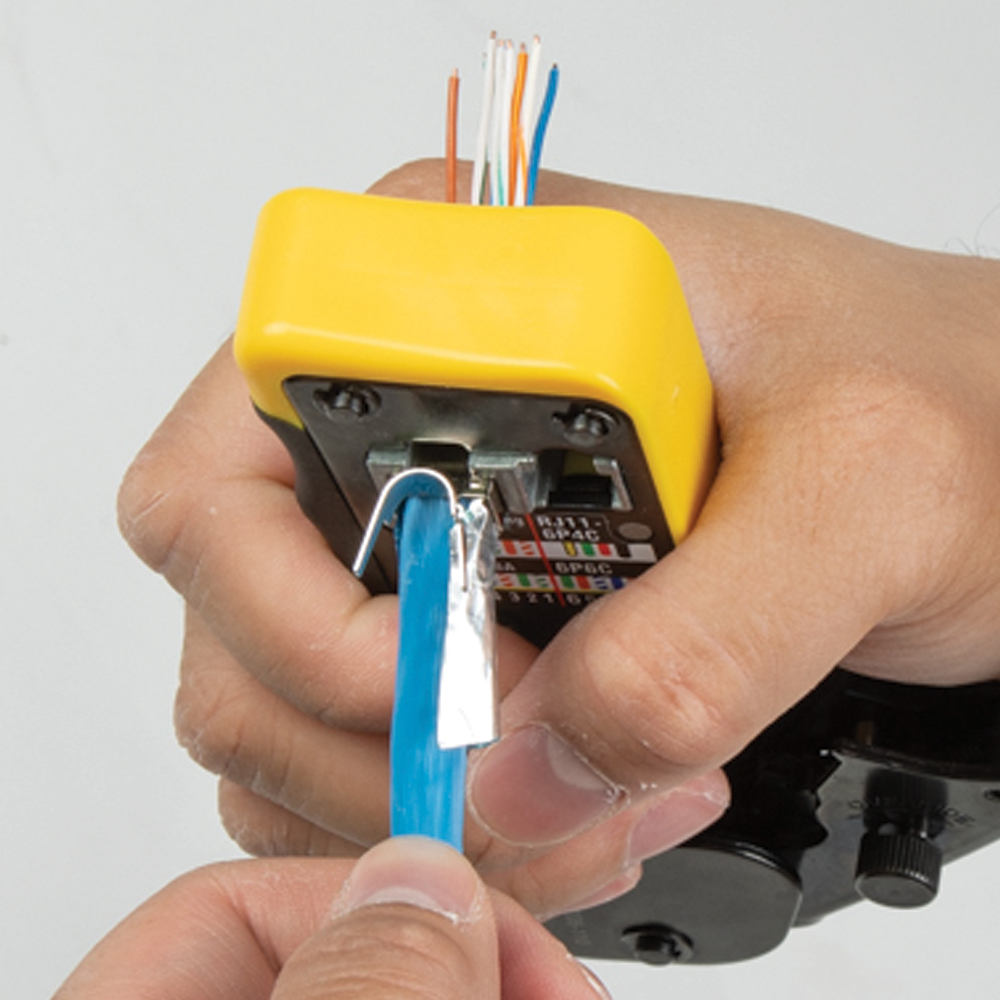

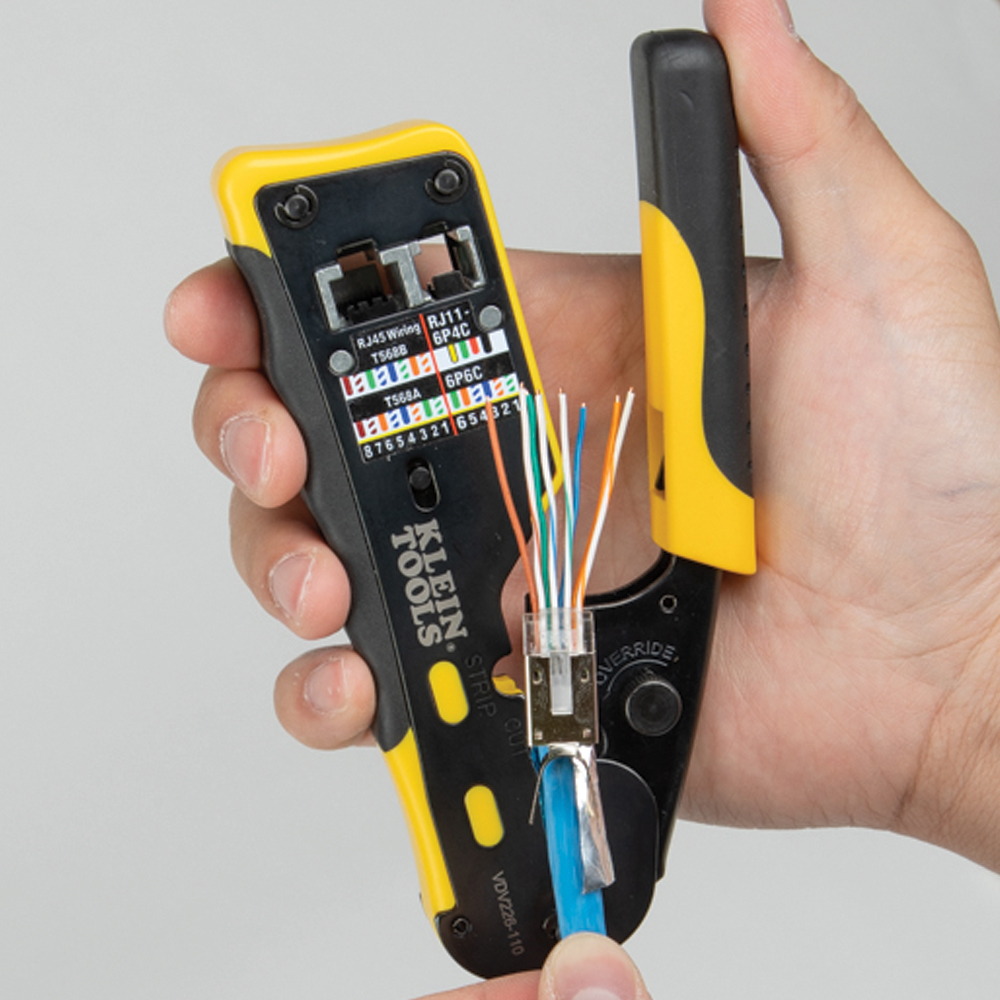

- Installation requires a pass-through type crimping tool such as Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110. Professional installation by a qualified technician is recommended for optimal performance and compliance.
Applications
- Data networking installations
- CAT6A and larger diameter CAT6 cable terminations
- Power Over Ethernet (PoE and PoE+) compliant network setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Pass-Thru design reduces material waste by trimming flush to cable end
- Durable gold-plated contacts ensure long-lasting connections reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Pass-Thru™ Modular Data Plug RJ45-CAT6A Shielded 100-Pack is available for immediate purchase, ideal for professional data and network cable installations.
