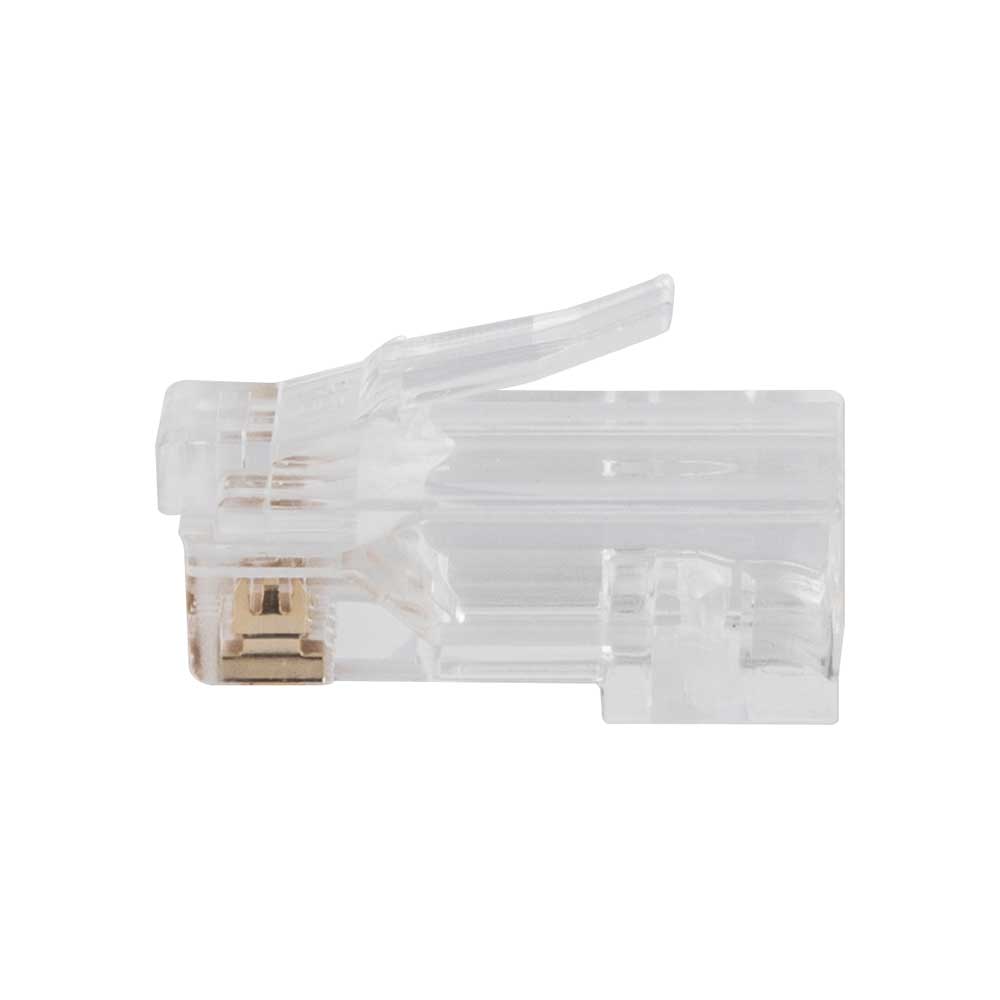

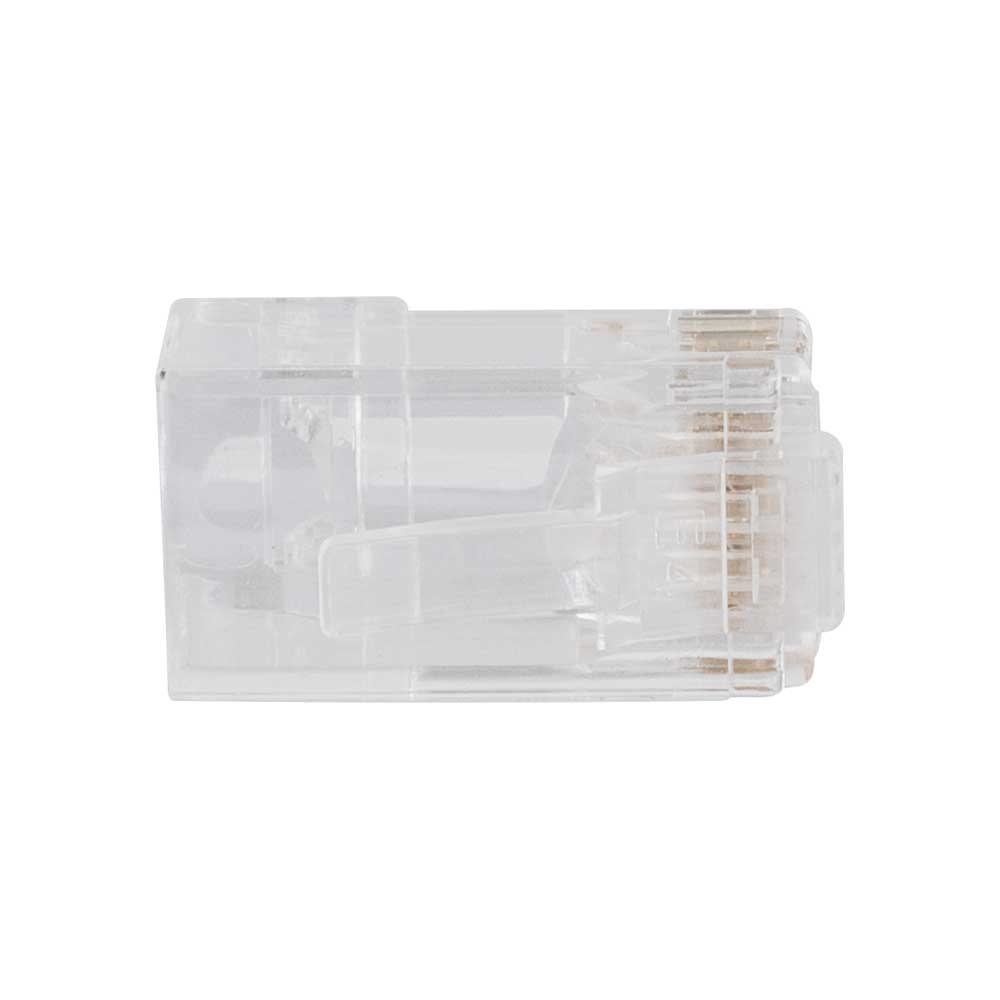

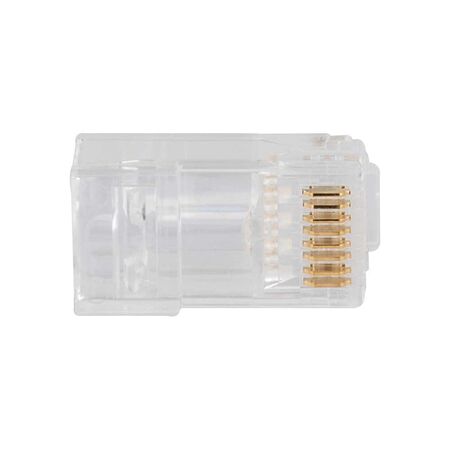

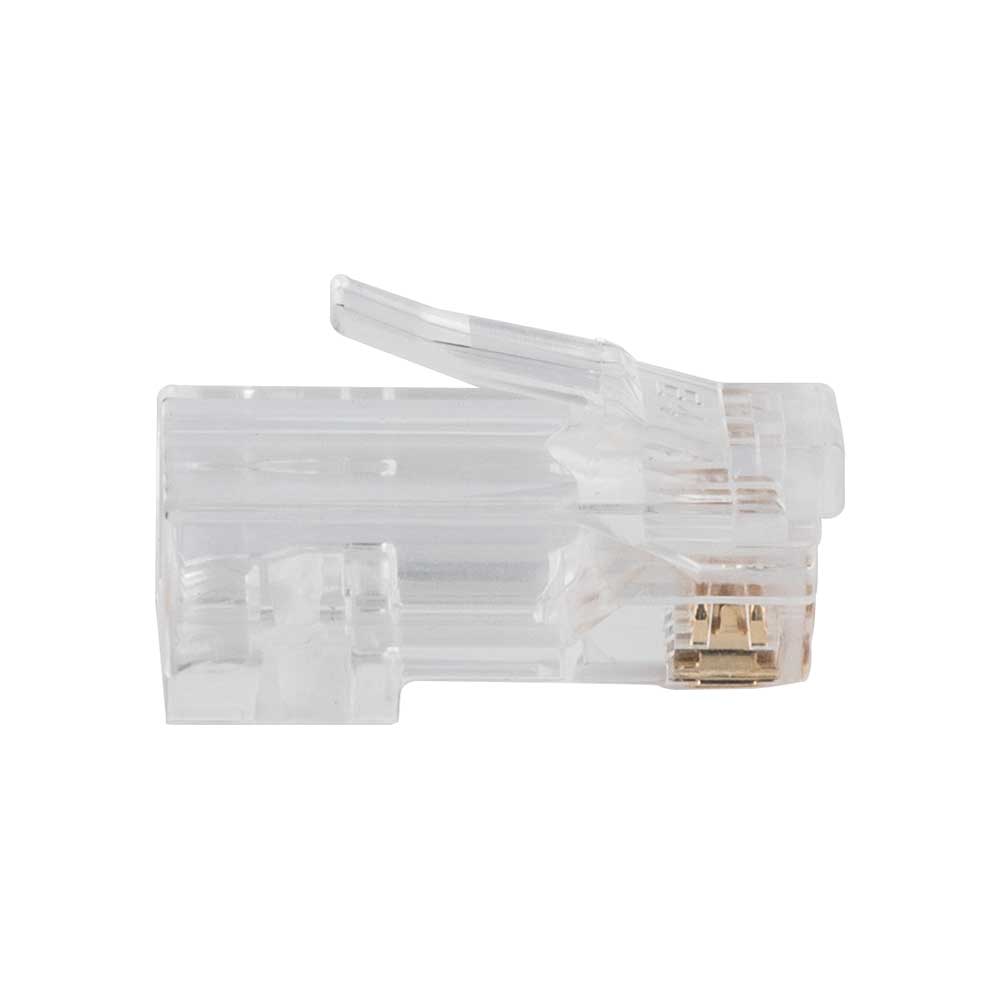

Pass-Thru™ Modular Data Plugs | RJ-45-CAT6A | 50-Pack | Gold-Plated Contacts | by Wattmaster
Pass-Thru™ Modular Data Plugs are designed for efficient data networking installations, featuring RJ-45-CAT6A compatibility and exclusive Pass-Thru™ technology for quick, reliable terminations. Ideal for professionals, these plugs ensure visual wire order verification and are compliant with Power Over Ethernet (PoE) standards, making them perfect for high-performance network setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pass-Thru™ Modular Data Plugs | RJ-45-CAT6A | 50-Pack | Gold-Plated Contacts | by Wattmaster
Brand: Wattmaster
SKU: A-VDV826-704
Alternatively Known As: RJ45 CAT6A Pass-Thru Connectors, Modular Data Plugs CAT6A, Pass-Thru RJ45 Connectors, CAT6A UTP Modular Plugs
Technical Specifications
- Connector Type: RJ45
- Category: CAT6A UTP and larger diameter CAT6
- Contacts: 8 position, 8 contact pass-through
- Material: PVC plastic housing with gold-plated contacts
- Max Cable Diameter: 1.01 mm (0.043 inches)

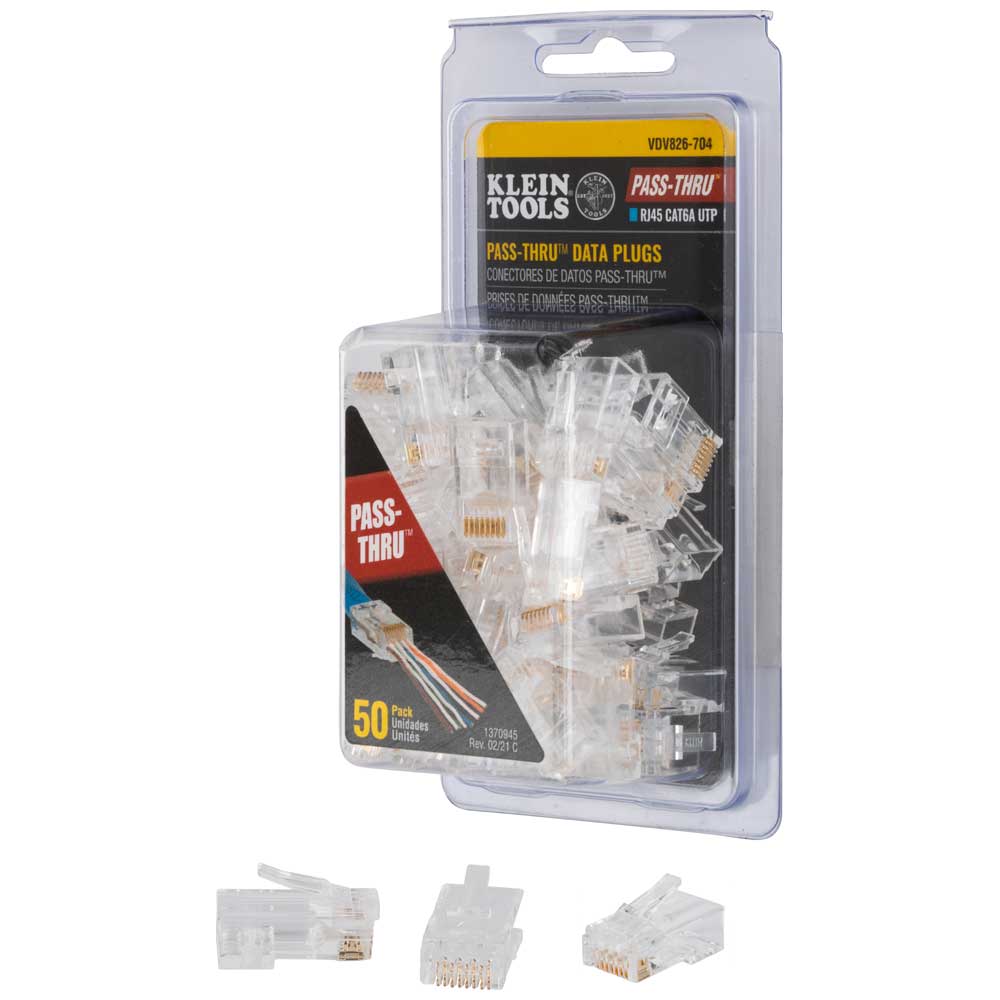

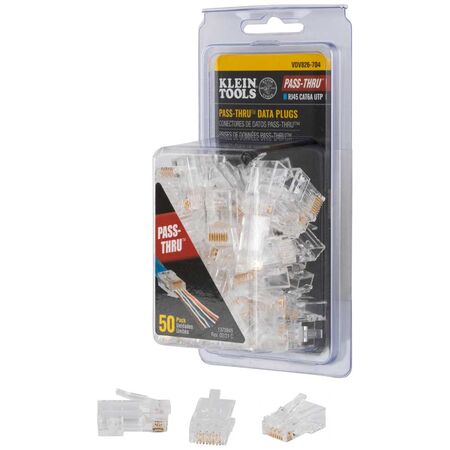

- Package Quantity: 50 plugs
- Weight: 136 grams (4.8 oz)
- Overall Length: 22 mm (0.875 inches)
- Overall Height: 12 mm (0.453 inches)
- Overall Width: 2 mm (0.094 inches)
- Compatible with solid and stranded conductor wire
- Meets TIA/EIA-568-B.2 Category 6A performance standards
- Compliant with Power Over Ethernet (PoE and PoE+) standards
- Dimensions (H x L x W): 12mm x 22mm x 2mm
- Weight: 0.136 kg
Key Features
- Exclusive Pass-Thru™ technology for fast, reliable connector installations
- Compatible with CAT6A and larger diameter/thicker jacket CAT6 cables

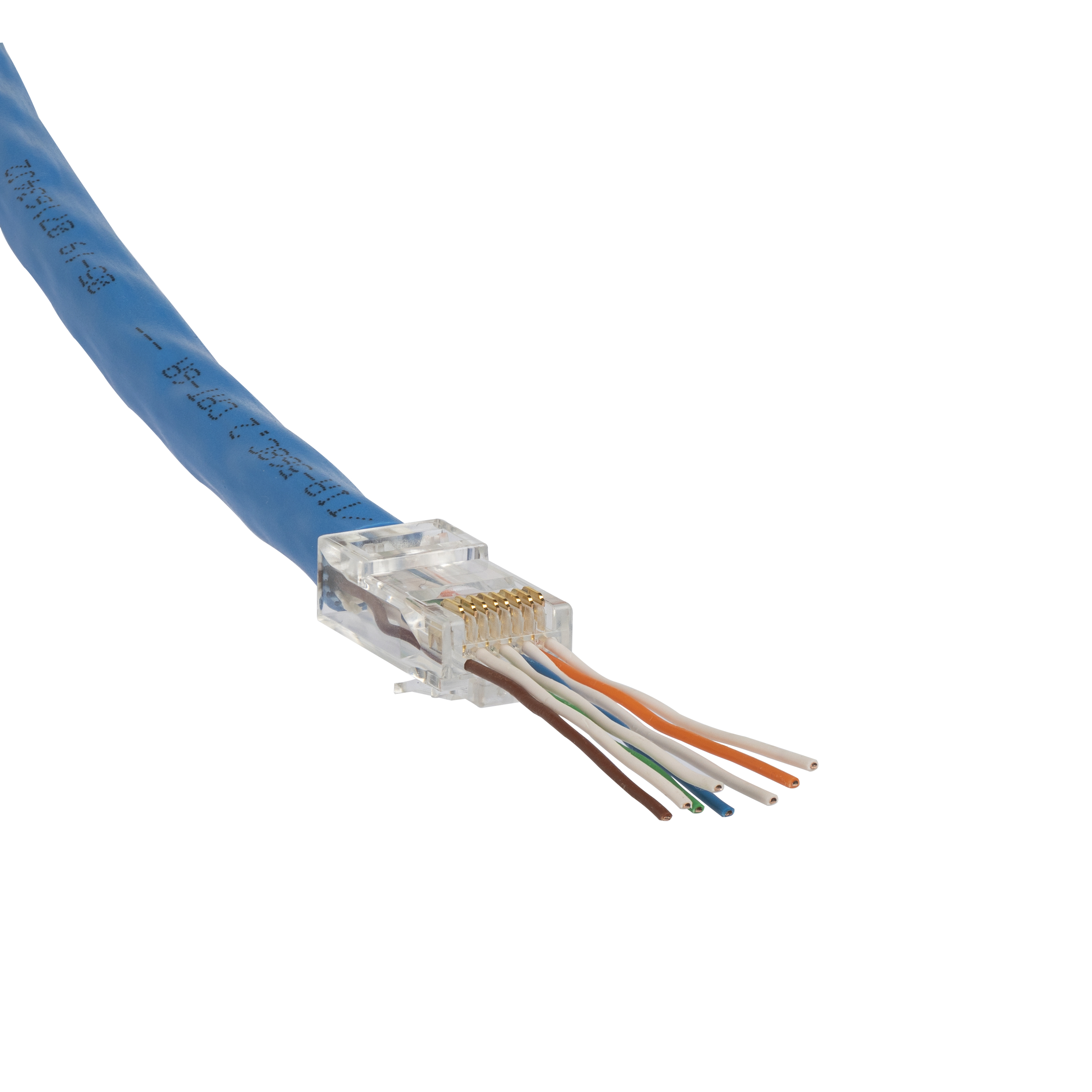

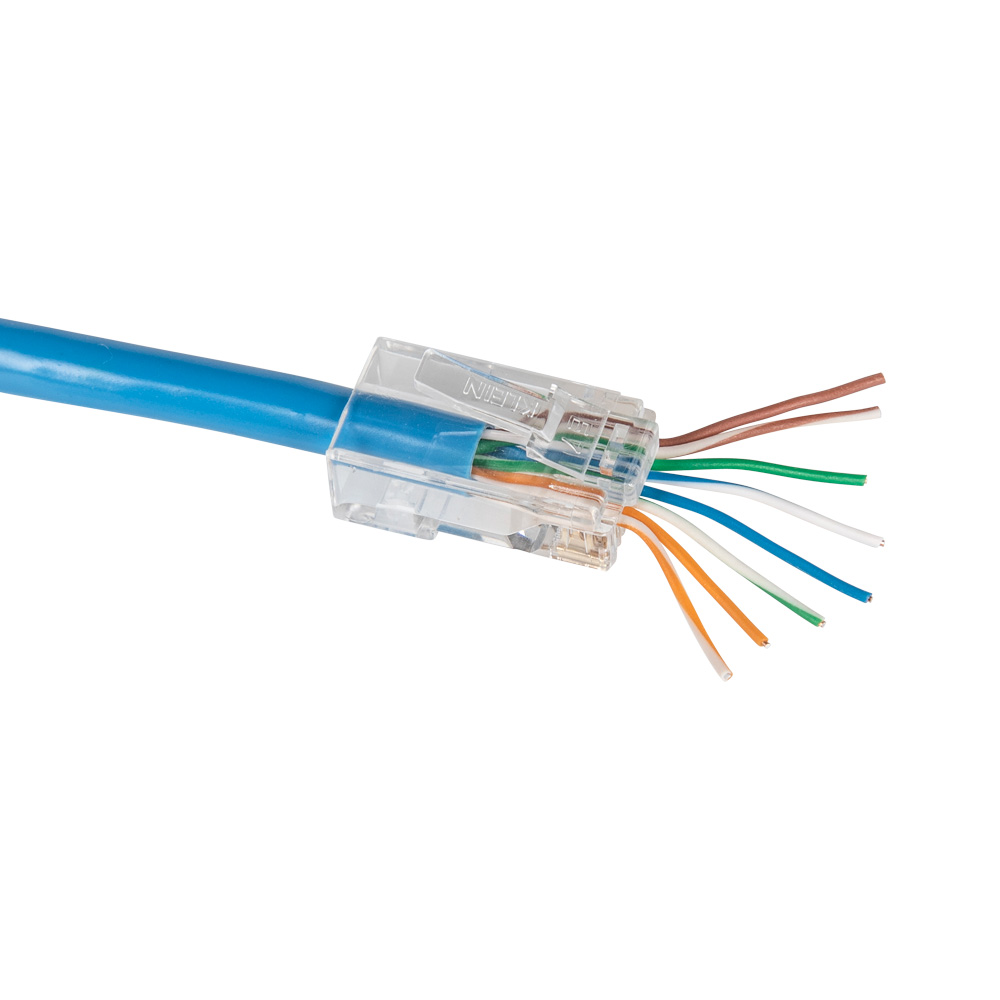

- Cable passes through connector for visual wire order verification
- Fully compliant with PoE and PoE+ standards

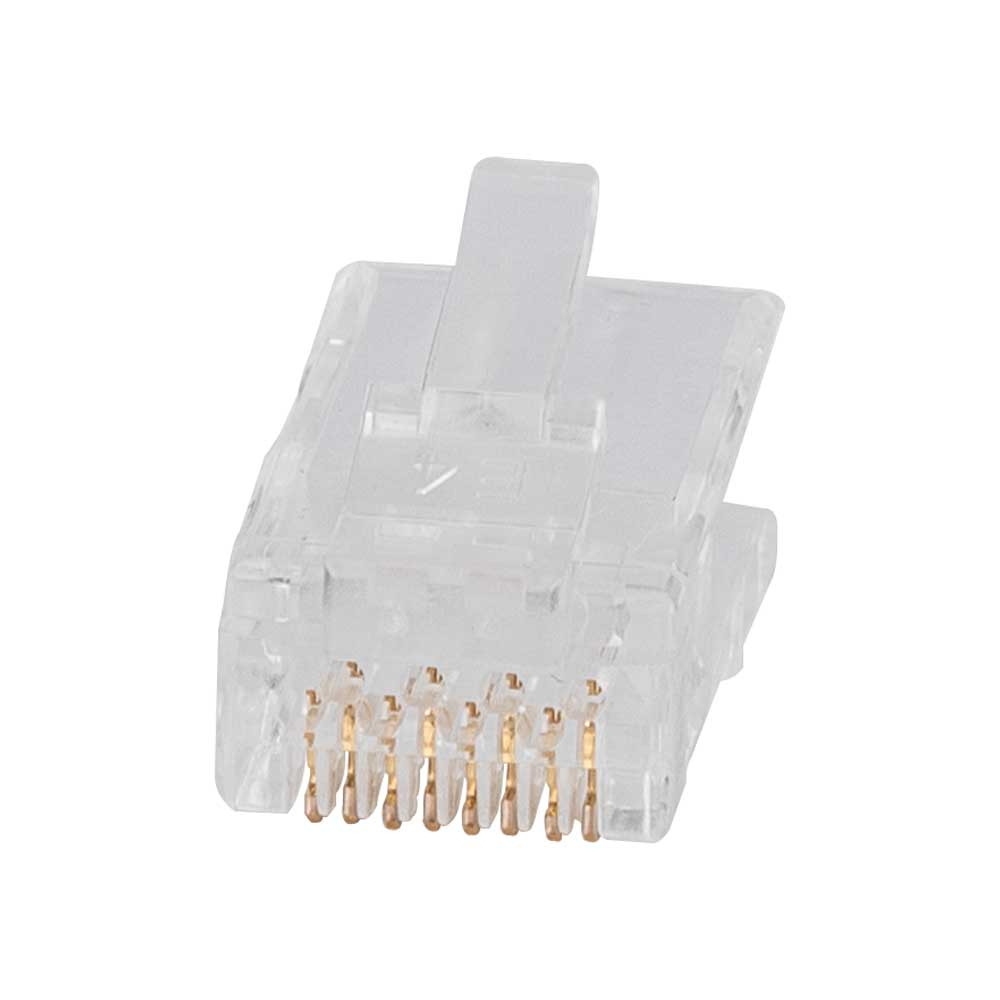

- 50µ-inch gold plating on all contact surfaces for enhanced conductivity
- 8 position, 8 contact pass-through type plugs for solid or stranded wire

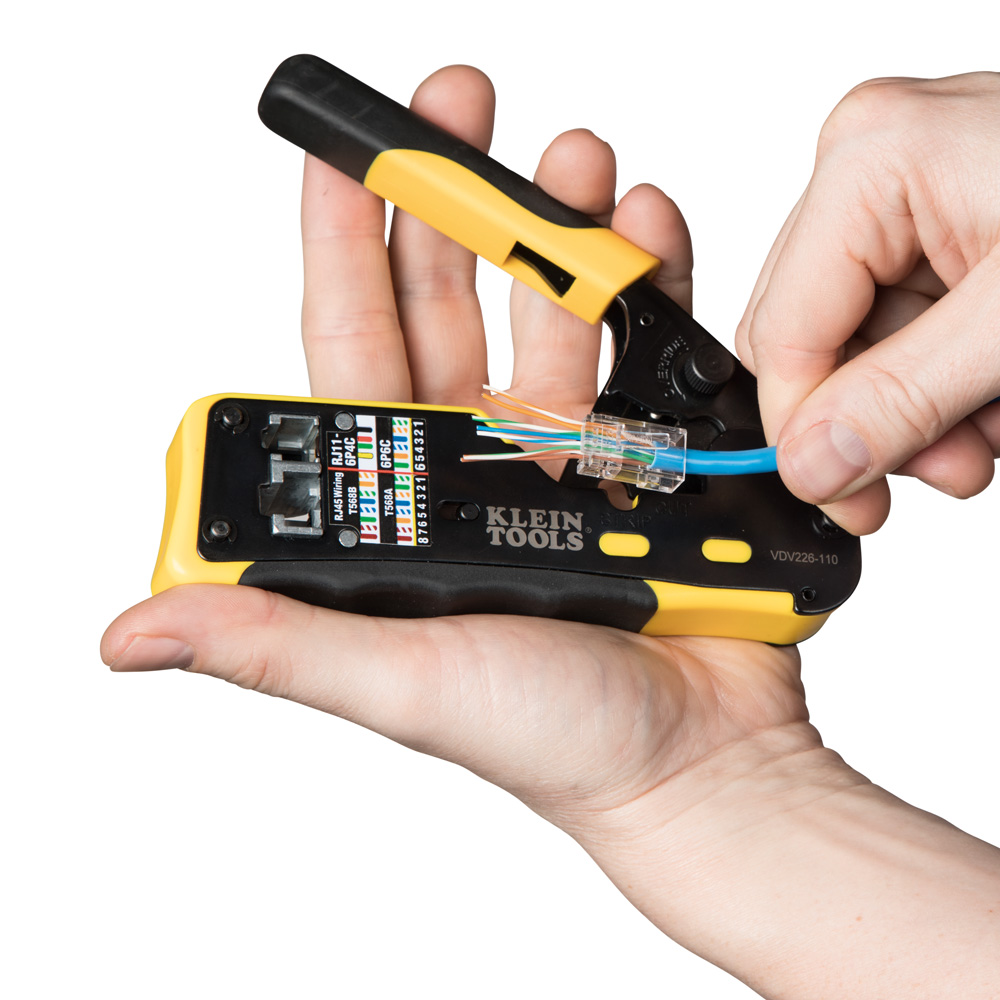

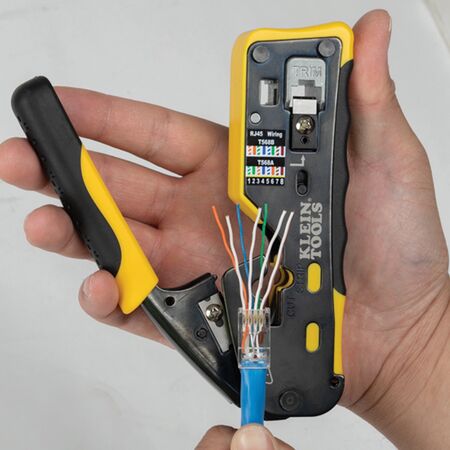

- Requires pass-through type crimping tool (recommended Klein Tools VDV226-110)
Professional Installation Requirements

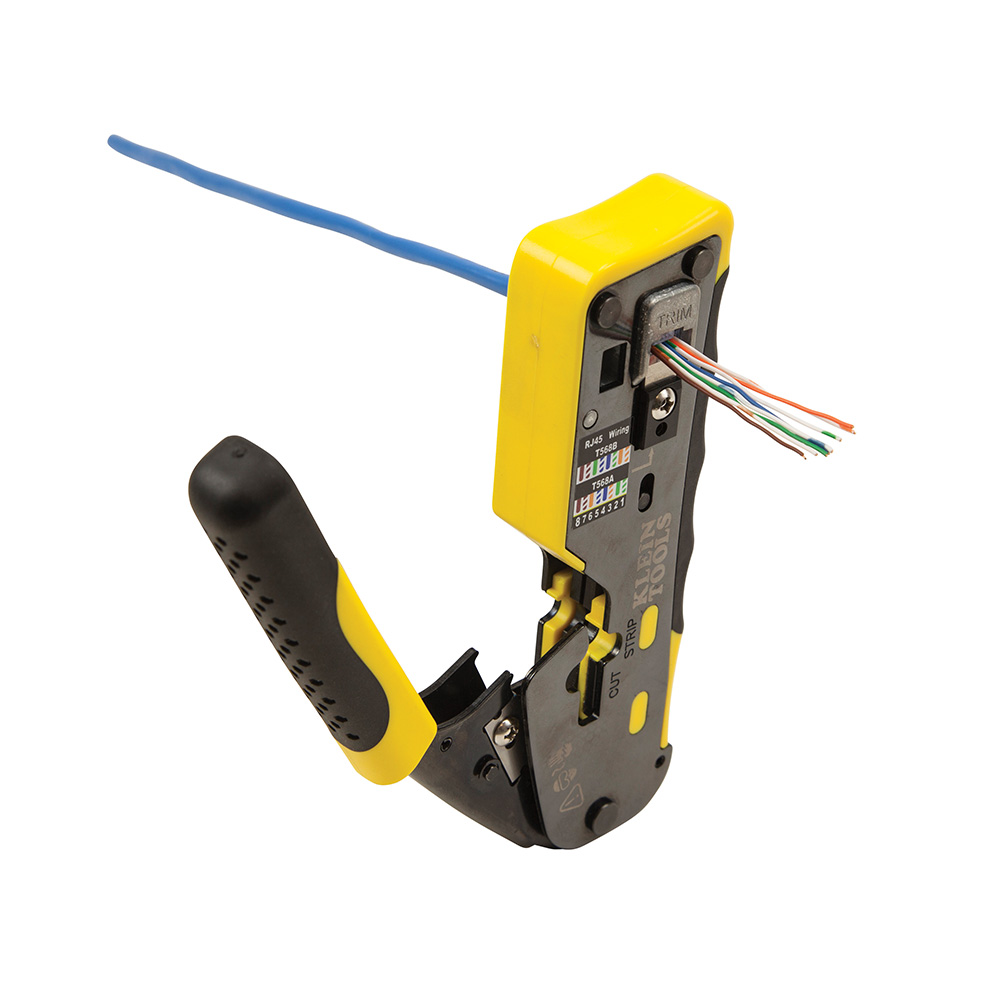

- Installation requires a pass-through type crimping tool such as Klein Tools Pass-Thru™ Modular Crimper VDV226-110. Professional installation by a qualified technician is recommended to ensure proper termination and network performance.
Applications
- Data networking installations
- CAT6A and larger diameter CAT6 cable terminations
- Power Over Ethernet (PoE and PoE+) compliant network setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Pass-Thru design reduces material waste by trimming flush to cable end
- Durable gold-plated contacts improve longevity and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Available for immediate purchase. Ideal for professional data network installations requiring high-performance CAT6A terminations.
