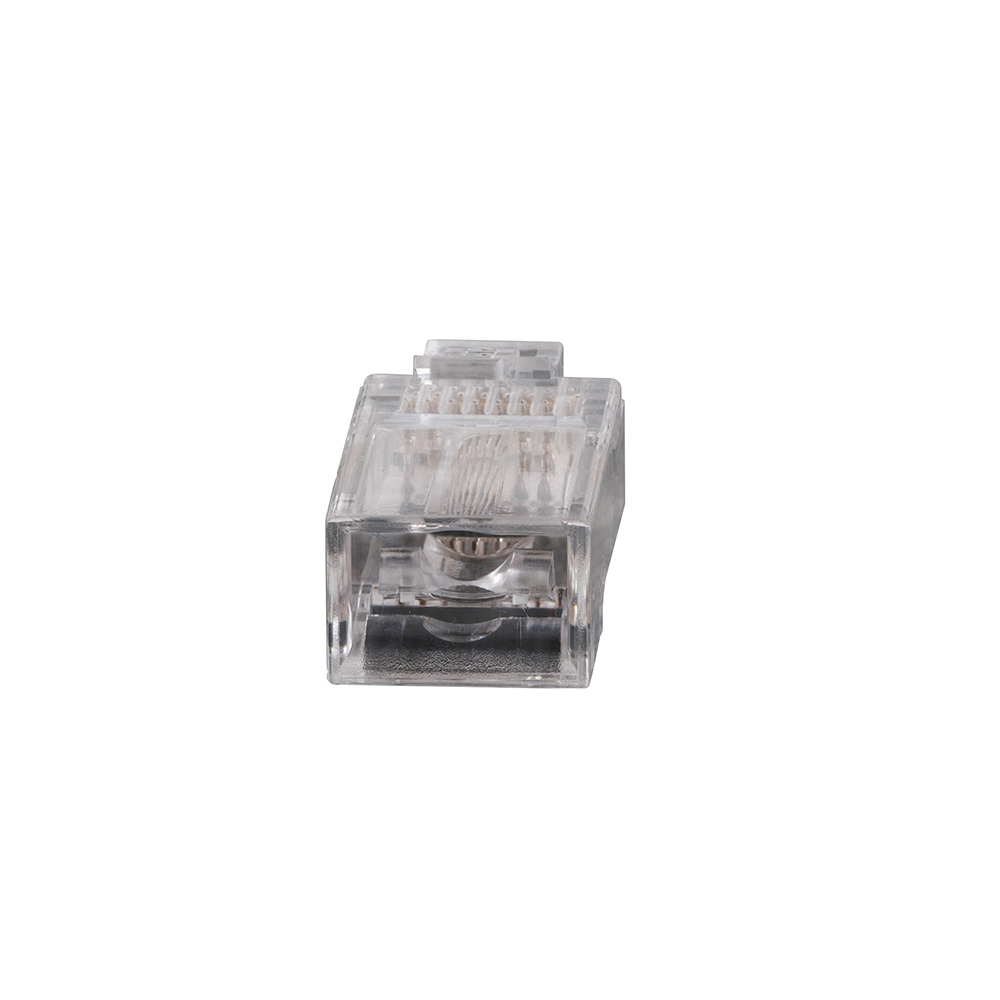

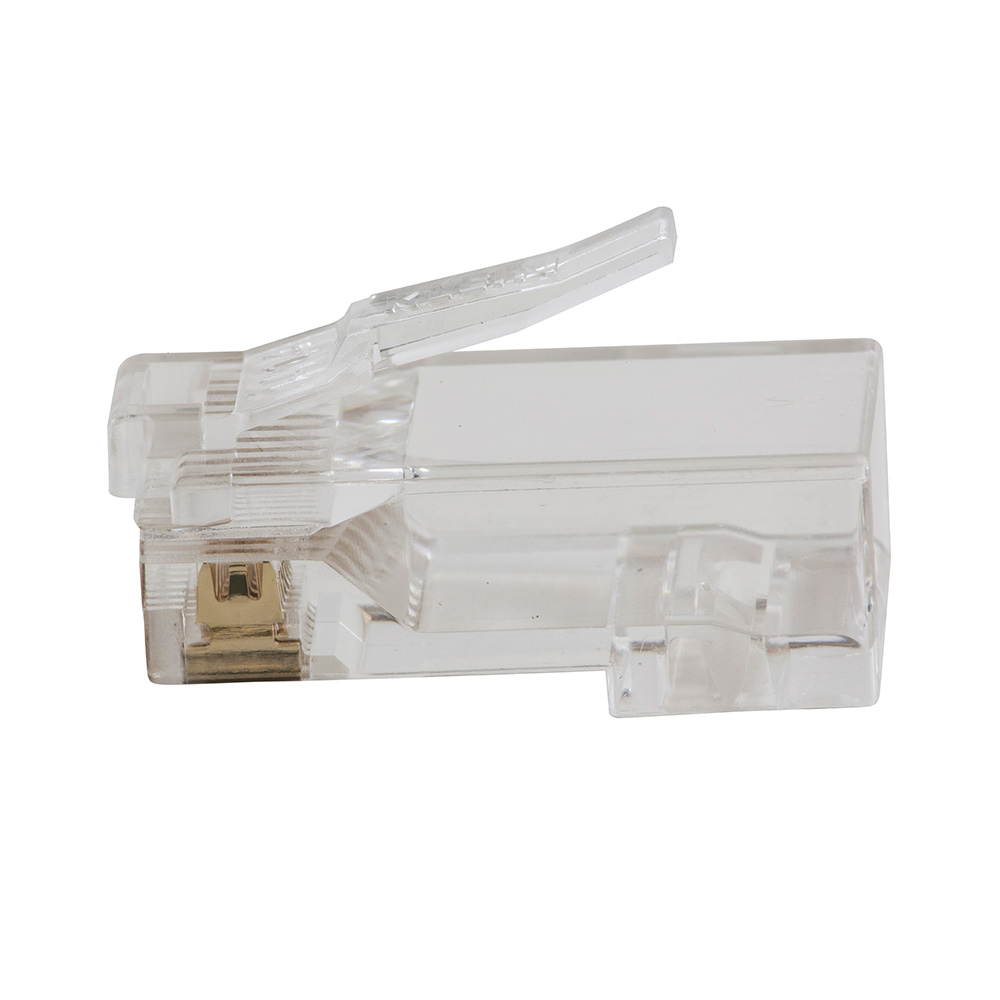

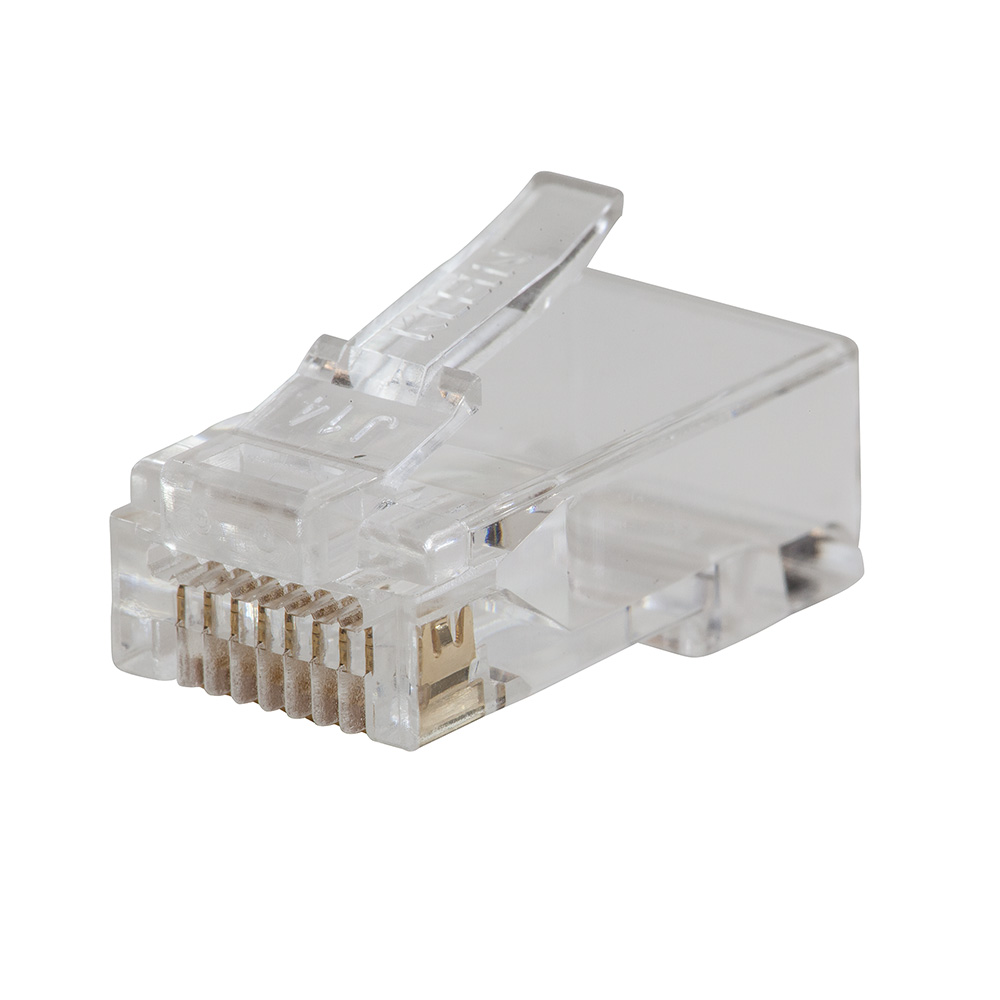

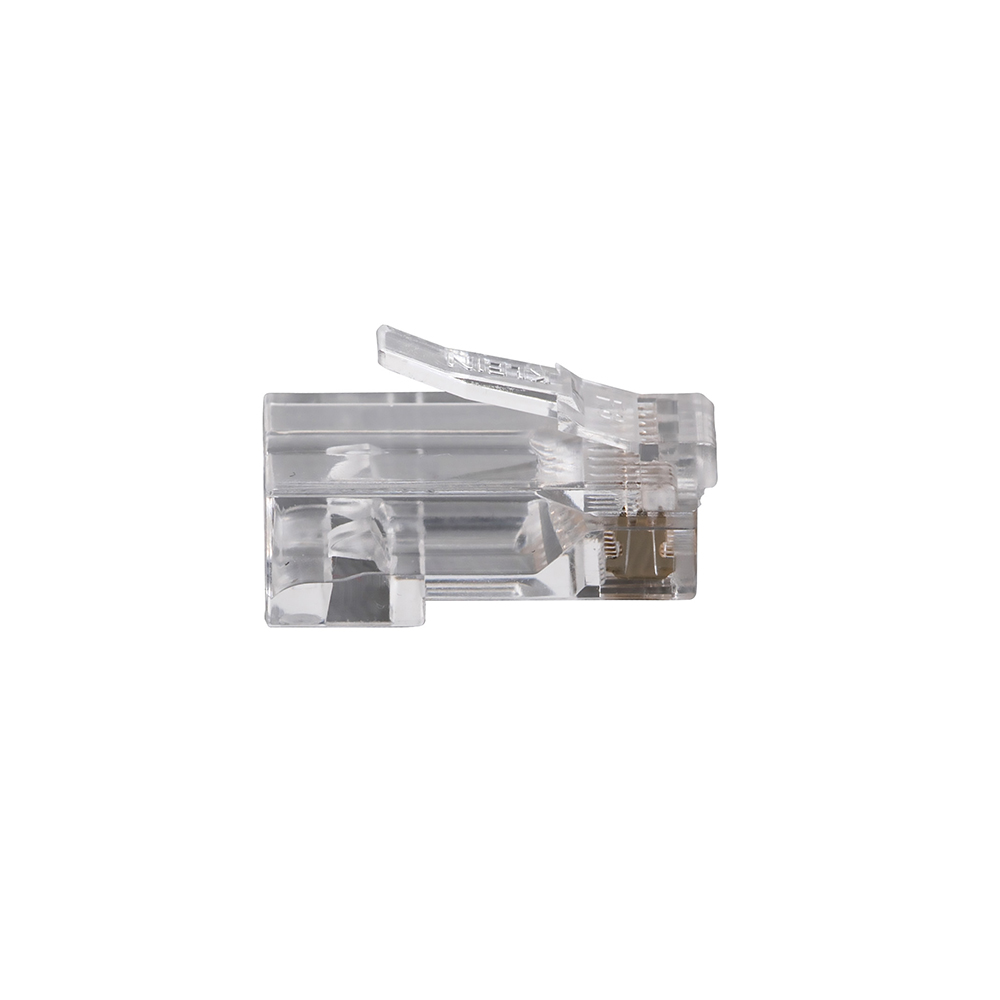

Pass-Thru™ Modular Data Plugs | RJ45-CAT5E | 8P8C Gold-Plated Contacts | 10-Pack | by Wattmaster
Pass-Thru™ Modular Data Plugs are designed for quick and reliable network installations, featuring RJ45-CAT5E connectors with 8P8C gold-plated contacts. Ideal for voice and data cable terminations, these plugs allow for easy wire verification, ensuring accurate installations. Perfect for professionals using compatible crimping tools, they comply with industry standards for safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pass-Thru™ Modular Data Plugs | RJ45-CAT5E | 8P8C Gold-Plated Contacts | 10-Pack | by Wattmaster
Brand: Wattmaster
SKU: A-VDV826-728
Alternatively Known As: RJ45 CAT5e Pass-Thru Connectors, Modular Data Plugs, Pass-Through RJ45 Connectors, CAT5e Network Plugs
Technical Specifications
- Connector Type: RJ45
- Cable Type: CAT5e
- Position & Contacts: 8P 8C
- Material: PVC plastic housing with gold-plated contacts
- Max Cable Diameter: 1.01 mm (0.04 inch)
- Package Quantity: 10 plugs
- Overall Length: 22 mm
- Overall Height: 12 mm
- Overall Width: 2 mm
- Weight: 28 g per 10-pack
- Pass-through technology for easy wire verification
- Dimensions (H x L x W): 12mm x 22mm x 2mm
- Weight: 0.1 kg
Key Features
- Exclusive Pass-Thru™ connectors for fast, reliable installations

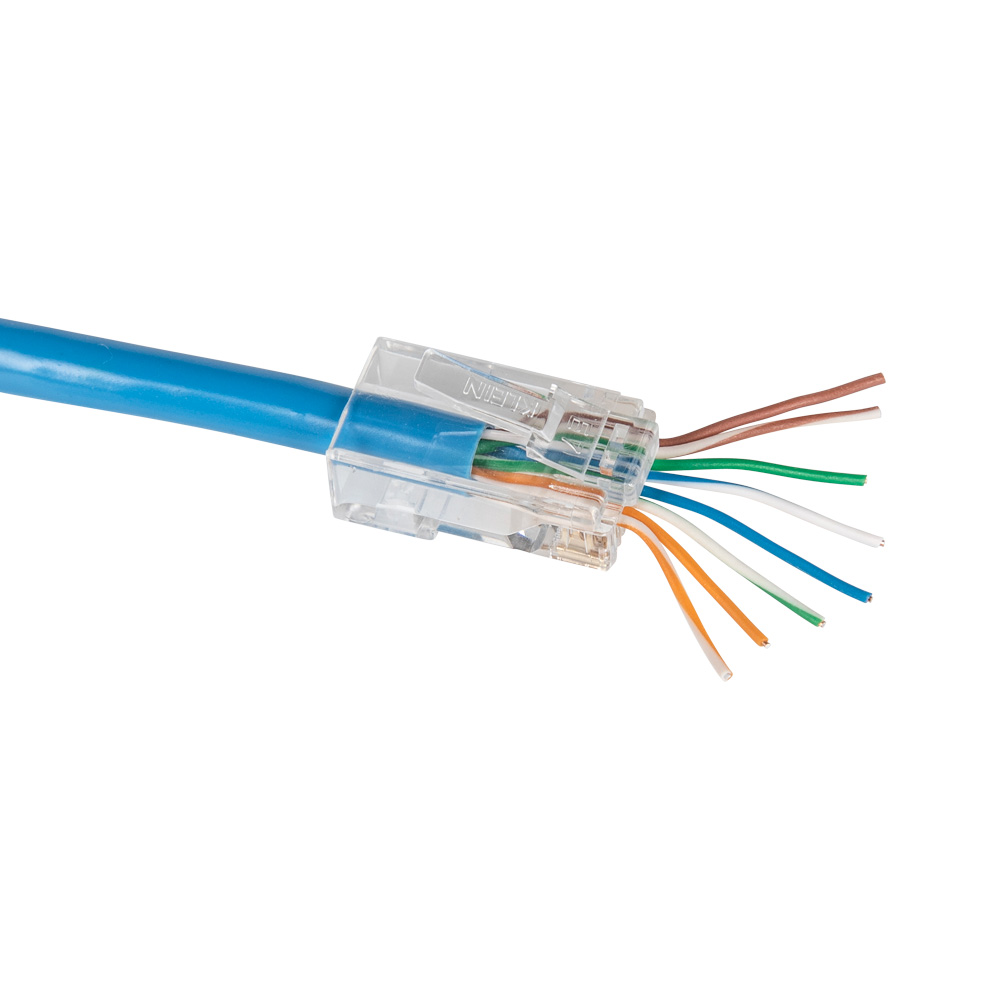

- CAT5e cable passes through connector for visual wire order verification

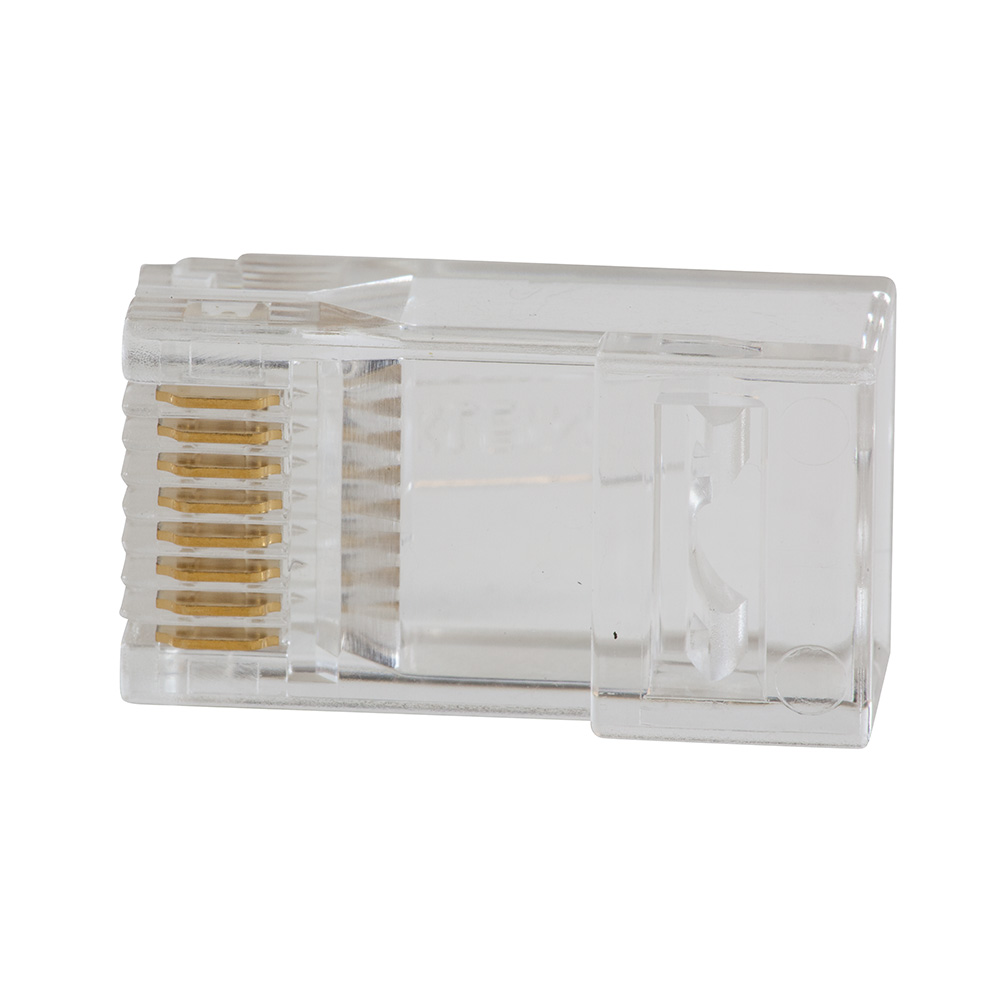

- 50 µ-inch minimum gold plating on all contact surfaces for durability
- Category 5e performance per EIA/TIA B.2. and RoHS compliant
- Compatible with solid or stranded cable
- 8 position, 8 contact pass-through style data plug
Professional Installation Requirements
- Recommended to be installed by professionals or trained technicians using compatible crimping tools such as Klein Tools Pass-Thru™ Modular Crimper VDV226-110 for optimal performance.
Applications
- Voice and data cable terminations
- Network installations requiring CAT5e connectivity
- Use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110 for efficient connector installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Durable gold-plated contacts extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Pass-Thru™ Modular Data Plugs RJ45-CAT5E 10-Pack is available for immediate purchase, ideal for network and data communication installations.
