Pass-Thru™ Modular Data Plugs | RJ45-CAT5e | 50µ Gold Plating | 200-Pack | by Wattmaster
Pass-Thru™ Modular Data Plugs are designed for fast and reliable network installations, featuring RJ45-CAT5e connectors with a unique pass-through design for visual wire order verification. Ideal for voice and data cable terminations, these plugs ensure durability with 50µ gold plating on all contact surfaces, making them perfect for both solid and stranded cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pass-Thru™ Modular Data Plugs | RJ45-CAT5e | 50µ Gold Plating | 200-Pack | by Wattmaster
Brand: Wattmaster
SKU: A-VDV826-762
Alternatively Known As: RJ45 CAT5e Pass-Thru Connectors, Modular Data Plugs, Pass-Through RJ45 Connectors, CAT5e Modular Plugs
Technical Specifications
- Connector Type: RJ45
- Cable Type: CAT5e
- Position & Contacts: 8P 8C
- Material: PVC plastic housing with gold-plated contacts
- Overall Length: 22 mm
- Overall Height: 12 mm
- Overall Width: 2 mm
- Max Cable Diameter: 1.01 mm

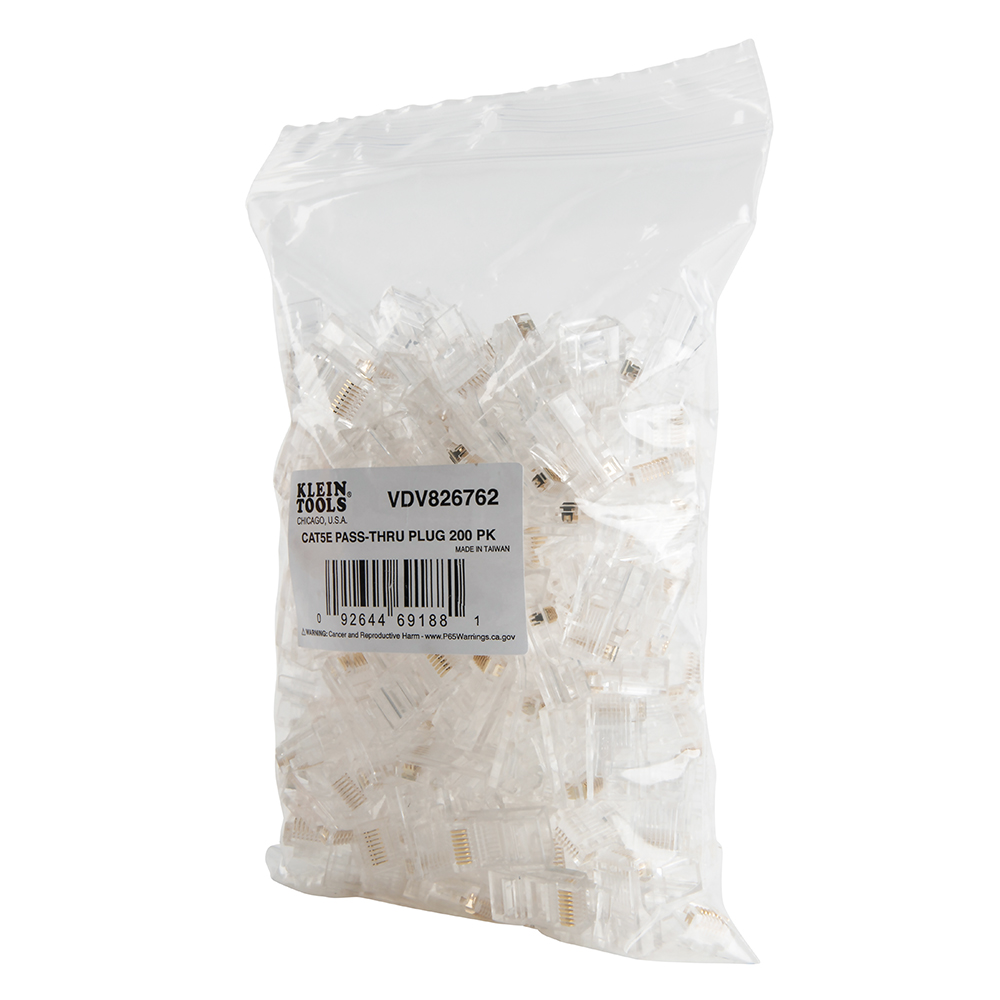

- Package Quantity: 200 plugs
- Weight: 278 g per pack
- Dimensions (H x L x W): 12mm x 22mm x 2mm
- Weight: 0.278 kg
Key Features
- Exclusive Pass-Thru™ connectors for fast, reliable installations

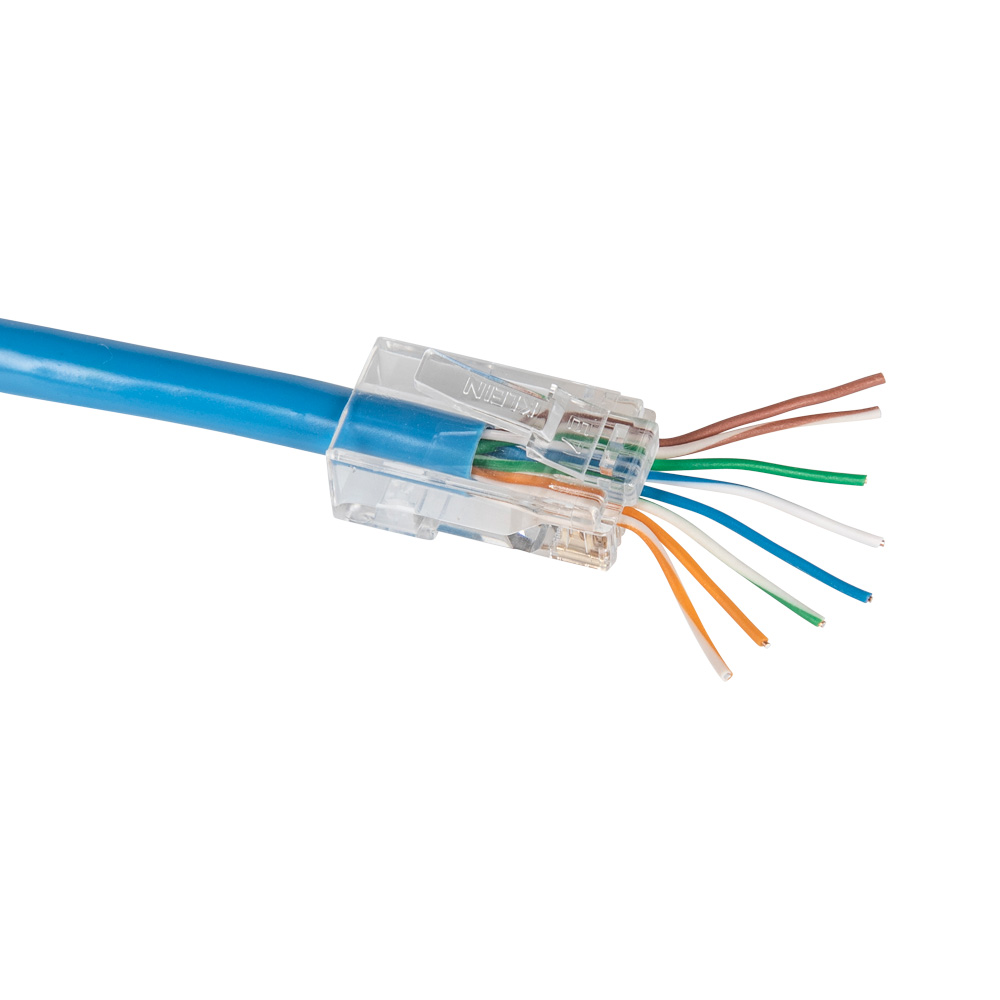

- CAT5e cable passes through connector for visual wire order verification

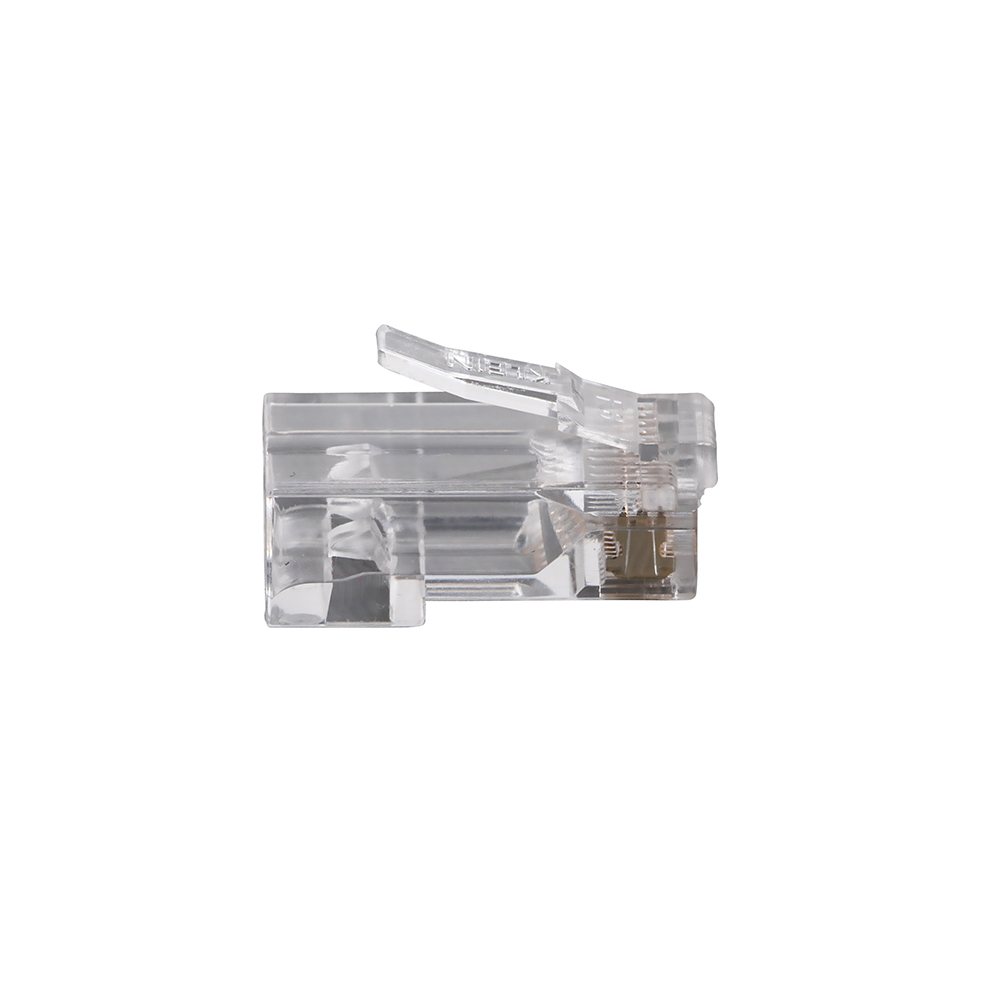

- 50 µ-inch minimum gold plating on all contact surfaces for durability
- Category 5e performance per EIA/TIA B.2. and RoHS compliant
- Compatible with solid or stranded cable

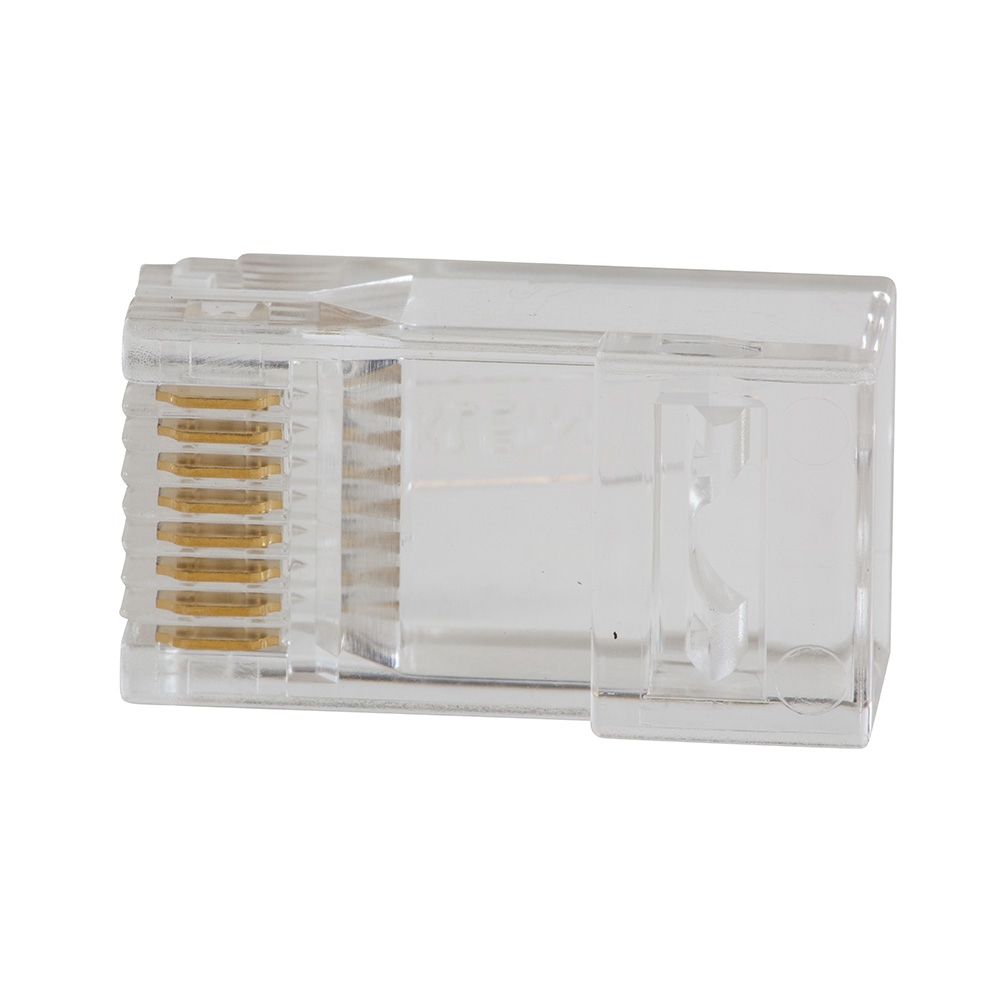

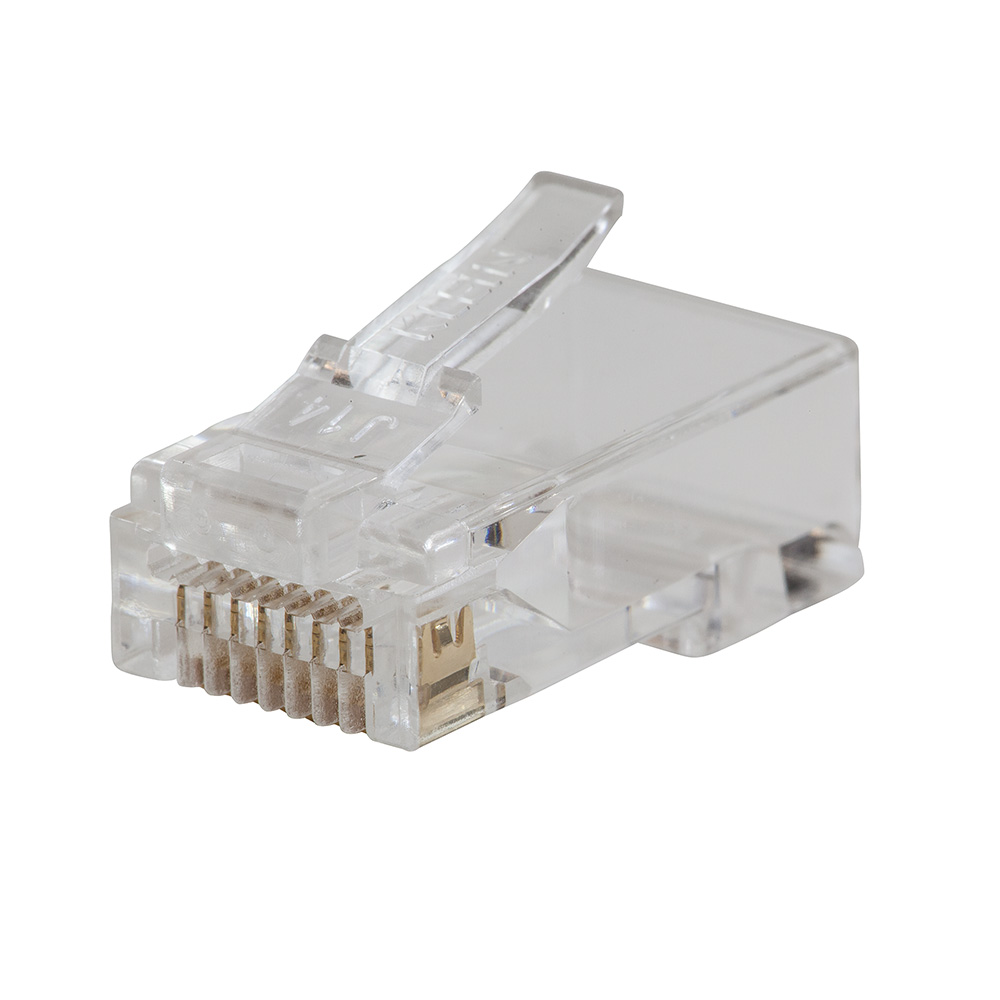

- 8 position, 8 contact pass-through style data plug
- Max cable diameter 1.01 mm

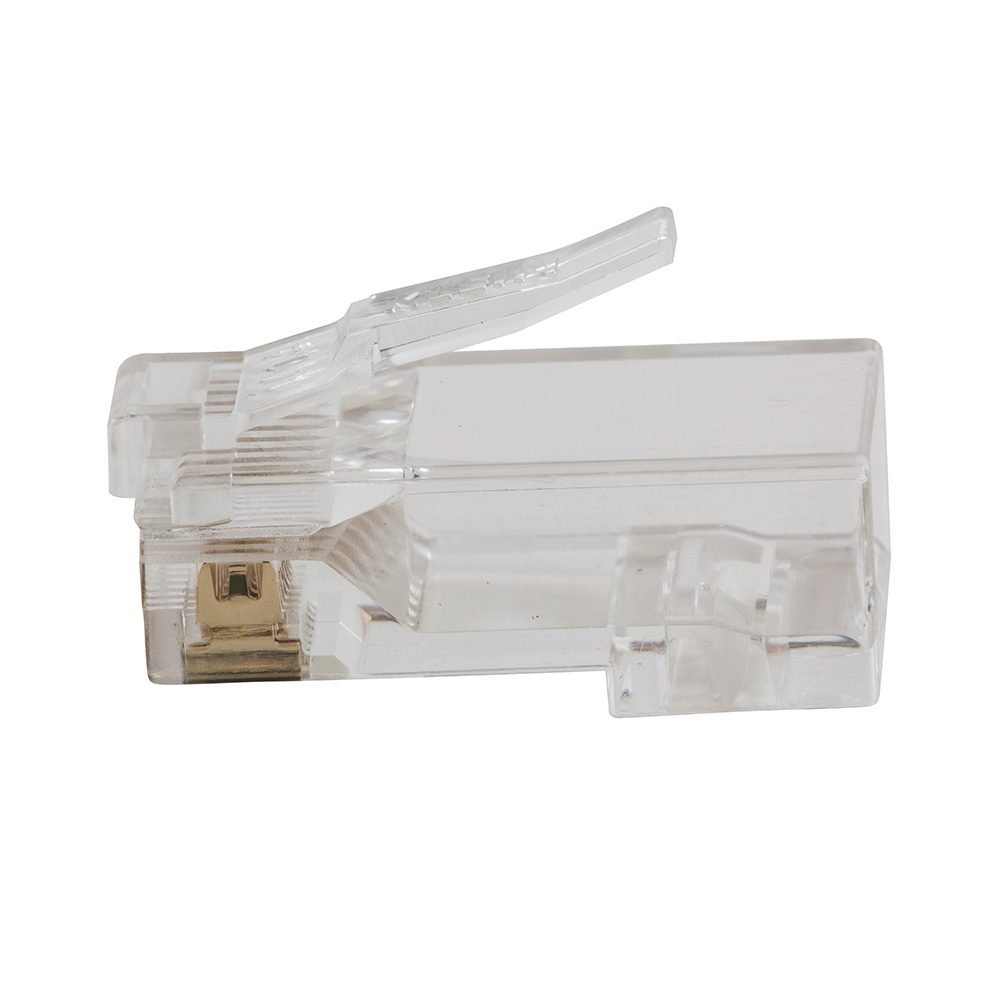

- Clear PVC plastic housing with gold-plated contacts
Professional Installation Requirements

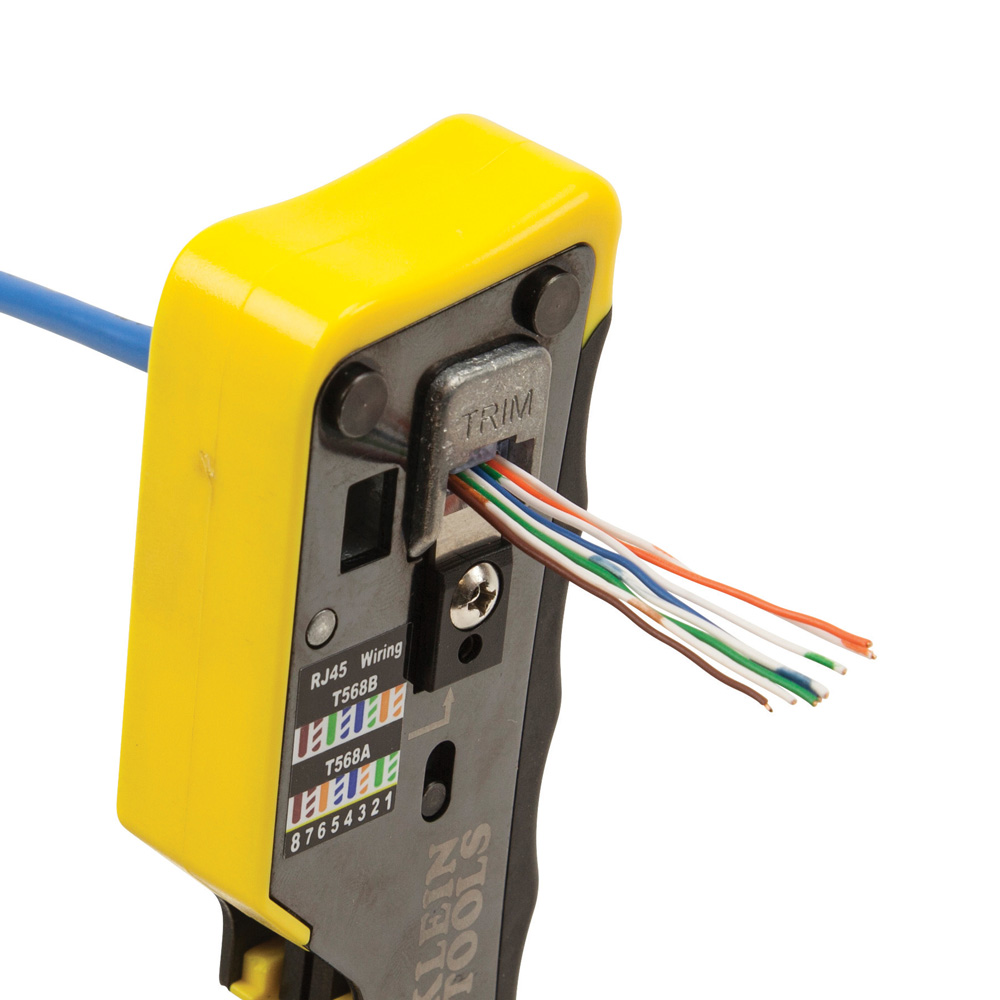

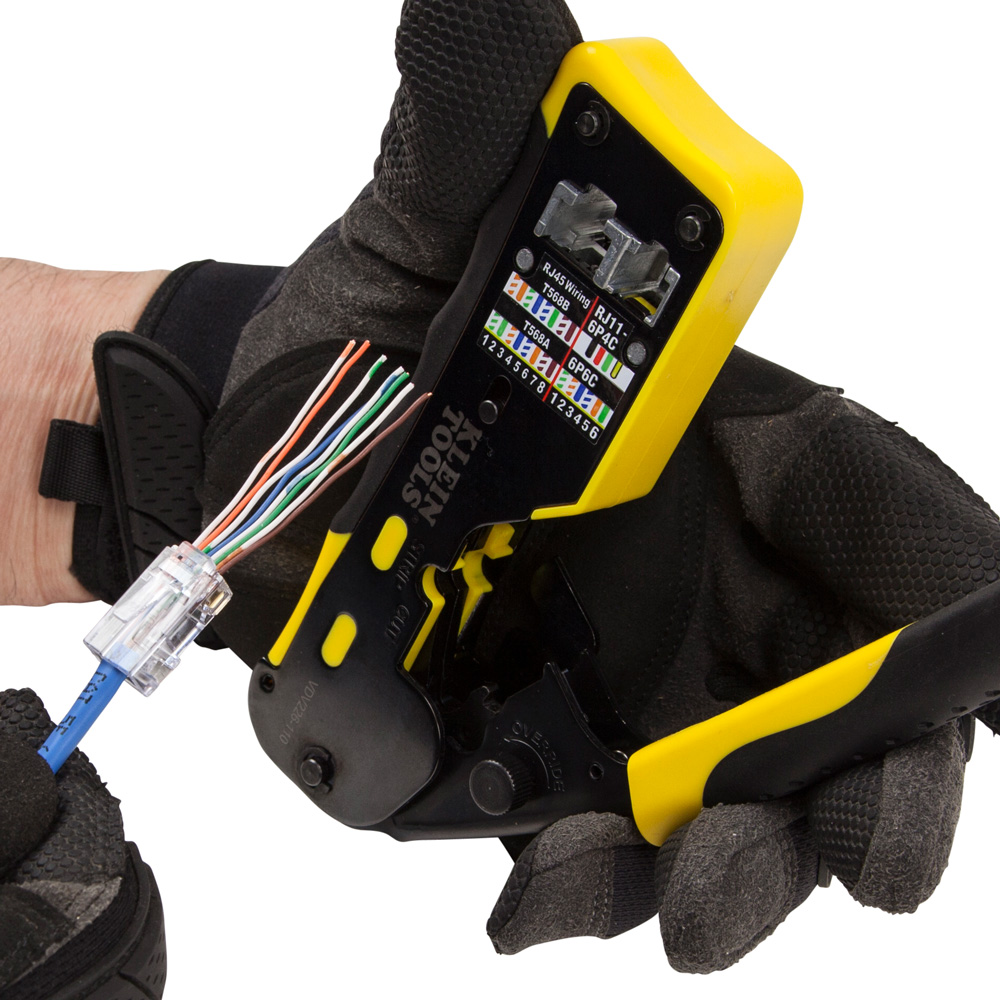

- Installation should be performed by qualified technicians using compatible crimping tools such as the Klein Tools Pass-Thru™ Modular Crimper VDV226-110 for optimal performance.
Applications
- Voice and data cable terminations
- Network installations requiring CAT5e connectivity
- Use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110 for efficient terminations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Pass-through design reduces material waste during installation
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for details.
Available Now
The Wattmaster Pass-Thru™ Modular Data Plugs RJ45-CAT5e 200-Pack is available for immediate purchase, ideal for professional network and data cable installations.
