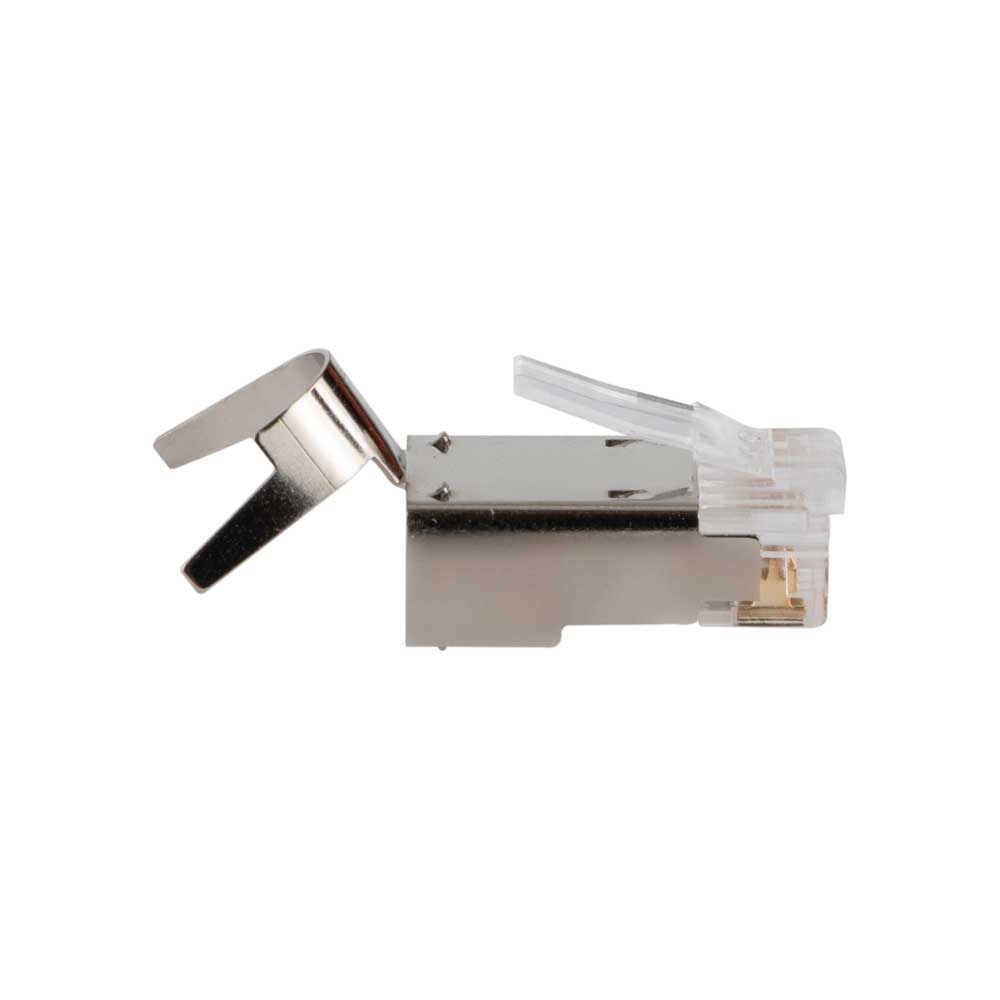

Pass-Thru™ Modular Data Plugs | RJ45-CAT6A Shielded | 50µ-inch Gold Plating | Fast Connector Installations | by Wattmaster
Pass-Thru™ Modular Data Plugs are designed for high-performance data and voice communication networks, featuring RJ45-CAT6A shielded connectors with exclusive Pass-Thru™ technology for quick and reliable installations. With 50µ-inch gold plating on all contact surfaces, these plugs ensure enhanced conductivity and compliance with PoE standards, making them ideal for both commercial and residential structured cabling projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pass-Thru™ Modular Data Plugs | RJ45-CAT6A Shielded | 50µ-inch Gold Plating | Fast Connector Installations | by Wattmaster
Brand: Wattmaster
SKU: A-VDV826-705
Alternatively Known As: RJ45 CAT6A Pass-Thru Connectors, Shielded Modular Data Plugs, CAT6A RJ45 Connectors, Pass-Thru RJ45 Plugs
Technical Specifications
- Connector Type: RJ45
- Cable Type: CAT6A Shielded (STP) and larger diameter CAT6
- Contacts: 8 position, 8 contact pass-through
- Material: PVC plastic housing with gold-plated contacts
- Max Cable Diameter: 1.1 mm (0.043 inches)
- Overall Length: 20 mm (0.8 inches)
- Overall Height: 15 mm (0.6 inches)
- Overall Width: 10 mm (0.4 inches)

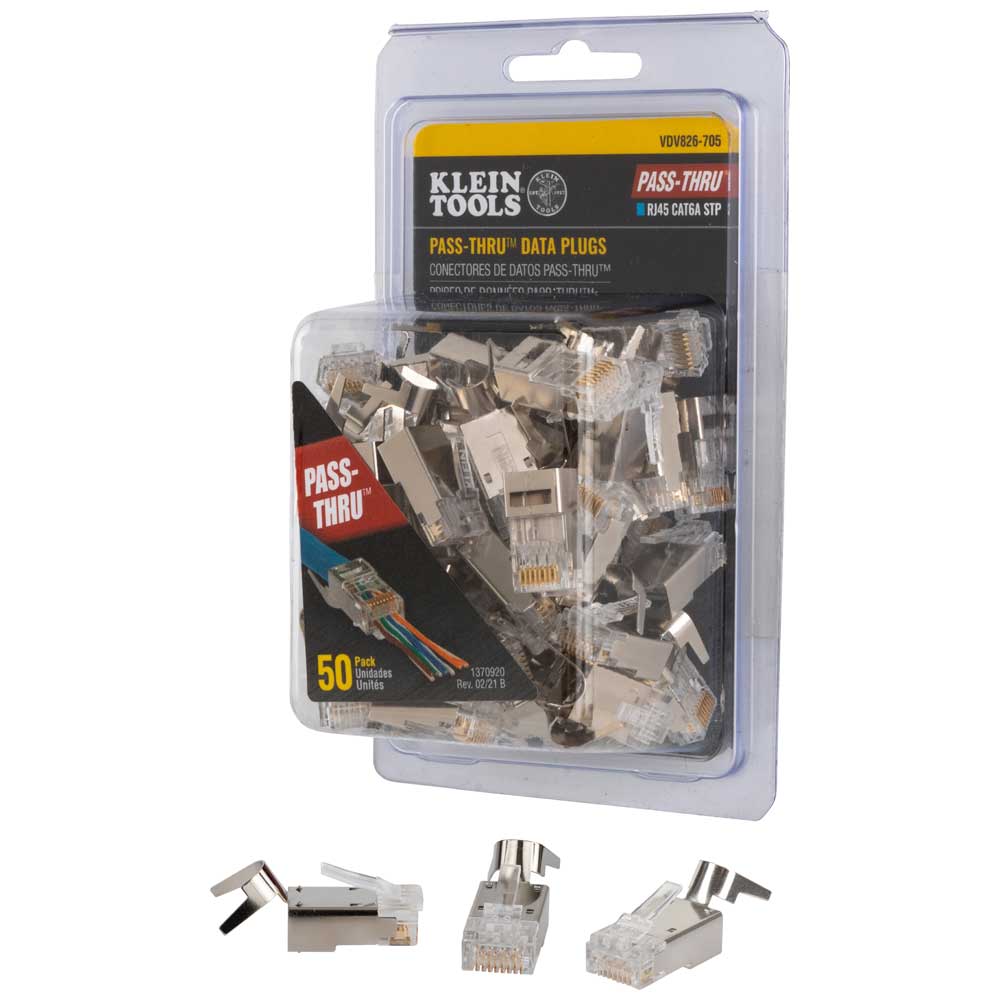

- Package Quantity: 50 plugs
- Compatible with solid and stranded conductor wire
- Meets Category 6A performance per TIA/EIA-568-B.2
- Dimensions (H x L x W): 15mm x 20mm x 10mm
- Weight: 0.171 kg
Key Features
- Exclusive Pass-Thru™ technology for fast, reliable connector installations
- Compatible with CAT6A shielded cables and larger diameter CAT6 cables
- 50µ-inch gold plating on all contact surfaces for enhanced conductivity
- 8 position, 8 contact pass-through type plugs suitable for solid or stranded wire
- Ensures correct wire order visually for consistent and secure terminations
- Fully compliant with PoE and PoE+ standards

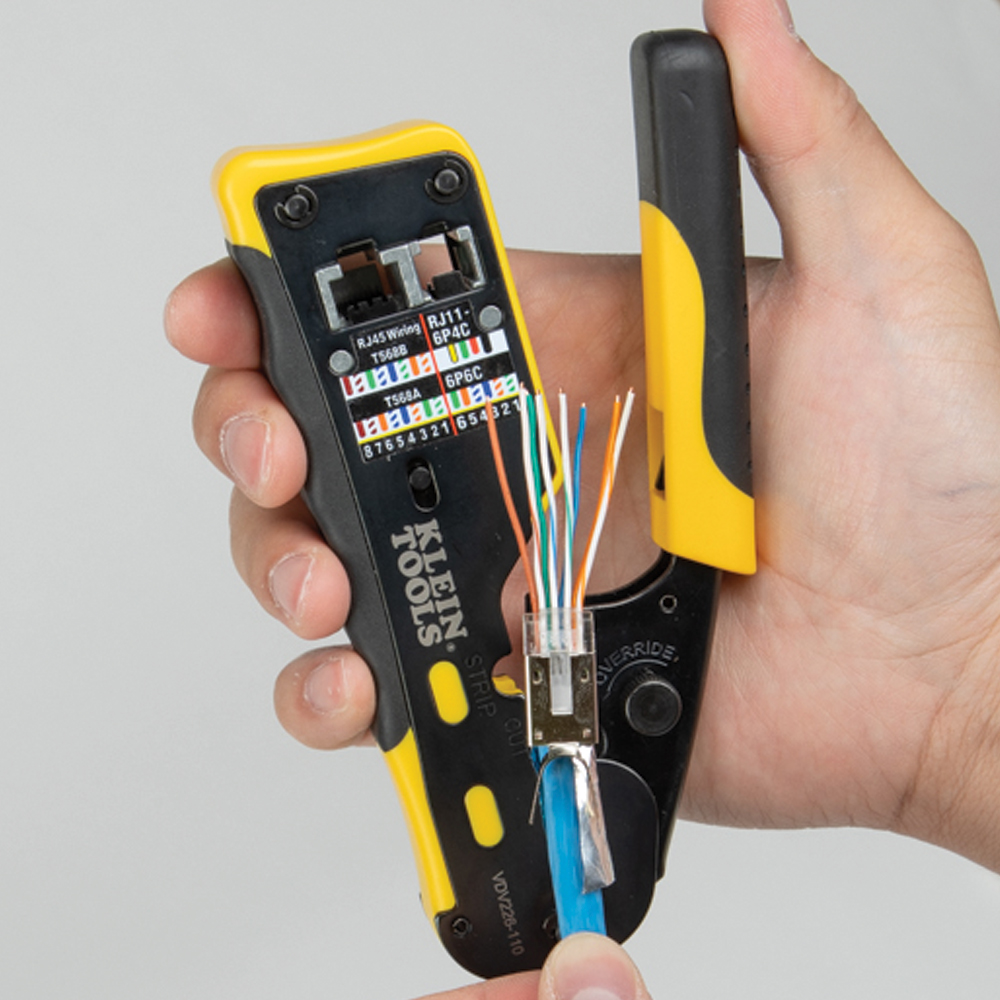

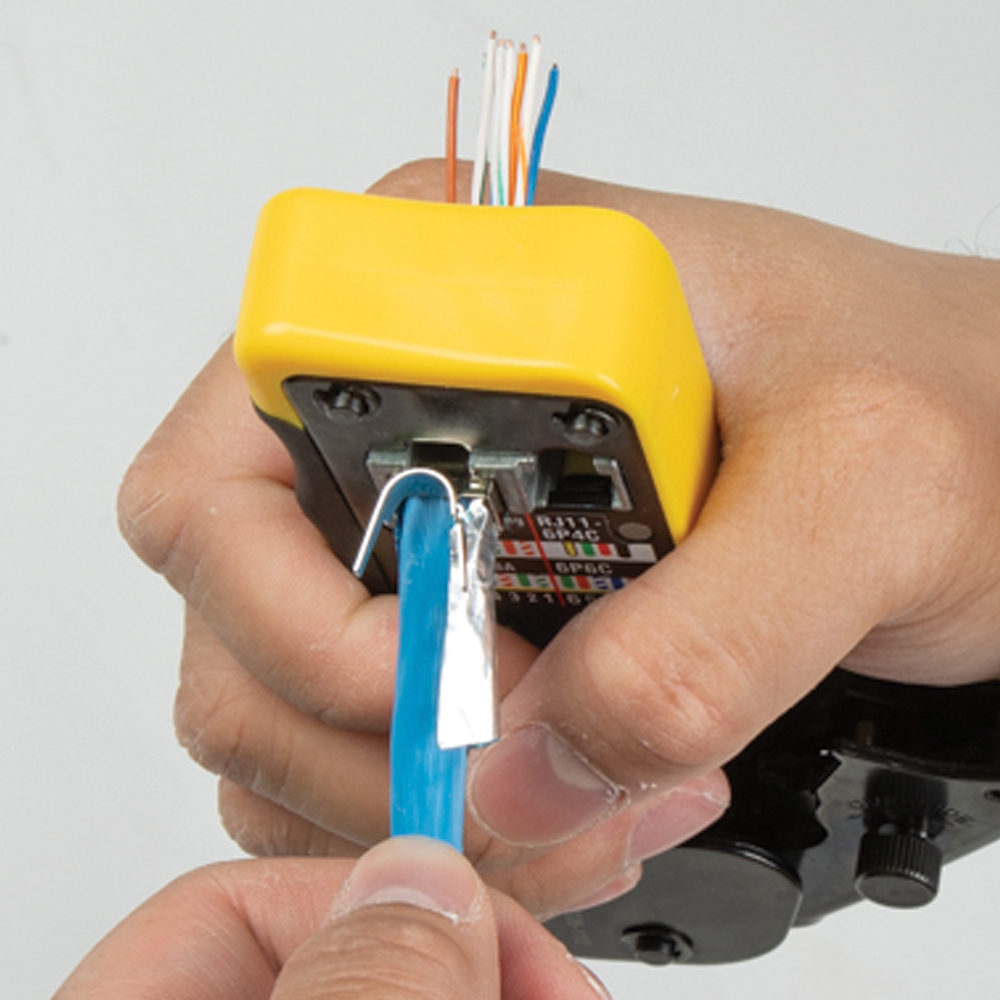

- Requires pass-through type crimping tool (recommended Klein Tools VDV226-110)
Professional Installation Requirements
- Installation should be performed by qualified technicians using the recommended pass-through crimping tool (Klein Tools VDV226-110) to ensure proper termination and compliance with standards.
Applications
- Data and voice communication networks
- CAT6A and larger diameter CAT6 cable installations
- Power Over Ethernet (PoE and PoE+) compliant systems
- Structured cabling for commercial and residential buildings
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable gold-plated contacts reduce corrosion and extend product life
- Pass-Thru design minimizes material waste by trimming flush to cable end
- Supports energy-efficient PoE technology reducing overall power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Pass-Thru™ Modular Data Plugs RJ45-CAT6A Shielded 50-Pack is available for immediate purchase, ideal for professional data and voice network installations requiring high-performance connectors.
