Passive Infrared Sensor 110° | IP66 Rated | Adjustable Sensitivity | Grey by Clipsal
Passive infrared sensor with 110-degree detection and adjustable light sensitivity—ideal for residential and commercial lighting control. Built for energy efficiency, with IP66 protection and easy surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

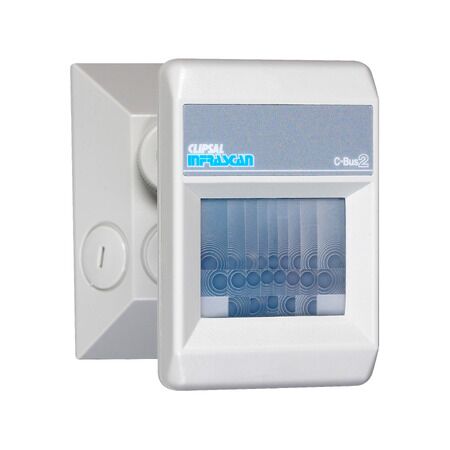

Product Name/Title: C-Bus Control and Management System, Passive Infrared Sensor, 110 degrees - Grey
Brand: Clipsal
SKU: 5750WPL-GY
Alternatively Known As: C-Bus PIR Sensor, Passive Infrared Occupancy Sensor
Technical Specifications
- Rated operational voltage: 15...36 V DC
- Rated current: 18 mA
- Communication network type: C-Bus 100
- Number of channels: 1
- Local signalling: LED for status
- Device mounting: Surface, wall/ceiling
- Mounting height: 2.4 m
- Fixing center: 84 mm
- Ambient air temperature for operation: 0...45 °C
- Detection face: Lateral: 12 m, Frontal: 18 m
- Time delay range: 0...1 s (switch-on)
- Duty cycle: 10-90 min
- Dimensions (H x L x W): 111mm x 138mm x 74mm
- Weight: 0.34 kg
Key Features
- Passive Infrared (PIR) sensor with a 110-degree horizontal detection angle.
- Adjustable light sensitivity down to 1 lux.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Residential: Staircase monitoring and lighting control
- Commercial: Office lighting management and energy efficiency
Standards & Compliance
- Complies with relevant Australian standards for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, contributing to reduced environmental impact.
Warranty Information
Standard warranty terms apply.
Available Now
The Clipsal C-Bus Control and Management System Passive Infrared Sensor is available now for immediate purchase. Ideal for smart home and commercial lighting solutions.
