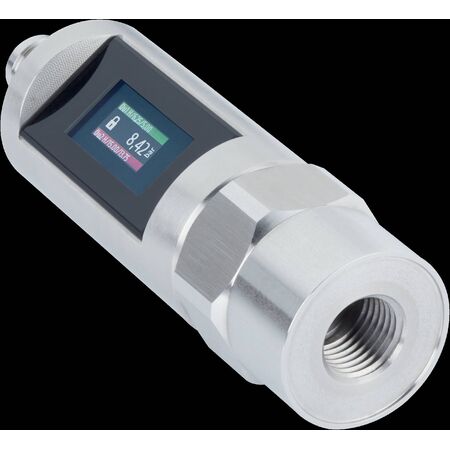

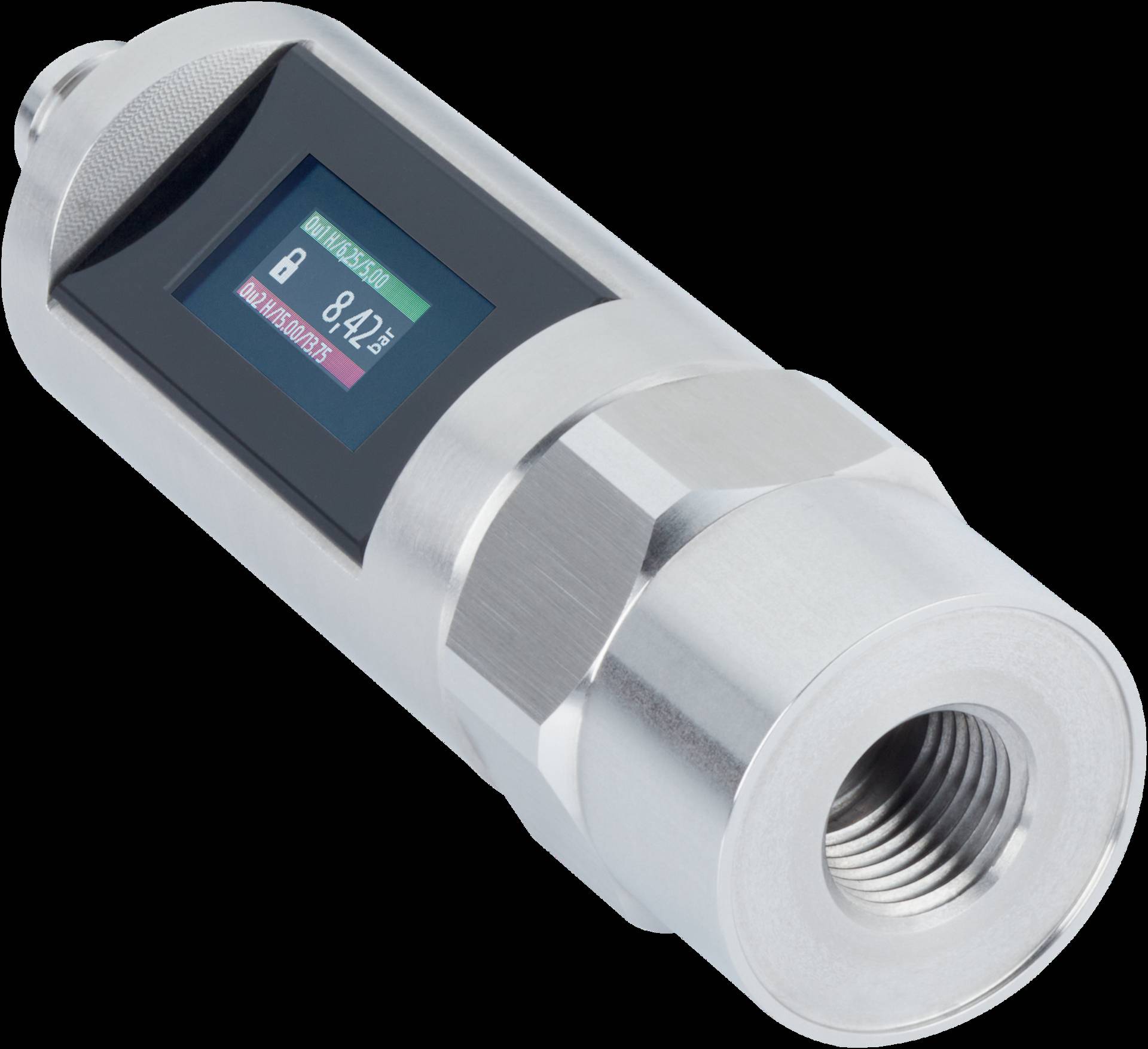

PBST Pressure Sensor | -1 to 10 Bar Range | IP68 Enclosure | Multi-Color Touchscreen | by SICK
The PBST pressure sensor is designed for precise pressure measurement and control in industrial applications, featuring a measuring range of -1 to 10 bar and a robust IP68-rated stainless steel housing. With two configurable signal outputs and a user-friendly multi-color touchscreen, it's perfect for monitoring liquids and gases in machine circuits, ensuring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PBST Pressure Sensor | -1 to 10 Bar Range | IP68 Enclosure | Multi-Color Touchscreen | by SICK
Brand: SICK
SKU: 6088774
Alternatively Known As: Pressure switch, Pressure transducer, IO-Link pressure sensor, Stainless steel pressure sensor
Technical Specifications
- Pressure type: Compound pressure
- Measuring range: -1 bar to 10 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal material: EPDM
- Enclosure rating: IP65, IP67, IP68
- Signal outputs: Two configurable outputs including switching, IO-Link, and analog
- Connector: M12 male for voltage supply
- Dimensions (H x L x W): 80mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- Multi-color touchscreen for quick and easy configuration
- Compact stainless steel housing with IP68 enclosure rating
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from -1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections including male thread G ¼", female thread G ¼", and NPT male thread ¼"
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct configuration and safety compliance.
Applications
- Machine circuits pressure measurement and control
- Monitoring and control of liquids and gases pressure
- Industrial automation requiring precise pressure switching and transducer functions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Reliable measurement reduces system errors and resource waste
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The SICK PBST pressure sensor is available for immediate purchase, ideal for industrial and machine circuit pressure monitoring and control applications.
