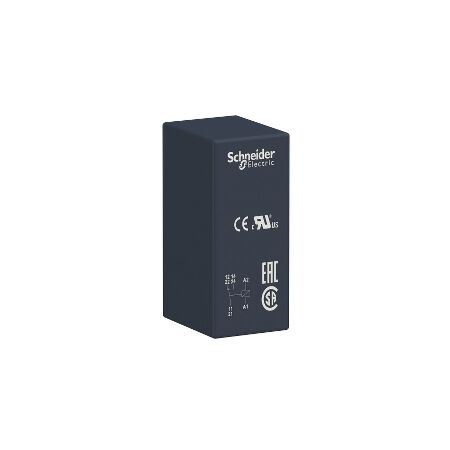

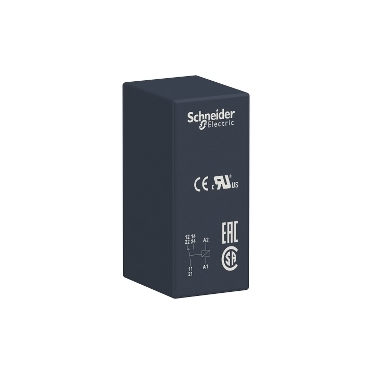

PCB Relay 1C/O 16A 240VAC | Compact Plug-In Design | Reliable Switching | by Clipsal
The PCB Relay 1C/O 16A 240VAC is designed for reliable high-current switching in industrial automation and building management systems. With a compact plug-in design and a robust 16A rating, it ensures efficient operation in HVAC and lighting control circuits. Ideal for professional installation, this relay offers a long operational life and complies with essential safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PCB Relay 1C/O 16A 240VAC | Compact Plug-In Design | Reliable Switching | by Clipsal
Brand: Clipsal
SKU: SCHRSB1A160U7
Alternatively Known As: ['Clipsal SCHRSB1A160U7', 'Harmony RSB relay', 'PCB interface relay 16A', '240V AC plug-in relay', '1C/O relay 16A']
Technical Specifications
- Contact configuration: 1 changeover (1C/O)
- Rated current: 16A
- Coil voltage: 240VAC
- Mounting type: PCB plug-in
- Contact material: Silver alloy
- Dielectric strength: 5000V AC between coil and contacts
- Operating temperature: -40°C to +70°C
- Mechanical durability: 10,000,000 operations
- Electrical durability: 100,000 operations at rated load
- Dimensions (H x L x W): 35mm x 29mm x 16mm
- Weight: 0.1 kg
Key Features
- 1 changeover (1C/O) contact configuration
- Rated for 16A at 240VAC
- Plug-in interface relay for easy installation and replacement
- Compact PCB mounting design
- Reliable switching for high current loads
- Part of the Harmony RSB relay series
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with PCB relay integration and safety standards.
Applications
- Industrial automation control panels
- Building management systems
- HVAC equipment
- Lighting control circuits
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and electronic waste.
- Efficient switching minimizes energy loss in control circuits.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal PCB Relay 1C/O 16A 240VAC (SCHRSB1A160U7) is available for immediate purchase. Ideal for industrial automation, building management, and high-current switching applications.
