PCB Relay 2 Changeover | 24V DC Coil | Hermetically Sealed | Compact Design by NHP
PCB relay with 24V DC coil and 2 changeover contacts—ideal for industrial automation and control panels. Built for reliability, with hermetically sealed design for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

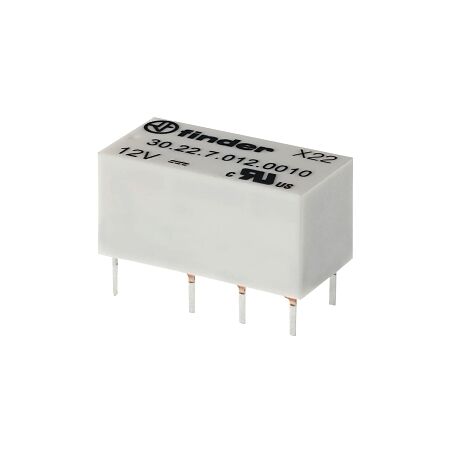

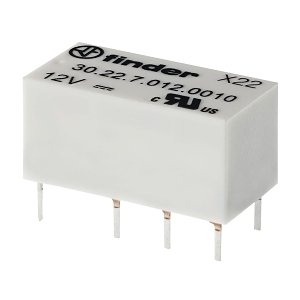

Product Name/Title: Finder 30 Series Printed Circuit Board Relay Hermetically Sealed 2 Changeover 24V DC Coil
Brand: NHP
SKU: 302224VDC
Alternatively Known As: PCB Relay, Switching Relay, Finder Relay
Technical Specifications
- Nominal Current: 2 A
- Nominal Voltage AC: 125 V
- Max Rated Operation Voltage (UE AC): 250 V
- Number of Contacts: 2 Changeover
- Rated Switching Power at AC 1: 125 VA
- Rated Switching Power at AC 15 (230 V): 25 VA
- Breaking Capacity at DC 1 (30 V): 3 A
- Breaking Capacity at DC 1 (110 V): 0.3 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 20mm x 11mm x 10mm
- Weight: 0.1 kg
Key Features
- Hermetically sealed for enhanced reliability and durability.
- Suitable for PCB mounting.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long electrical and mechanical life reduces waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 30 Series Printed Circuit Board Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
