PCB Relay 2 Changeover | Hermetically Sealed | 12V DC Coil by NHP
PCB relay with 2 changeover contacts and hermetically sealed design—ideal for industrial automation and control panels. Built for reliability, with 12V DC coil and long electrical life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

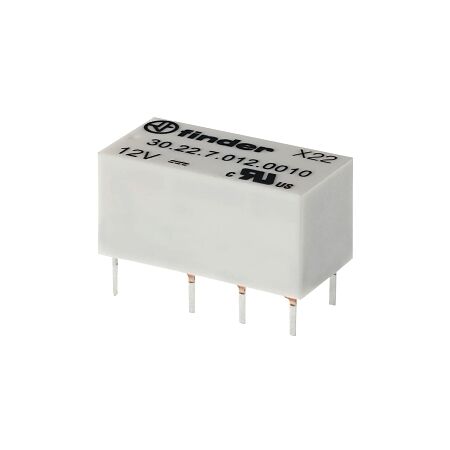

Product Name/Title: Finder 30 Series Printed Circuit Board Relay Hermetically Sealed 2 Changeover 12V DC Coil
Brand: NHP
SKU: 302212VDC
Alternatively Known As: PCB Relay, Switching Relay, Finder Relay
Technical Specifications
- Nominal Current: 2 A
- Nominal Voltage AC: 125 V
- Max Rated Operation Voltage (UE AC): 250 V
- Number of Contacts: 2 Changeover
- Rated Switching Power at AC 1: 125 VA
- Rated Switching Power at AC 15-230 V: 25 VA
- Breaking Capacity at DC 1-30 V: 3 A
- Breaking Capacity at DC 1-110 V: 0.3 A
- Control Supply Voltage (US) at DC: 12 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 20.3mm x 11.4mm x 10.1mm
- Weight: 0.1 kg
Key Features
- Hermetically sealed for enhanced reliability and durability.
- Suitable for PCB mounting.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long electrical and mechanical life reduces waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 30 Series Printed Circuit Board Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
