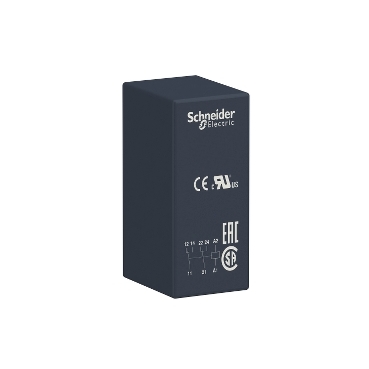

PCB Relay 2C/O 8A 24VAC | Compact Design | Plug-In Interface | 10 Million Operations | @Each of 1 | by Clipsal
The PCB Relay 2C/O 8A 24VAC is designed for versatile switching in industrial automation and building management systems. With a robust 8A contact rating and a compact PCB mount design, it ensures reliable performance in control circuits. Ideal for HVAC equipment and lighting control, this relay features a plug-in interface for easy installation and boasts a mechanical life of up to 10 million operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PCB Relay 2C/O 8A 24VAC | Compact Design | Plug-In Interface | 10 Million Operations | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRSB2A080B7
Alternatively Known As: Harmony RSB relay, 2C/O PCB relay, 8A 24VAC relay, plug-in interface relay, SCHRSB2A080B7 relay
Technical Specifications
- Contact configuration: 2 changeover (2C/O)
- Contact rating: 8A at 250VAC/30VDC
- Coil voltage: 24VAC
- Coil power consumption: approx. 0.9 VA
- Dielectric strength: 5000V between coil and contacts
- Mechanical life: 10,000,000 operations
- Electrical life: 100,000 operations at rated load
- Operating temperature: -40°C to +70°C
- Mounting: PCB plug-in
- Dimensions (H x L x W): 15mm x 29mm x 10mm
- Weight: 0.1 kg
Key Features
- 2 changeover (2C/O) contacts for versatile switching
- 8A contact rating for reliable load handling
- 24VAC coil voltage for standard control circuits
- Plug-in interface for easy installation and replacement
- Compact PCB mount design
- Part of the Harmony RSB relay series
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure correct integration into control circuits and compliance with safety standards.
Applications
- Industrial automation control panels
- Building management systems
- HVAC equipment
- Lighting control circuits
- General purpose switching in electronic and electrical devices
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces electronic waste
- Low power consumption coil for energy efficiency
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal PCB Relay 2C/O 8A 24VAC (SCHRSB2A080B7) is available for immediate purchase. Ideal for industrial automation, building management, and general electrical switching applications.
