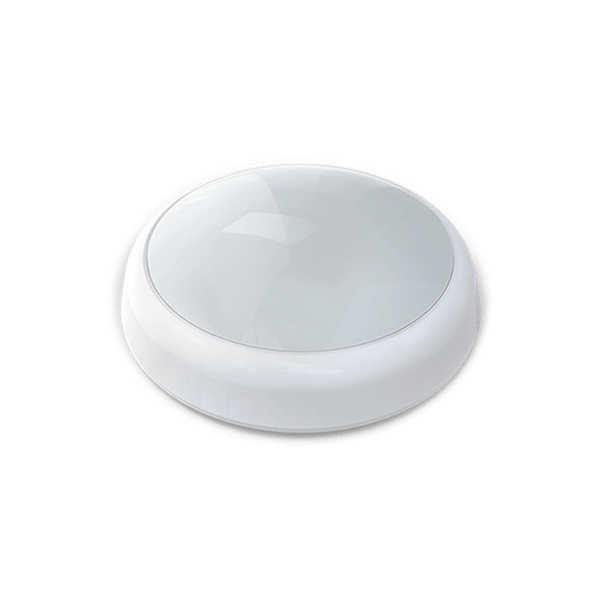

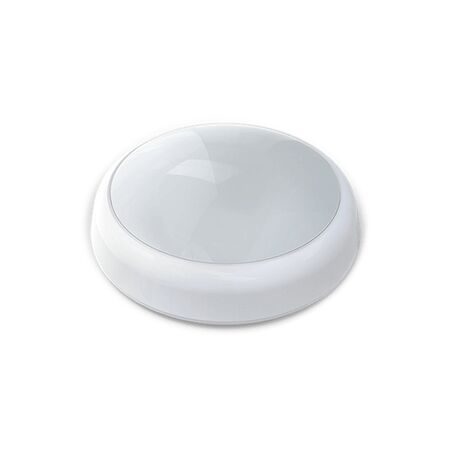

Pearl Circular IP54 LED Light | 12.5W | Tri-CCT Options | IK08 Rated | by Ektor
The Pearl Circular IP54 LED Light is designed for versatile lighting solutions, featuring a robust IP54 rating for dust and water resistance. With a maximum wattage of 12.5W and tri-CCT options (3000K, 4000K, 6000K), it’s perfect for commercial and industrial applications. Built with a durable polycarbonate body and IK08 impact rating, this light ensures longevity and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Pearl IP54 LED Light, Pearl Circular LED Surface Light, IP54 Emergency LED Light, Ektor Surface Mount LED
Technical Specifications
- IP Rating: IP54
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 17 W
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: 3000K, 4000K, 6000K
- Lumens Output: 1170-1500 lm depending on model and CCT
- LED Lifetime: >54,000 hours (TM-21 report)
- Driver Type: Fixed output, included
- Dimmable: No
- Sensor Type (S suffix): Microwave with 6m detection range
- Emergency Mode (EM suffix): Maintained, 90 mins duration, 312 lm output
- Switch Type: Inline
- Wiring: Re-wireable terminal block (3 or 4 pin depending on model)
- Dimensions (H x L x W): 60mm x 250mm x 250mm
- Weight: 1.2 kg
Key Features
- IP54 rated for protection against dust and water splashes
- Polycarbonate body and diffuser for durability
- Tri-CCT colour temperature options: 3000K, 4000K, 6000K
- High LED lifetime of over 54,000 hours (TM-21 report)
- Microwave sensor option with adjustable detection range and lux settings
- Emergency maintained mode with 90 minutes duration and 312 lm output
- Fixed output driver included, non-dimmable
- Inline switch type and re-wireable terminal block wiring
- IK08 impact rating for mechanical robustness
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety regulations.
Applications
- Commercial and industrial lighting
- Emergency lighting applications
- Surface mount installations requiring IP54 protection
- Indoor areas with moderate moisture and dust exposure
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- Long LED lifetime reduces replacement frequency and waste
- Energy-efficient LED technology lowers power consumption
- Tri-CCT feature allows optimal lighting selection reducing unnecessary energy use
Warranty Information
Standard 5 years return-to-base warranty for general lighting components and 6 years return-to-base warranty for emergency lighting components. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Pearl Circular IP54 12.5W LED light is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications requiring robust IP54 protection.
