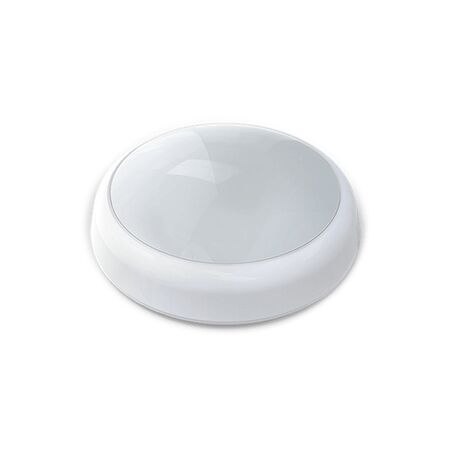

Pearl Circular IP54 Sensor Light | 12.5W | Microwave Sensor | Tri-CCT Options | by Ektor
The Pearl Circular IP54 Sensor Light is designed for versatile lighting solutions, featuring a durable polycarbonate body and a microwave sensor for efficient operation. With tri-colour temperature options (3000K, 4000K, 6000K) and an impressive LED lifetime of over 54,000 hours, this light is perfect for commercial and industrial applications, ensuring reliable performance in both indoor and outdoor settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Pearl IP54 Sensor Light, Ektor Circular LED Emergency Light, Ektor Surface Mount LED Sensor Light
Technical Specifications
- IP Rating: IP54
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 17 W
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: 3000K, 4000K, 6000K
- LED Lifetime: >54,000 hours (TM-21 rated)
- Driver Type: Fixed output, included
- Dimmable: No
- Switch Type: Inline
- Sensor Type: Microwave
- Lux Range: 3-1000 lx
- Detection Range: 6 m
- Time Delay: 12 seconds
- Switched Output Rating: 125 W
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 312 lm
- Replacement Battery Code: 01302
- Dimensions (H x L x W): 70mm x 250mm x 250mm
- Weight: 1.2 kg
Key Features
- IP54 rated for dust and water resistance
- Polycarbonate body and diffuser for durability
- Surface mount installation
- Microwave sensor with adjustable lux range (3-1000 lx) and detection range of 6 m
- Tri-CCT colour temperature options: 3000K, 4000K, 6000K
- High LED lifetime of over 54,000 hours (TM-21 rated)
- Fixed output driver included, non-dimmable
- Emergency maintained mode with 90 minutes duration and 312 lm output
- Inline switch type
- Adjustable hold time and detection sensitivity
- Switched output rating of 125 W
- Colour Rendering Index (CRI) greater than 80
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper sensor configuration.
Applications
- Commercial and industrial lighting
- Emergency lighting applications
- Surface mounted indoor and outdoor areas requiring IP54 protection
- Areas requiring sensor-activated lighting
Standards & Compliance
- AS/NZS 60598 – Electrical & Electronics
- AS/NZS 2293 – Fire & Safety
Environmental Benefits
- Long LED lifetime reduces waste and replacement frequency
- Energy-efficient LED technology lowers power consumption
- Integrated sensor reduces unnecessary energy use by activating light only when needed
Warranty Information
Standard 5 years return-to-base warranty for general lighting components and 6 years return-to-base warranty for emergency lighting components. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Pearl Circular IP54 with Sensor - 12.5W is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
