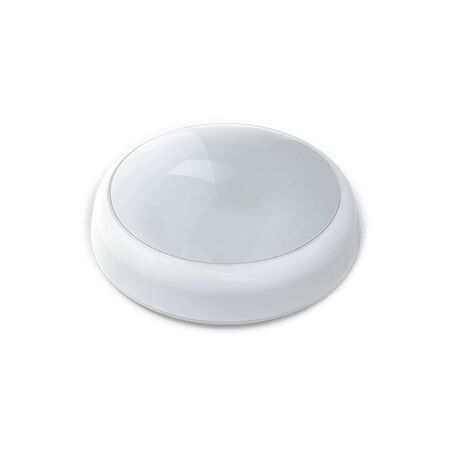

Pearl Circular Lite Emergency IP54 | 12.5W | Tri-CCT Color Options | IK08 Impact Rated | by Ektor
The Pearl Circular Lite Emergency IP54 is designed for reliable emergency lighting in commercial and industrial settings. With a robust IP54 rating for dust and water resistance, this surface mount fixture features a durable polycarbonate body and diffuser. Offering tri-CCT color temperature options (3000K, 4000K, 6000K) and a high LED lifetime of over 54,000 hours, it ensures safety and efficiency during emergencies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Pearl Circular Emergency Light, Pearl IP54 Emergency LED, Ektor Surface Mount Emergency Light, Pearl Circular Lite LED Emergency
Technical Specifications
- IP Rating: IP54
- IK Rating: IK08
- Body and Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 17 W
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: 3000K, 4000K, 6000K
- LED Lifetime: >54,000 hours (TM-21 L70 B10)
- Driver Type: Fixed output, included
- Dimmable: No
- Switch Type: Inline
- Wiring: Re-wireable terminal block (3 or 4 pin depending on model)
- Sensor Type (S suffix): Microwave with 6 m detection range
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Output Power: 3300 mW
- Emergency Lumen Output: 312 lm
- Standby Power: 14.5 W
- Dimensions (H x L x W): 60mm x 250mm x 250mm
- Weight: 1.2 kg
Key Features
- IP54 rated for dust and water resistance
- Polycarbonate body and diffuser for durability
- Tri-CCT colour temperature configuration (3000K, 4000K, 6000K)
- High LED lifetime of over 54,000 hours (TM-21 rated)
- Maintained emergency mode with 90 minutes duration
- Microwave sensor option with adjustable lux and detection range
- Fixed output driver included, non-dimmable
- Inline switch type with re-wireable terminal block
- Emergency output power of 3300 mW with 312 lm emergency lumen output
- IK08 impact rating for mechanical protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP54 rated fixtures
- Emergency exit and safety lighting in public and private buildings
Standards & Compliance
- AS/NZS 60598 – Electrical & Electronics
- AS/NZS 2293 – Fire & Safety
Environmental Benefits
- Long LED lifetime reduces waste and replacement frequency
- Energy-efficient LED technology lowers power consumption
- Durable polycarbonate materials extend product life and reduce environmental impact
Warranty Information
Standard 5 years return-to-base warranty for general lighting components and 6 years return-to-base warranty for emergency lighting components. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Pearl Circular Lite Emergency IP54 - 12.5W is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
