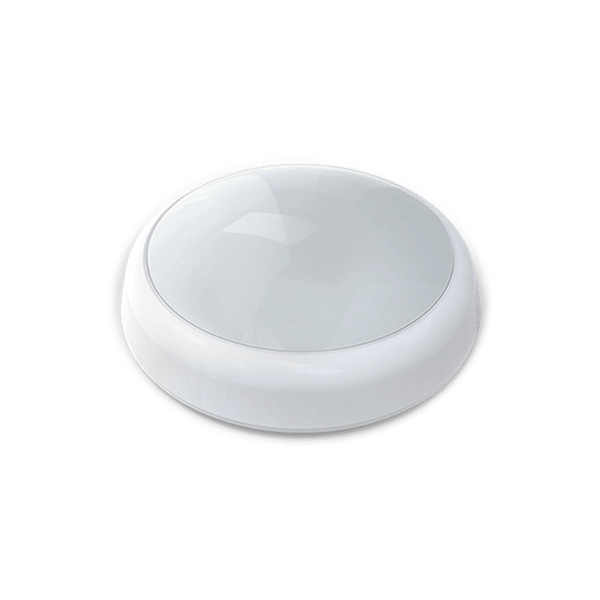

Pearl Circular Lite Emergency IP54 with Sensor | 12.5W | Microwave Sensor | Tri-CCT Color Temperature | by Ektor
The Pearl Circular Lite Emergency IP54 with Sensor is designed for reliable emergency lighting in commercial and industrial settings. With an IP54 rating for dust and water resistance, this surface mount light features a microwave sensor for enhanced functionality. Ideal for corridors and emergency exit routes, it offers a maintained emergency mode with a 90-minute duration, ensuring safety and visibility when it matters most.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Circular Light, IP54 Emergency Sensor Light, Surface Mount Emergency Light, Microwave Sensor Emergency Light
Technical Specifications
- IP Rating: IP54
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 17 W
- Colour Rendering Index (CRI): >80
- Colour Temperature: 3000K, 4000K, 6000K
- LED Lifetime: >54,000 hours (TM-21 report)
- Driver Type: Fixed output, included
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 or 4 pin depending on model)
- Sensor Type: Microwave
- Lux Range: 3-1000 lx
- Detection Range: 6 m
- Time Delay: 12 seconds
- Switched Output Rating: 125 W
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Output Power: 3300 mW
- Emergency Lumen Output: 312 lm
- Replacement Battery Code: 01302
- Dimensions (H x L x W): 50mm x 300mm x 300mm
- Weight: 1.2 kg
Key Features
- IP54 rated for dust and water resistance
- Mechanical IK08 impact rating for durability
- Surface mount installation
- Polycarbonate body and diffuser for robust construction
- Tri-CCT colour temperature configuration (3000K, 4000K, 6000K)
- Microwave sensor with adjustable lux range (3-1000 lx) and detection range of 6 m
- Maintained emergency mode with 90 minutes emergency duration
- Emergency output power of 3300 mW and emergency lumen output of 312 lm
- Fixed output driver included, non-dimmable
- Re-wireable terminal block wiring
- Standby power measured for non-maintained and maintained emergency devices
- Dusk mode and adjustable hold time with lux adjustment
- Emergency classification C0:D32, C90:D32
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical standards and proper emergency lighting functionality.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations in corridors, stairwells, and emergency exit routes
- Areas requiring IP54 rated emergency lighting with sensor functionality
Standards & Compliance
- AS/NZS 60598 – Wiring Rules (Electrical Installation)
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Long LED lifetime of over 54,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology lowers power consumption
- Tri-CCT feature allows optimal lighting temperature selection to reduce energy use
Warranty Information
Standard 5 years return-to-base warranty for general lighting components and 6 years return-to-base warranty for emergency lighting components. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Pearl Circular Lite Emergency IP54 with Sensor - 12.5W is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
