Trade Discount 25%

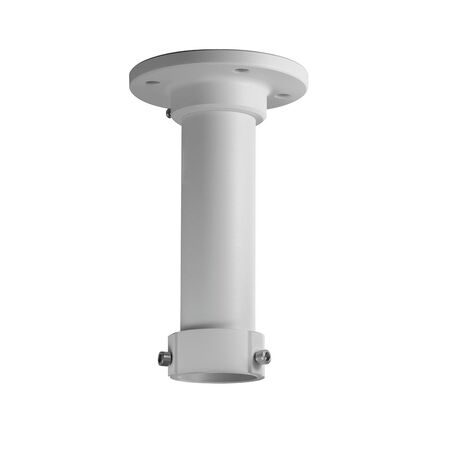

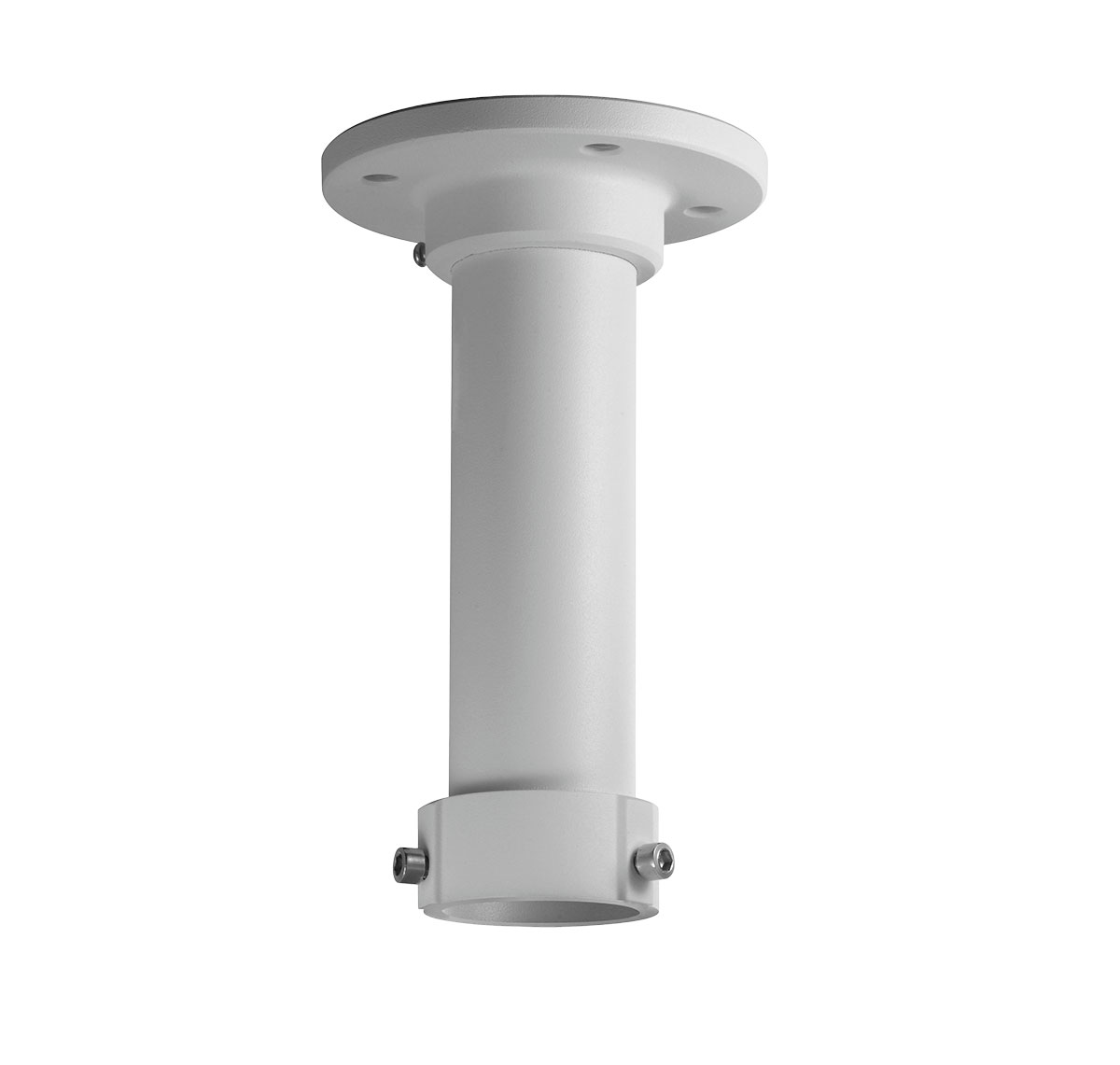

Pendant Bracket White Hikvision
Hikvision pendant bracket in white for mounting CCTV cameras. Ideal for suspended camera installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1271ZJ-110, Hikvision Pendant Mounting Bracket, Dome Camera Ceiling Pendant Bracket
Technical Specifications
- Mounting Type: Pendant or suspended ceiling mount
- Compatible Equipment: Hikvision dome cameras, including compatible mini-dome models
- Material: Aluminium alloy with surface treatment
- Colour: Hikvision White
- Maximum Load Capacity: 4.5 kg
- Cable Management: Internal routed cable design with reserved cable entry
- Installation Environment: Indoor and outdoor use
- Outdoor Installation: Waterproof rubber required
- Dimensions (H x L x W): 560mm x 150mm x 150mm
- Weight: 1.27 kg
Key Features
- Suspends compatible Hikvision dome cameras from ceilings or overhead structures
- Aluminium alloy construction for a rigid and durable mounting solution
- Internal cable routing provides a cleaner installation
- Suitable for indoor and outdoor CCTV installations
- White finish matches compatible Hikvision cameras
- Designed for installation on a flat mounting surface
- Maximum load capacity of 4.5 kg
Professional Installation Requirements
- No specialist trade licence is normally required for the passive bracket itself. Installation should be completed by a competent installer using suitable fixings, with the mounting surface capable of supporting at least three times the combined camera and bracket weight. Electrical and data connections must be completed in accordance with applicable installation requirements.
Applications
- Suspended ceiling mounting of Hikvision dome cameras
- Indoor commercial CCTV installations
- Outdoor CCTV installations where suitable weather sealing is provided
- Retail, office, warehouse and public-area surveillance systems
- Installations requiring internal cable routing and additional camera drop
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Durable construction can reduce replacement frequency and installation waste
- Internal cable routing helps protect cabling and may support longer service life for the installed system
Warranty Information
Australian distributor listings commonly state a 3-year warranty for this model. Confirm the applicable warranty terms with the authorised Australian distributor, as Hikvision warranty coverage can vary by product series and sales channel.
Available Now
Available through Hikvision and authorised Australian CCTV, security and electrical distributors.
