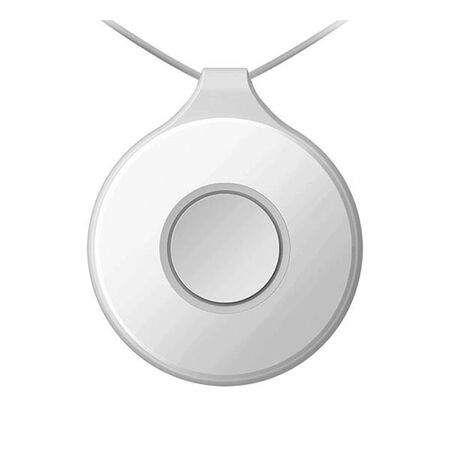

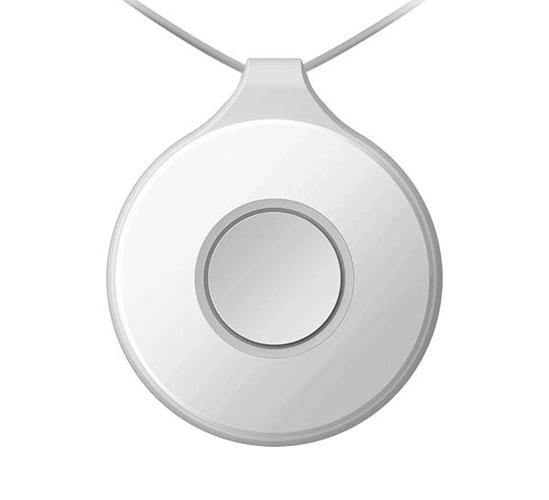

Pendant Button Single AX PRO Hikvision

BRAND: Ness
SKU: 114-265
$48.10 List price: $64.20
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision AX PRO single button pendant for manual alarm triggering. Ideal for alarm systems.

Alternatively Known As: Hikvision DS-PDEBP1-EG2-WE, AX PRO Portable Emergency Button, Wireless Panic Button, Emergency Pendant

Technical Specifications
  • Model: DS-PDEBP1-EG2-WE
  • Button: Single panic/emergency button
  • Wireless Technology: Tri-X two-way RF wireless
  • Transmission Frequency: 868 MHz
  • Transmission Range: Up to 1 km in open space
  • Wireless Security: AES-128 encryption
  • Frequency Hopping: Supported for improved resistance to interference
  • Indicator: Flashing red or green LED
  • Battery: 1 x CR2032, 3 V
  • Typical Battery Life: Up to 3 years
  • Ingress Protection: IP54
  • Operating Temperature: -10°C to 55°C
  • Operating Humidity: 10% to 90% non-condensing
  • Accessories: Optional lanyard and wristband available
  • Dimensions (H x L x W): 12mm x 38mm x 38mm
  • Weight: 0.1 kg
Key Features
  • Portable pendant design for carrying or wearing
  • Single-button activation for panic or emergency alarms
  • Can be configured for panic or medical alarm functions through the AX PRO system
  • Two-way wireless communication with signal-strength indication
  • AES-128 encrypted transmission with frequency hopping
  • Flashing LED confirms alarm transmission
  • Compatible with Hikvision AX PRO wireless alarm systems
Applications
  • Residential panic and emergency alarm systems
  • Commercial and small-business security systems
  • Medical assistance or duress alarm applications
  • Portable personal alarm triggering within Hikvision AX PRO installations
Standards & Compliance
  • Applicable wireless short-range-device requirements: AS/NZS 4268:2017, subject to the product’s Australian conformity and RCM documentation
Environmental Benefits
  • Low-power wireless operation supports an expected battery life of up to three years
  • Replaceable CR2032 battery avoids disposal of the complete device when the battery is depleted
  • IP54 protection and durable construction can help extend service life and reduce replacement waste
Warranty Information

Hikvision warranty coverage applies when purchased through an authorised Australian distributor; the applicable period should be confirmed with the supplier for this product and sales channel.

Available Now

Available through Hikvision and authorised Australian security-system distributors.
