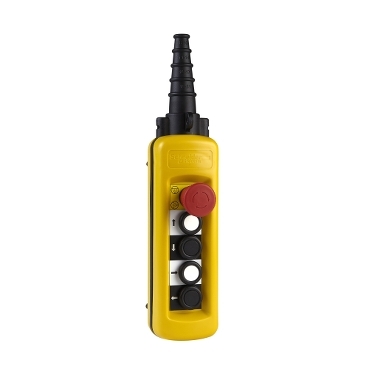

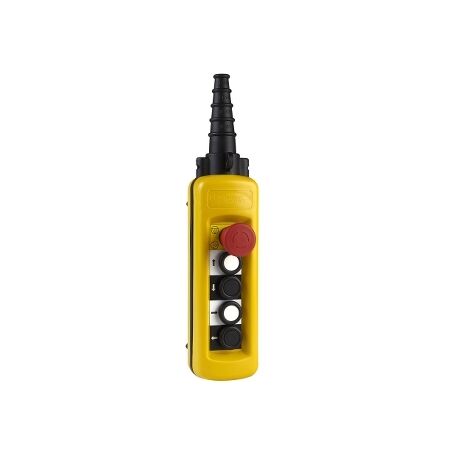

Pendant Control Station 4P/B with Emergency Stop | IP65 Rated | Shock-Resistant Design | @Pack of 1 | by Clipsal
The Pendant Control Station 4P/B with Emergency Stop is designed for industrial machinery control, featuring 4 push buttons and an emergency stop for enhanced safety. Built with a shock-resistant thermoplastic enclosure and IP65 rating, it ensures durability and reliability in harsh environments, making it ideal for cranes, hoists, and factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pendant Control Station 4P/B with Emergency Stop | IP65 Rated | Shock-Resistant Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXACA4813
Alternatively Known As: Pendant control station, industrial pendant switch, hoist pendant controller, emergency stop pendant, SCHXACA4813
Technical Specifications
- Number of buttons: 4 push buttons + 1 emergency stop
- Enclosure material: Shock-resistant thermoplastic
- Ingress protection: IP65
- Rated insulation voltage: 500V
- Operating temperature: -25°C to +70°C
- Contact type: Slow-break, double break
- Cable entry: 1 x M20
- Dimensions (H x L x W): 300mm x 90mm x 80mm
- Weight: 1.2 kg
Key Features
- 4 push button pendant station with emergency stop
- Robust and ergonomic design for industrial environments
- Easy to operate with clear button labeling
- IP65 rated for dust and water resistance
- Shock-resistant thermoplastic housing
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician familiar with industrial control systems.
Applications
- Industrial machinery control
- Cranes and hoists
- Material handling equipment
- Factory automation
- Workshops and manufacturing plants
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- IP65 rating ensures long service life in harsh environments
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Pendant Station 4P/B with Emergency Stop (SCHXACA4813) is available for immediate purchase. Ideal for industrial machinery control and safety applications.
