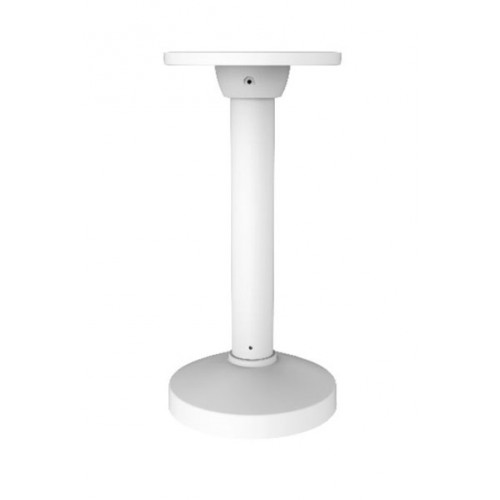

Pendant Mount Bracket 546mm Hikvision
Hikvision pendant mount bracket features a 546mm length. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Dome Camera Pendant Mount, CCTV Pendant Bracket, Ceiling Pendant Camera Mount
Technical Specifications
- Model: DS-1471ZJ-155
- Mounting Type: Pendant mount for dome cameras
- Material: Aluminium alloy
- Colour: Hikvision white
- Dimensions: Ø155mm x 546mm
- Approximate Weight: 1.4kg
- Compatible Camera Type: Hikvision dome cameras
- Maximum Supported Load: Up to 3kg, subject to compatible camera and fixing method
- Dimensions (H x L x W): 546mm x 155mm x 155mm
- Weight: 1.4 kg
Key Features
- 546mm pendant drop for high or exposed ceilings
- Designed for compatible Hikvision dome cameras
- Aluminium alloy construction for strength and corrosion resistance
- 155mm diameter mounting base
- Hikvision white finish for coordinated installations
- Suitable for commercial, retail, warehouse and public-space CCTV installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Confirm camera compatibility, ceiling substrate, fixing method and load capacity before installation, particularly for overhead or outdoor applications.
Applications
- Pendant mounting of Hikvision dome cameras
- High-ceiling CCTV installations
- Retail shops, atriums and commercial lobbies
- Warehouses and industrial facilities
- Stairwells, corridors and other open-plan security-monitoring areas
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable to video surveillance systems used for security applications; no separate product certification is stated for this passive mounting bracket.
Environmental Benefits
- Aluminium alloy is highly recyclable at end of product life
- Durable construction can extend service life and reduce replacement waste
- Passive mechanical accessory requires no operational electricity
Warranty Information
Hikvision’s Australian RMA policy lists brackets as consumable products with a 12-month warranty from the shipment date, subject to the applicable terms and authorised supply channel. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V7.1.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors; confirm current stock and camera compatibility before ordering.
