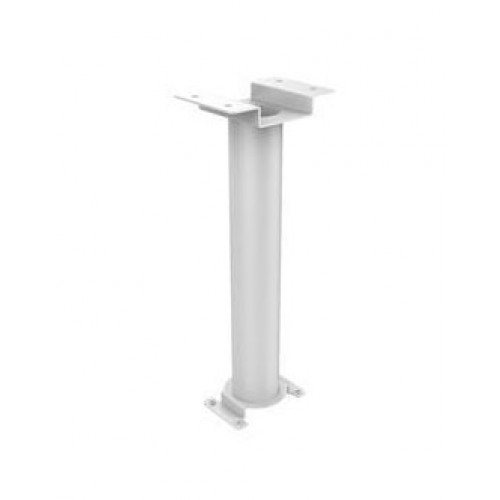

Pendant Mount Bracket Aluminium Alloy 500mm Hikvision
Hikvision pendant mount bracket features aluminium alloy construction and a 500mm length. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PTZ Pendant Mount, CCTV Ceiling Pendant Bracket, Suspended Camera Mount
Technical Specifications
- Model: DS-1662ZJ
- Product Type: Pendant mount bracket
- Material: Aluminium alloy
- Colour: Hikvision white
- Dimensions: Diameter 116.5 mm × 500 mm
- Maximum Load Capacity: 30 kg
- Installation Location: Indoor or outdoor
- Cable Management: Integrated cable entry hole
- Safety: Supplied safety rope and rubber sealing design
- Dimensions (H x L x W): 500mm x 116.5mm x 116.5mm
- Weight: 0.96 kg
Key Features
- 500 mm pendant drop for suspended CCTV camera installations
- Aluminium alloy construction with Hikvision white finish
- Designed for compatible Hikvision PTZ and speed-dome cameras
- Integrated cable entry hole for cleaner cable routing
- Safety rope supports safer assembly and installation
- Suitable for indoor and outdoor applications
- Maximum rated load of 30 kg
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or security installer. Confirm that the ceiling or mounting surface can support at least three times the combined weight of the camera and bracket, and verify camera compatibility before installation.
Applications
- Suspended mounting of Hikvision PTZ cameras
- CCTV installations in warehouses, retail spaces and commercial buildings
- Indoor security camera installations requiring a 500 mm ceiling drop
- Outdoor covered-area surveillance installations
- Professional video surveillance system fit-outs
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Durable metal construction can extend service life and reduce replacement waste
- Passive mechanical accessory requires no electrical power during operation
Warranty Information
Hikvision Australia warranty documentation lists brackets and other consumable accessories as covered for 12 months from shipment, subject to applicable sales terms and authorised distribution requirements. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V6.0.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-system distributors.
