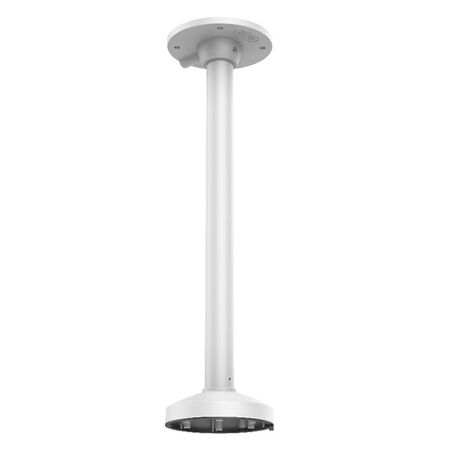

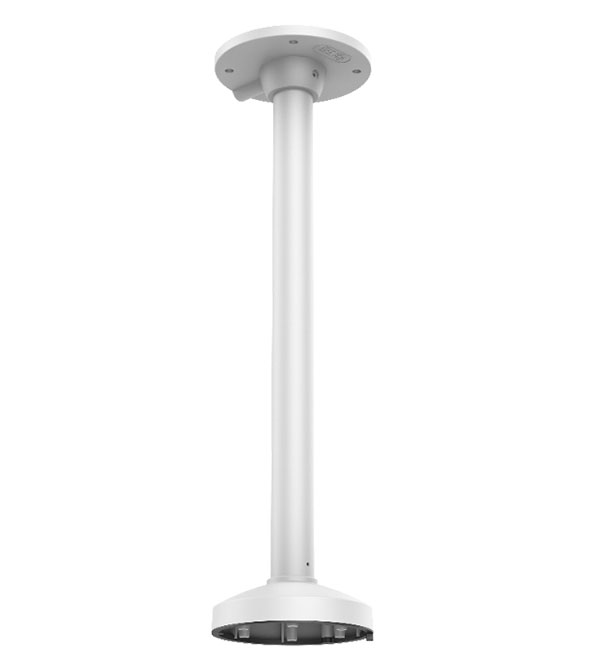

Pendant Mount Bracket DS-1271ZJ-140 to Suit Dome Camera Hikvision
Hikvision pendant mount bracket for dome cameras features a drop-down bracket design. Ideal for CCTV installs needing a suspended dome camera position.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Dome Camera Pendant Mount, CCTV Drop-Down Mount, Suspended Dome Camera Bracket
Technical Specifications
- Mount Type: Pendant mount for dome cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Maximum Load Capacity: 4.5 kg
- Weather Protection: Waterproof design
- Cable Management: Integrated cable hole and wiring cap
- Compatible Models: DS-2CC51xxP(N)-VP, DS-2CC51xxP(N)-VPIR and DS-2CC51xxP(N)-VPIRH
- Mounting Requirement: Install on a flat wall or structurally suitable surface
- Dimensions (H x L x W): 565mm x 150mm x 150mm
- Weight: 1.9 kg
Key Features
- Drop-down pendant design for suspended dome camera positioning
- Aluminium alloy construction for strength and corrosion resistance
- Waterproof bracket design for suitable outdoor CCTV installations
- Integrated cable hole assists cable routing through the mount
- Wiring cap provides convenient access during installation
- Supports camera and mount loads up to 4.5 kg
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or security installer. Confirm that the mounting surface can support more than three times the combined camera and bracket weight, and secure the assembly using suitable fasteners for the substrate.
Applications
- Suspended indoor dome camera installations
- Outdoor dome camera installations where a pendant mounting position is required
- Commercial and industrial CCTV systems
- Retail, warehouse, office and public-area surveillance installations
Standards & Compliance
- AS/NZS 62676.4:2020 - applicable guidance for the selection, planning, installation, commissioning, maintenance and testing of video surveillance systems; product-specific certification is not stated
Environmental Benefits
- Aluminium alloy construction can be recycled at end of service life
- Durable metal construction may extend service life and reduce replacement waste
- Supports installation of CCTV systems that can improve site monitoring and security management
Warranty Information
Warranty is subject to Hikvision Australia and authorised distributor terms. Hikvision's published five-year premium project warranty applies only to listed premium product series and does not specifically list this mounting bracket; confirm the applicable accessory warranty at purchase.
Available Now
Available through Hikvision and authorised Australian security equipment distributors.
