Pendant Mount Bracket DS-1271ZJ-DM30 to Suit Dome Camera Hikvision

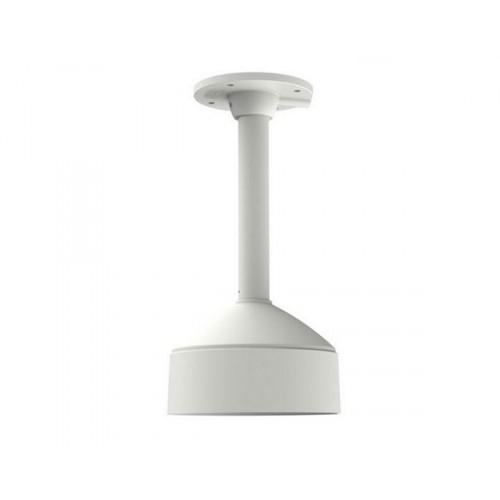

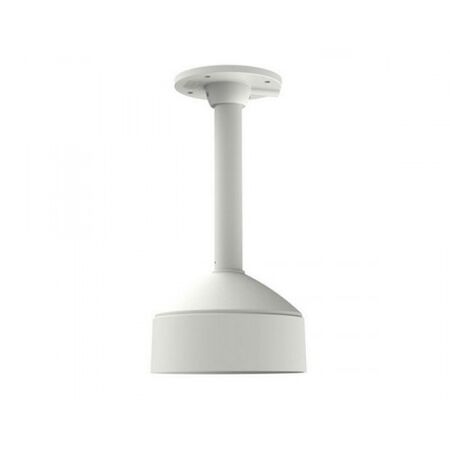

Hikvision pendant mount bracket for dome cameras features a drop-down bracket design. Ideal for CCTV installs needing a suspended dome camera position.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DS-1271ZJ-DM30, Dome Camera Pendant Mount, CCTV Suspended Camera Bracket
Technical Specifications
- Material: Aluminium alloy
- Colour: Hikvision white
- Mounting Type: Pendant mount for dome cameras
- Overall Dimensions: Diameter 209 mm x height 650 mm
- Maximum Load Capacity: 3 kg
- Construction: Surface spray-treated aluminium alloy
- Design: Waterproof bracket with cap for convenient cable routing
- Installation Surface: Flat wall; outdoor applications require waterproof rubber
- Dimensions (H x L x W): 650mm x 209mm x 209mm
- Weight: 2.05 kg
Key Features
- Suspends compatible dome cameras from a wall-mounted pendant position
- Aluminium alloy construction with surface spray treatment
- Waterproof design for suitable indoor and outdoor CCTV installations
- Cap design provides convenient cable routing
- Supports camera and bracket loads up to 3 kg
- Mounting surface should support at least three times the combined camera and bracket weight
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV installer. Fix the bracket to a flat, structurally sound surface capable of supporting at least three times the combined camera and bracket weight, and follow applicable site, work health and safety and CCTV installation requirements.
Applications
- Suspended dome camera installations
- Commercial and industrial CCTV systems
- Outdoor security camera mounting where a pendant drop is required
- Retail, warehouse, car park and building perimeter surveillance
Standards & Compliance
- For CCTV system installation context, apply AS/NZS 62676.4:2026, Video surveillance systems for use in security applications — Application guidelines. This standard relates to the planning, design, installation, testing, commissioning and maintenance of CCTV systems; it is not a product certification for this passive bracket. ([webstore.ansi.org](https://webstore.ansi.org/standards/sai/nzs626762026-2616873?utm_source=openai))
Environmental Benefits
- Aluminium alloy is durable and widely recyclable at end of service life
- Robust construction and corrosion-resistant surface treatment can extend service life and reduce replacement waste
Warranty Information
Hikvision warranty documentation identifies brackets among consumable accessories generally covered for 12 months from shipment, subject to the applicable sales agreement and authorised distribution channel. Confirm Australian warranty terms with the supplying distributor. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V6.0.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
