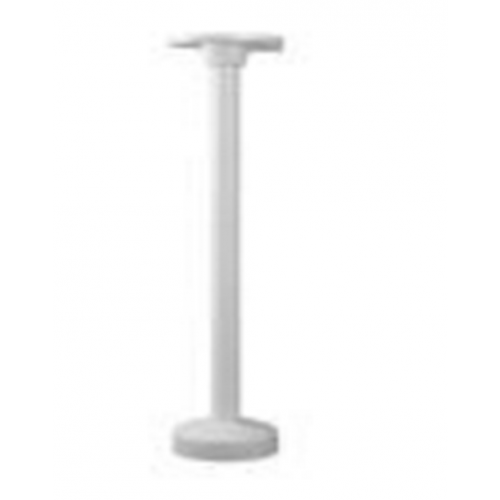

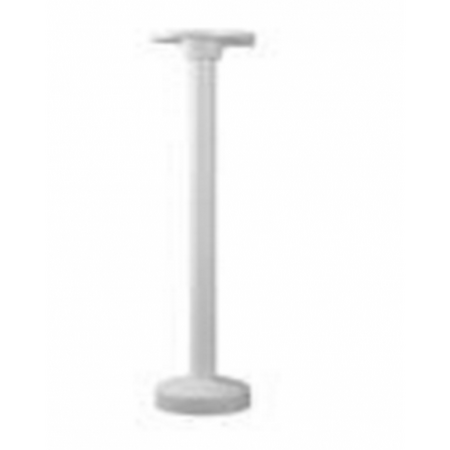

Pendant Mount Bracket to Suit Dome DS-1271ZJ-135 Hikvision
Hikvision pendant mount bracket is made to Suit dome cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Dome Camera Pendant Mount, CCTV Ceiling Pendant Bracket, DS-1271ZJ-135 Camera Mount
Technical Specifications
- Model: DS-1271ZJ-135
- Mount Type: Pendant mount for dome cameras
- Material: Aluminium alloy with surface spray treatment
- Finish: Hikvision white
- Maximum Load Capacity: 3 kg
- Installation Surface: Flat ceiling
- Outdoor Installation: Waterproof rubber required
- Cable Management: Integrated cable hole and cap for cable routing
- Compatible Camera Series: DS-2CD2712F-I(S), DS-2CD2732F-I(S), DS-2CC52xxP(N)-VP and DS-2CC52xxP(N)-AVPIR2
- Dimensions (H x L x W): 565mm x 136mm x 136mm
- Weight: 1.35 kg
Key Features
- Designed for compatible Hikvision dome cameras
- Pendant mounting configuration for ceiling installations
- Aluminium alloy construction for strength and corrosion resistance
- Hikvision white finish to match compatible cameras
- Integrated cable hole and cap to assist neat cable routing
- Suitable for indoor installations and outdoor applications when correctly weatherproofed
- Mounting structure must support at least three times the combined camera and bracket weight
Professional Installation Requirements
- Installation should be performed by a competent CCTV or security installer. Confirm camera compatibility, use suitable ceiling fixings, ensure the supporting structure can carry at least three times the combined camera and bracket weight, and fit waterproof rubber for outdoor installations.
Applications
- Pendant mounting compatible Hikvision dome cameras
- Commercial CCTV installations
- Residential security camera installations
- Retail, warehouse and industrial surveillance systems
- Indoor and sheltered outdoor security camera mounting
Standards & Compliance
- AS/NZS 62676.4:2020 provides application guidance for the selection, planning, installation, commissioning, maintenance and testing of CCTV systems; the bracket itself is not independently stated as compliant with this standard.
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Durable metal construction can extend service life and reduce replacement waste
- A long-life mounting solution supports continued use of compatible CCTV equipment
Warranty Information
Warranty is subject to Hikvision Australia authorised-channel terms. Hikvision's published five-year programme applies to specified premium camera, PTZ, thermal, NVR and storage series and does not specifically list mounting brackets; confirm the applicable warranty with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security equipment distributors.
