Trade Discount 25%

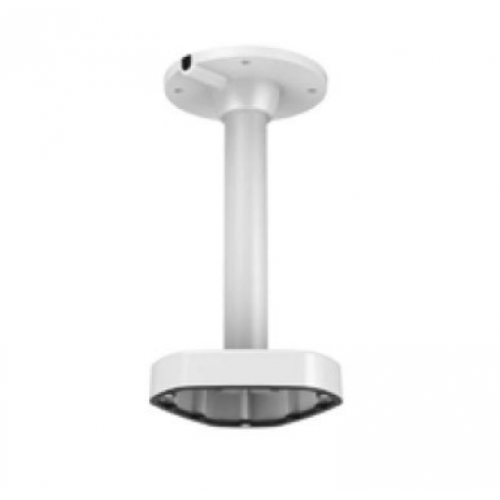

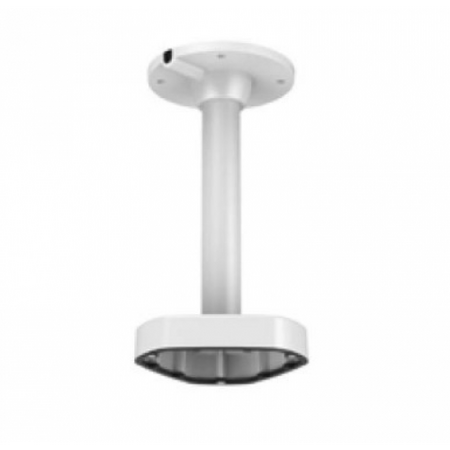

Pendant Mount DS-1271ZJ-DM25 to Suit Fisheye Camera Hikvision
Hikvision pendant mount for fisheye cameras features a drop-down bracket design. Ideal for CCTV installs with fisheye cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fisheye Camera Pendant Bracket, CCTV Pendant Mount, Panoramic Camera Ceiling Mount
Technical Specifications
- Model: DS-1271ZJ-DM25
- Mount Type: Pendant mount
- Compatible Camera Type: Fisheye and panoramic cameras
- Material: Aluminium alloy
- Colour: Hikvision white
- Maximum Load Capacity: 3 kg
- Waterproof Design: Yes
- Mounting Surface: Flat surface required
- Ceiling Support Requirement: Minimum three times the combined camera and bracket weight
- Dimensions (H x L x W): 555mm x 150mm x 150mm
- Weight: 1.93 kg
Key Features
- Designed for Hikvision fisheye cameras
- Drop-down pendant bracket design for ceiling-mounted installations
- Aluminium alloy construction with surface spray treatment
- Hikvision white finish
- Waterproof design for suitable outdoor applications when correctly sealed
- Maximum load capacity of 3 kg
- Cable routing through the mounting assembly
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV installer. Confirm that the ceiling or supporting structure can carry at least three times the combined camera and bracket weight, and use the supplied waterproof rubber for outdoor applications. CCTV system installation should follow the applicable AS/NZS 62676 requirements.
Applications
- Pendant mounting of Hikvision fisheye CCTV cameras
- Commercial and industrial security camera installations
- Retail, warehouse and office surveillance systems
- Indoor and sheltered outdoor panoramic camera installations
Standards & Compliance
- AS/NZS 62676.4:2026 is relevant to the planning, installation, testing and commissioning of the CCTV system in which the bracket is used; no separate product certification for the passive bracket was identified
Environmental Benefits
- Aluminium alloy construction is recyclable at end of service life
- Durable metal construction can extend product service life and reduce replacement waste
- Supports secure camera installation, helping reduce damage-related equipment replacement
Warranty Information
Hikvision Australia RMA policy lists brackets as consumable accessories with a 12-month warranty from the shipment date, subject to the applicable sales terms and purchase through an authorised distribution channel.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to distributor stock.
