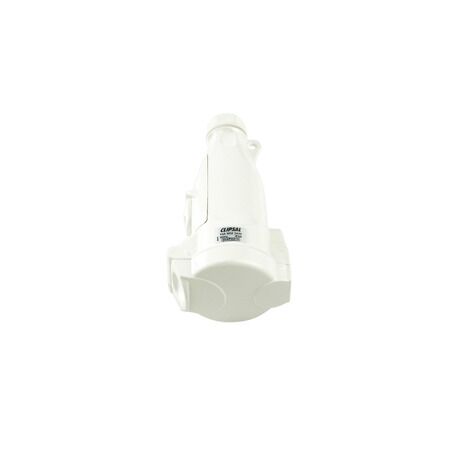

Pendant Outlet 250V 15A | IP66 Rated | 3 Flat PIN | Resistant White by Clipsal

BRAND: Clipsal
SKU: 56SPO315-RW
$160.80 List price: $241.20
+
Pendant outlet with 250V, 15A capacity and IP66 rating—ideal for industrial power supply applications. Built for durability, with 3 flat pins and robust construction for reliable performance.

Product Name/Title: Clipsal - 56 Series, Pendant Outlet, 250V, 15A, 3 Flat PIN, 2 Pole - Resistant White Electric

Brand: Clipsal

SKU: 56SPO315-RW

Alternatively Known As: Industrial Pendant Outlet, 56 Series Outlet, Clipsal Pendant Socket

Technical Specifications
  • Rated current: 15A
  • Rated operational voltage: 250V AC 50Hz
  • Number of poles: 2
  • Socket number: 1
  • Connections: Screw terminals 0.75-2.5 mm²
  • Cable entry: Cable gland
  • Material: PBT housing, brass sleeves
  • Ambient air temperature for operation: -25 to 75 °C
  • Dimensions (H x L x W): 83mm x 183mm x 83mm
  • Weight: 0.26 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Designed for power supply applications with a robust construction.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Small commercial, utility, and industry applications
Standards & Compliance
  • Complies with AS/NZS 3120 and EN 60309-2 for safety and performance.
Environmental Benefits
  • Compliant with RoHS regulations, ensuring reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Pendant Outlet is available now for immediate purchase. Ideal for industrial applications requiring reliable power supply.

56SPO315-RW (56SPO315-RW, 193 Kb) [Download]
