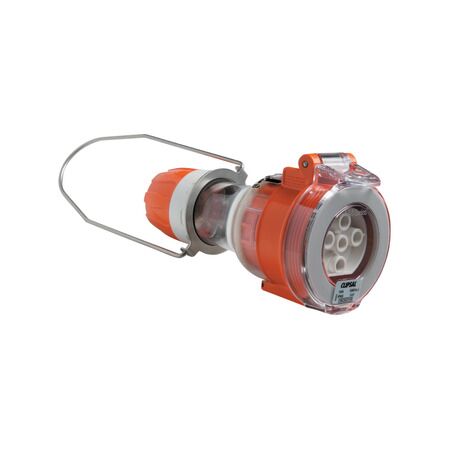

Pendant Outlet IP66 | 500V 20A | 5 Round Pins | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56PO520-EO
$226.40 List price: $339.60
+ −
30 Days Return Delivery Options
Pendant outlet with IP66 rating and 500V 20A capacity—ideal for industrial and small commercial applications. Built for durability, with electric orange finish and 5 round pins for secure connections.

Product Name/Title: Clipsal - 56 Series, Pendant Outlet, IP66, 500V 20A - 5 Round Pins - Electric Orange

Brand: Clipsal

SKU: 56PO520-EO

Alternatively Known As: Industrial Pendant Outlet, 56 Series Outlet, Clipsal Power Supply Outlet

Technical Specifications
  • Rated current: 20 A
  • Rated operational voltage: 500 V AC 50 Hz
  • Socket number: 1
  • Connections: screw terminals 1-6 mm²
  • Cable outer diameter: 7-16 mm
  • Cable entry: cable gland
  • Material: Polycarbonate housing, brass sleeves
  • Poles description: 3P + N + E
  • Thread type: M25
  • Ambient air temperature for operation: -25 to 75 °C
  • Dimensions (H x L x W): 90mm x 209mm x 90mm
  • Weight: 0.36 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Designed for external mounting with a pendant support.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Power supply for small commercial and utility applications.
Standards & Compliance
  • Complies with AS/NZS 3120 and EN 60309-2 for safety and performance.
Environmental Benefits
  • Compliant with RoHS regulations, ensuring reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Pendant Outlet is available now for immediate purchase. Ideal for industrial and small commercial applications.

56PO520-EO (56PO520-EO, 207 Kb) [Download]
