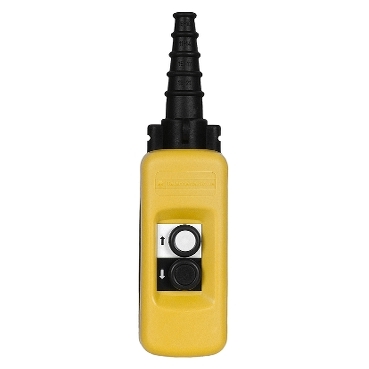

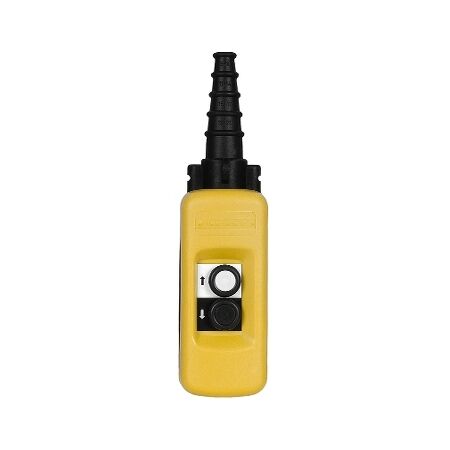

Pendant Station 2 Push Button | IP65 Rated | Ergonomic Design | Durable Thermoplastic | @Pack of 1 | by Clipsal
The Pendant Station 2 Push Button is designed for industrial control applications, featuring two clearly marked buttons for easy operation. With an IP65 rating for dust and water resistance, this durable thermoplastic station is perfect for cranes, hoists, and factory automation. Built to withstand harsh environments, it ensures reliable performance in workshops and manufacturing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pendant Station 2 Push Button | IP65 Rated | Ergonomic Design | Durable Thermoplastic | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXACA281
Alternatively Known As: 2 Button Pendant Control Station, Industrial Pendant Switch, Crane Pendant Control, Clipsal SCHXACA281
Technical Specifications
- Number of buttons: 2
- Enclosure material: Thermoplastic
- IP rating: IP65
- Rated insulation voltage: 500V
- Operating temperature: -25°C to +70°C
- Shock resistance: 30g (11ms)
- Cable entry: 1 x M20
- Contact type: 1NO per button
- Dimensions (H x L x W): 200mm x 70mm x 65mm
- Weight: 0.45 kg
Key Features
- Durable industrial-grade pendant station
- Equipped with 2 push buttons for control operations
- Ergonomic design for comfortable handling
- IP65 rated for dust and water resistance
- Shock-resistant thermoplastic enclosure
- Clearly marked buttons for easy identification
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician to ensure compliance with safety standards.
Applications
- Industrial machinery control
- Cranes and hoists
- Conveyor systems
- Factory automation
- Workshops and manufacturing plants
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-lasting, durable construction reduces replacement frequency and waste.
- IP65 rating ensures protection against dust and water, supporting safe and sustainable industrial environments.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Pendant Station 2 Push Button SCHXACA281 is available for immediate purchase. Ideal for industrial control applications such as cranes, hoists, and machinery operation.
