Home/Electrical/Switchgear/Isolating Switches/Main Switches/PES 1100V 60A 4P Receptacle | IP55 Rated | Stainless Steel | Flameproof by Ausproof

Trade Discount 19%

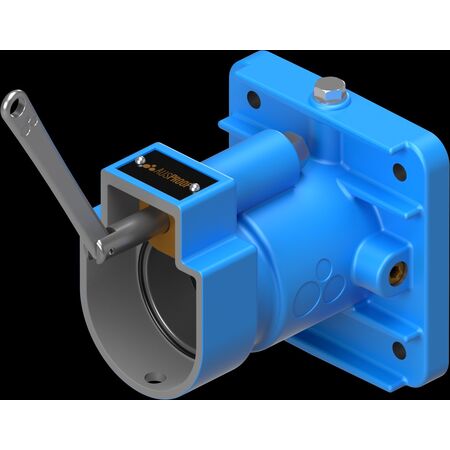

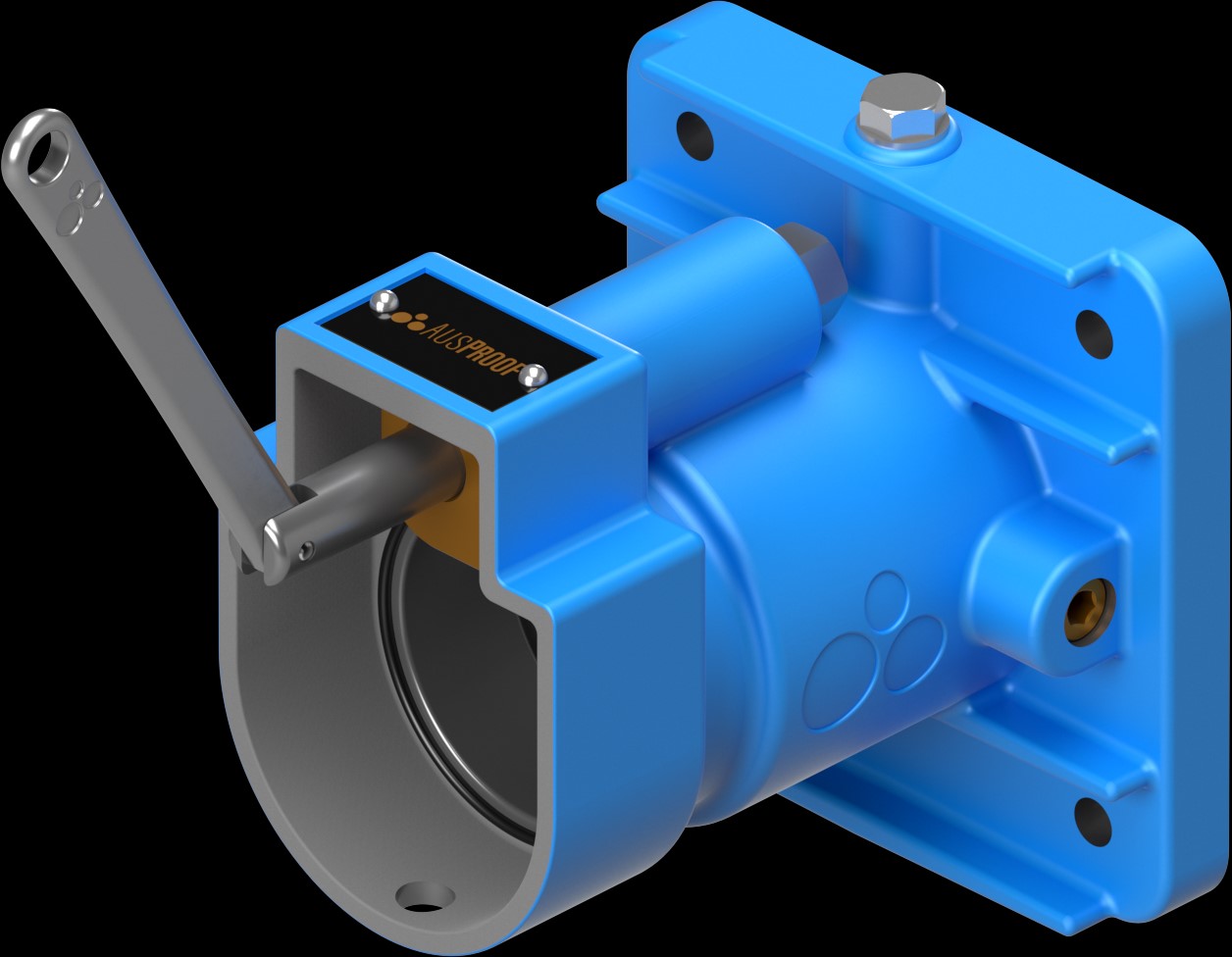

PES 1100V 60A 4P Receptacle | IP55 Rated | Stainless Steel | Flameproof by Ausproof

BRAND: Ausproof

SKU: RS2309

$1,095.90 List price: $1,361.10

+ −

30 Days Return Delivery Options

PES 1100V 60A 4P receptacle with IP55 rating and durable stainless steel construction—ideal for mining and hazardous environments. Built for safety and compliance, featuring easy termination and flameproof design for enhanced protection.

Description

Product Name/Title: PES 1100V 60A 4P Receptacle (90) 10-C

Brand: Ausproof

SKU: RS2309

Alternatively Known As: PES 60A Receptacle, PES 1100V 4 Pole Receptacle, Flameproof Electrical Receptacle, Ex Certified Receptacle

Technical Specifications

Voltage: 660-1,100V
Current Rating: Ex 60 Amp; Non Ex 90 Amp
Material: Grade 304 Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 3.2kA for 0.2 seconds (2 tests)
Through Fault Current (Earth): 1.0kA for 0.2 seconds (2 tests)
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 60A and 90A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 200mm x 150mm x 150mm
Weight: 5 kg

Key Features

A single solid earth body
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof design enhances safety, reducing risk of environmental hazards.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PES 1100V 60A 4P Receptacle (90) 10-C is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
