Home/Electrical/Accessories/Glands/PES 660V 60A 4P Gland Bracket | IP55 Rated | Stainless Steel | Flameproof by Ausproof

Trade Discount 19%

PES 660V 60A 4P Gland Bracket (270) 6-C 29-32-G (241.1)

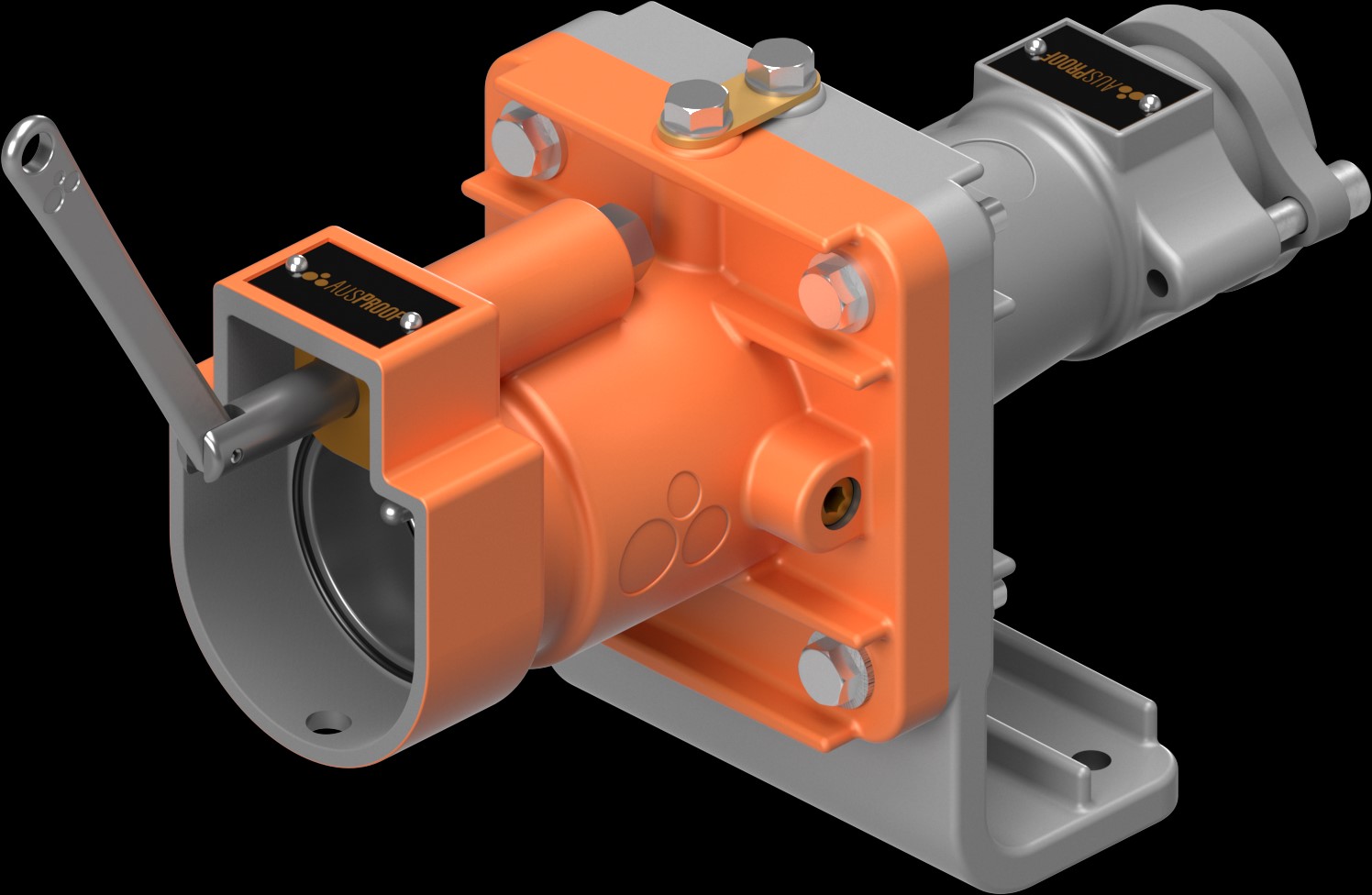

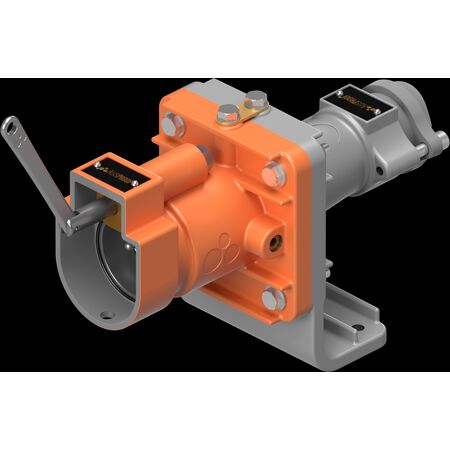

PES 660V 60A 4P Gland Bracket | IP55 Rated | Stainless Steel | Flameproof by Ausproof

BRAND: Ausproof

SKU: RS2280

$2,190.40 List price: $2,720.40

+ −

30 Days Return Delivery Options

PES 660V 60A 4P Gland Bracket with IP55 rating and durable stainless steel construction—ideal for mining and hazardous environments. Built for safety and reliability, featuring easy termination and flameproof repairability.

Description

Product Name/Title: PES 660V 60A 4P Gland Bracket (270) 6-C 29-32-G (241.1)

Brand: Ausproof

SKU: RS2280

Alternatively Known As: PES Gland Bracket 60A, Ex-rated Gland Bracket, Flameproof Gland Bracket, PES 4 Pole Gland Bracket

Technical Specifications

Voltage: 660-1,100V
Current Rating: 60A Ex, 90A Non-Ex
Material: Grade 304 Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 3.2kA for 0.2 seconds (2 tests)
Through Fault Current (Earth): 1.0kA for 0.2 seconds (2 tests)
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 60A and 90A
Weight: 5.0 kg (Receptacle), 2.6 kg (Plug)
Dimensions (H x L x W): 150mm x 250mm x 200mm
Weight: 5 kg

Key Features

A single solid earth body
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified personnel trained in Ex-rated electrical equipment and hazardous area installations.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairability reduces waste by allowing on-site barrel replacement.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PES 660V 60A 4P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
