PES 660V 60A 4P Gland Bracket (270) 2.5-C 17-20-G (5 Core)

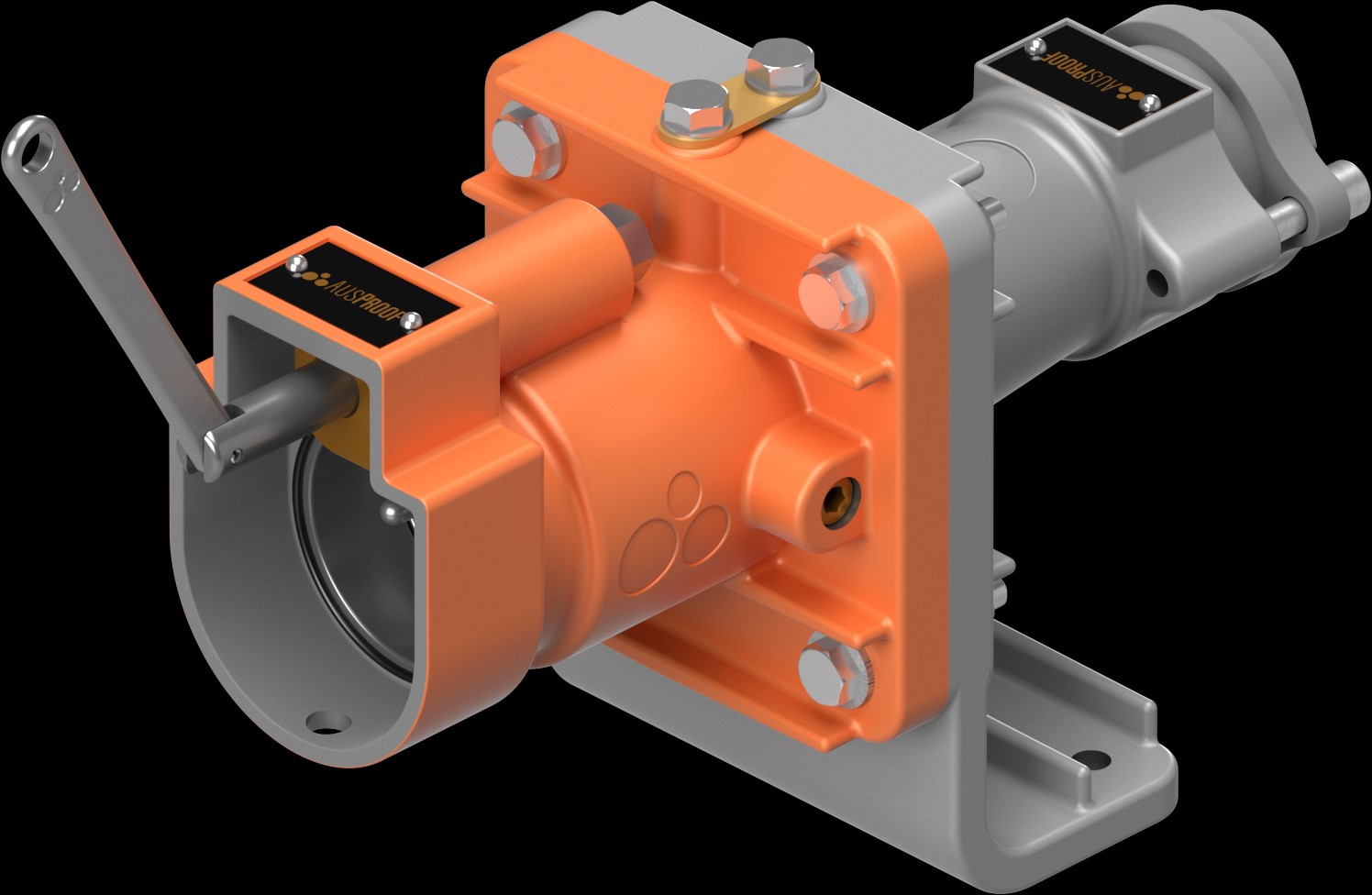

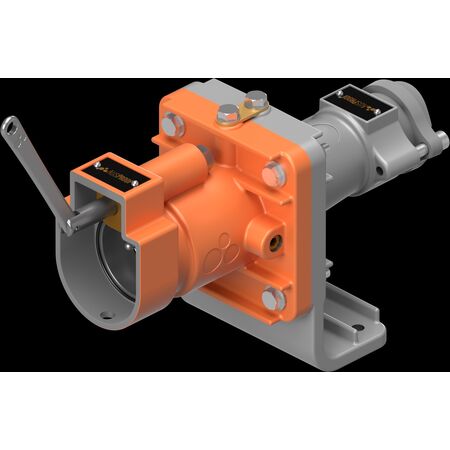

PES 660V 60A 4P Gland Bracket | IP55 Rated | Stainless Steel | Flameproof by Ausproof

BRAND: Ausproof

SKU: RS2289

$2,190.40 List price: $2,720.40

+ −

30 Days Return Delivery Options

PES 660V 60A 4P Gland Bracket with IP55 rating and durable stainless steel construction—ideal for mining and hazardous environments. Built for safety and reliability, featuring easy termination and flameproof design for enhanced protection.

Description

Product Name/Title: PES 660V 60A 4P Gland Bracket (270) 2.5-C 17-20-G (5 Core)

Brand: Ausproof

SKU: RS2289

Alternatively Known As: PES 60A Gland Bracket, Ex-rated Gland Bracket, Flameproof Gland Bracket, 4 Pole Gland Bracket 660V

Technical Specifications

Voltage: 660-1,100V
Current: Ex 60 Amp; Non Ex 90 Amp
Material: Grade 304 Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 3.2kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 1.0kA for 0.2 seconds
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Suitable for 60A and 90A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 200mm x 100mm x 150mm
Weight: 2.6 kg

Key Features

A single solid earth body
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel is required, especially for hazardous environment compliance and flameproof repair procedures.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof design enhances safety, reducing risk of environmental hazards.

Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PES 660V 60A 4P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
