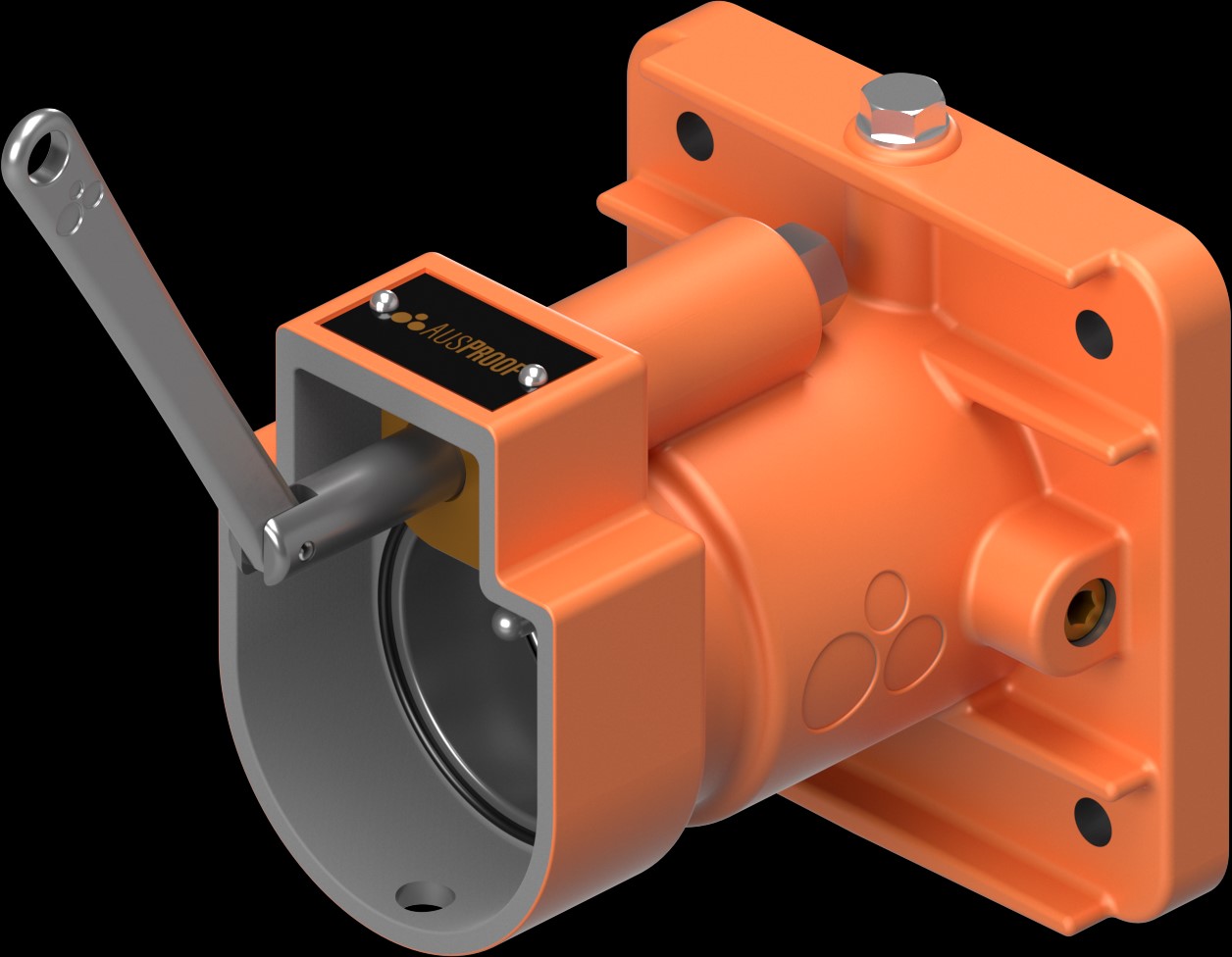

PES 660V 60A 4P Receptacle | 660-1100V | IP55 Rated | Stainless Steel by Ausproof
PES 660V 60A 4P receptacle with 660-1100V voltage range and IP55 rating—ideal for mining and hazardous environments. Built for safety and durability, featuring stainless steel construction and easy termination for reliable electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PES 660V 60A 4P Receptacle (270) 6-C
Brand: Ausproof
SKU: RS2276
Alternatively Known As: PES 60 Amp Receptacle, Ex-rated 4 Pole Receptacle, Flameproof Electrical Connector, Mining Grade Receptacle
Technical Specifications
- Voltage: 660-1,100V
- Current: 60A Ex rated, 90A Non Ex rated
- Material: Grade 304 Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 3.2kA for 0.2 seconds (2 tests)
- Through Fault Current (Earth): 1.0kA for 0.2 seconds (2 tests)
- AC High Voltage Withstand (Phase): 4.2kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Suitable for 60A and 90A
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 200mm x 150mm x 150mm
- Weight: 5 kg
Key Features
- A single solid earth body
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone protection cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with Ex-rated equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof design enhances safety, reducing risk of environmental hazards.
Warranty Information
Warranty details available upon request from Ausproof.
Available Now
The Ausproof PES 660V 60A 4P Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring flameproof electrical connections.
