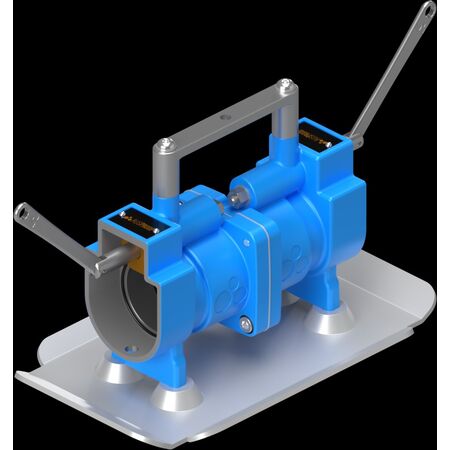

PES B2B 1100V 60A Blue Body Kit | IP55 Rated | Stainless Steel | Easy Termination by Ausproof
The PES B2B 1100V 60A Blue Body Kit is designed for hazardous environments, featuring IP55 protection and durable stainless steel construction. Ideal for mining and tunnelling applications, it offers easy termination and flameproof repair, ensuring safety and reliability in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PES B2B 1100V 60A Blue Body Kit
Brand: Ausproof
SKU: RS2408
Alternatively Known As: PES Back-to-Back 60A Kit, PES 1100V Flameproof Connector, Ex-rated 60 Amp Blue Body Kit
Technical Specifications
- Voltage: 660-1,100V
- Current Rating: 60A Ex, 90A Non-Ex
- Material: Grade 304 Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 3.2kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 1.0kA for 0.2 seconds
- AC HV Withstand (Phase): 4.2kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Suitable for 60A and 90A
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 300mm x 200mm
- Weight: 5 kg
Key Features
- A single solid earth body
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone protection cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified personnel trained in hazardous area electrical equipment installation to ensure compliance and safety.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair reduces waste and downtime
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The PES B2B 1100V 60A Blue Body Kit by Ausproof is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
