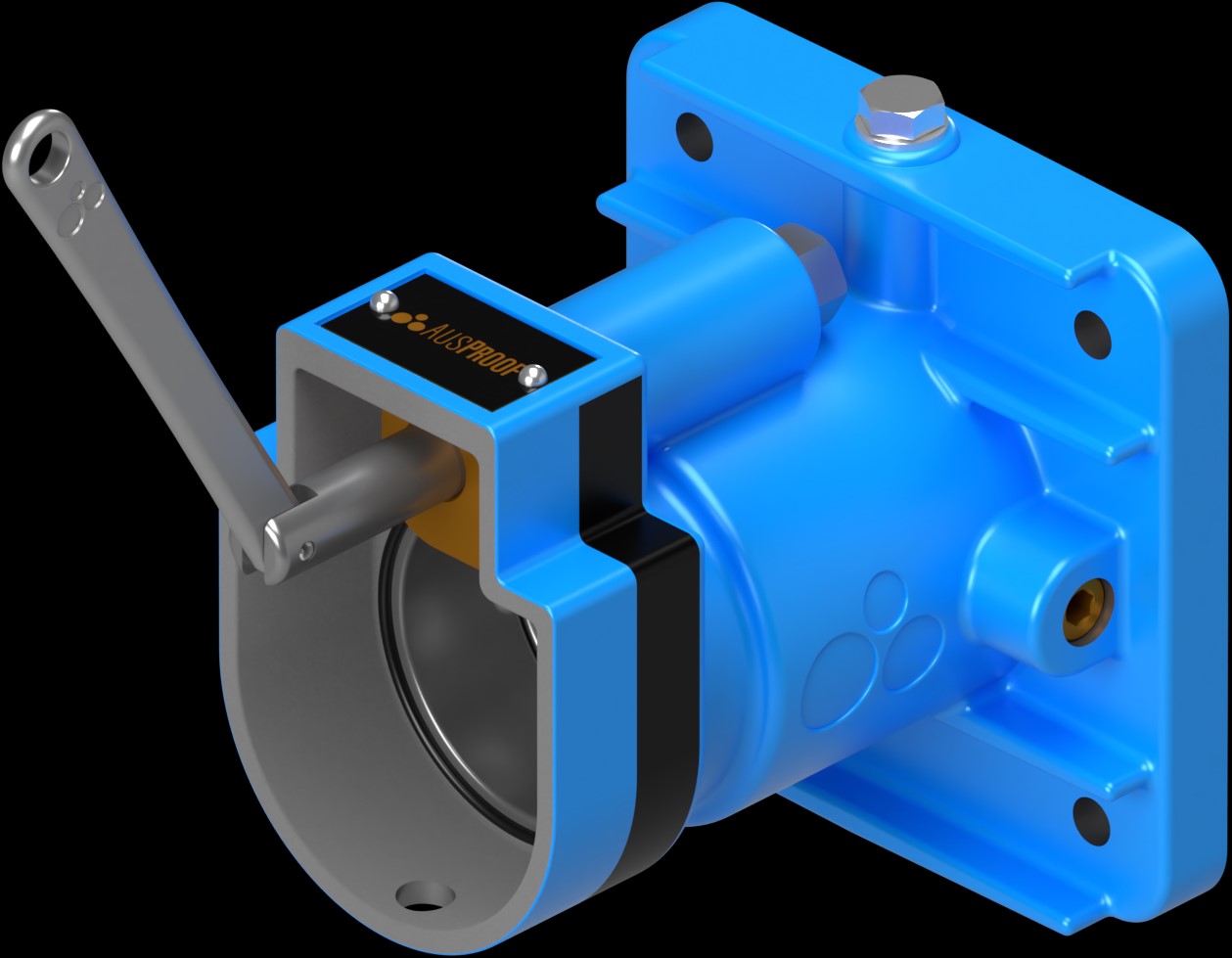

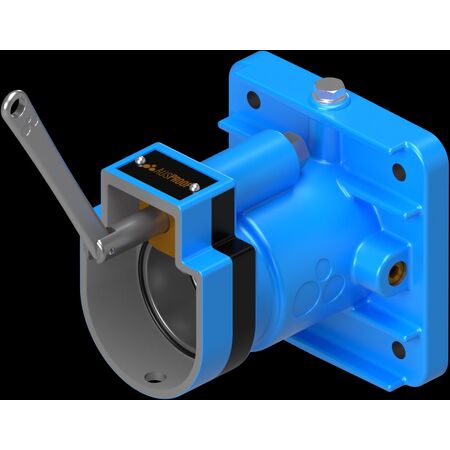

PES FR 1100V 90A Receptacle | 660-1100V | IP55 Rated | Stainless Steel by Ausproof
PES FR 1100V 90A receptacle with 660-1100V voltage range and IP55 ingress protection—ideal for mining and hazardous environments. Built for durability with stainless steel construction, it features easy termination and flameproof repair capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PES FR 1100V 90A Receptacle (90) 4-C
Brand: Ausproof
SKU: RS2307FR
Alternatively Known As: PES 90A Receptacle, Ex-rated 1100V Receptacle, Flameproof Electrical Connector, Mining Receptacle 90A
Technical Specifications
- Voltage: 660-1,100V
- Current Rating: Ex 60 Amp; Non Ex 90 Amp
- Material: Grade 304 Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 3.2kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 1.0kA for 0.2 seconds
- AC HV Withstand (Phase): 4.2kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Suitable for 60A and 90A
- Plug Weight: 2.6KG
- Receptacle Weight: 5.0KG
- Dimensions (H x L x W): 200mm x 150mm x 150mm
- Weight: 5.0 kg
Key Features
- A single solid earth body
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone protection cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with Ex-rated equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairable design minimizes waste by allowing on-site barrel replacement
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PES FR 1100V 90A Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
