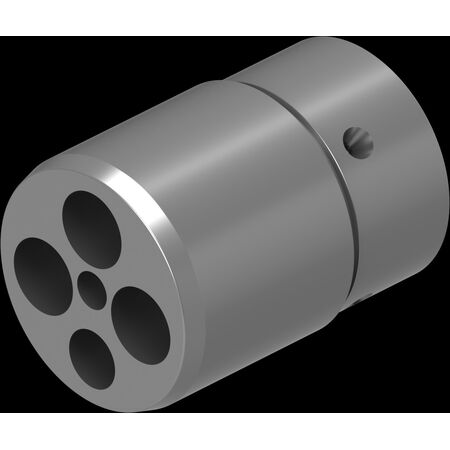

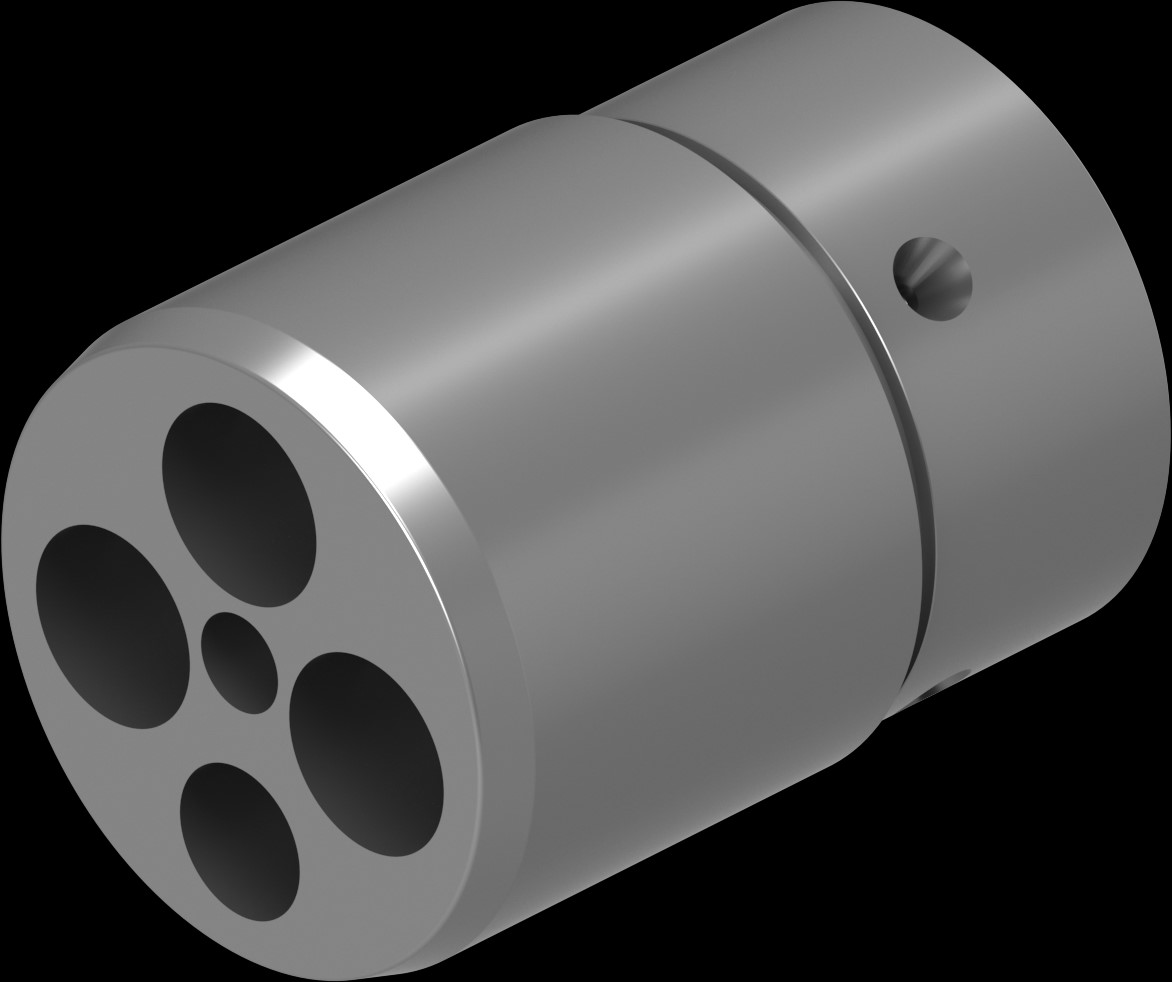

PES FR 660V 90A 4P Plug (270) 6-C 23-26-G (5 Core)

PES FR 660V 90A 4P Plug | IP55 Rated | Flameproof Design & Easy Termination | 5 Core by Ausproof

BRAND: Ausproof

SKU: RS2272FR

$856.60 List price: $1,063.90

+ −

30 Days Return Delivery Options

The PES FR 660V 90A 4P Plug is designed for hazardous environments, featuring IP55 rating, flameproof design, and easy termination. Ideal for mining and tunnelling applications, it ensures safety and reliability with durable stainless steel construction.

Description

Product Name/Title: PES FR 660V 90A 4P Plug (270) 6-C 23-26-G (5 Core)

Brand: Ausproof

SKU: RS2272FR

Alternatively Known As: PES 660V 90A Plug, Ex-certified 4 Pole Plug, Flameproof Industrial Plug, Mining Electrical Plug

Technical Specifications

Voltage: 660-1,100V
Current Rating: Ex 60 Amp; Non Ex 90 Amp
Material: Grade 304 Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 3.2kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 1.0kA for 0.2 seconds
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Suitable for 60A and 90A
Weight: Plug 2.6KG, Receptacle 5.0KG
Dimensions (H x L x W): 200mm x 250mm x 150mm
Weight: 2.6 kg

Key Features

A single solid earth body
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electricians experienced with Ex-certified equipment and hazardous environment standards.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Compliant to AS/NZS 1299
Compliant to IEC 60079-0
Compliant to IEC 60079-1

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site barrel replacement.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PES FR 660V 90A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
