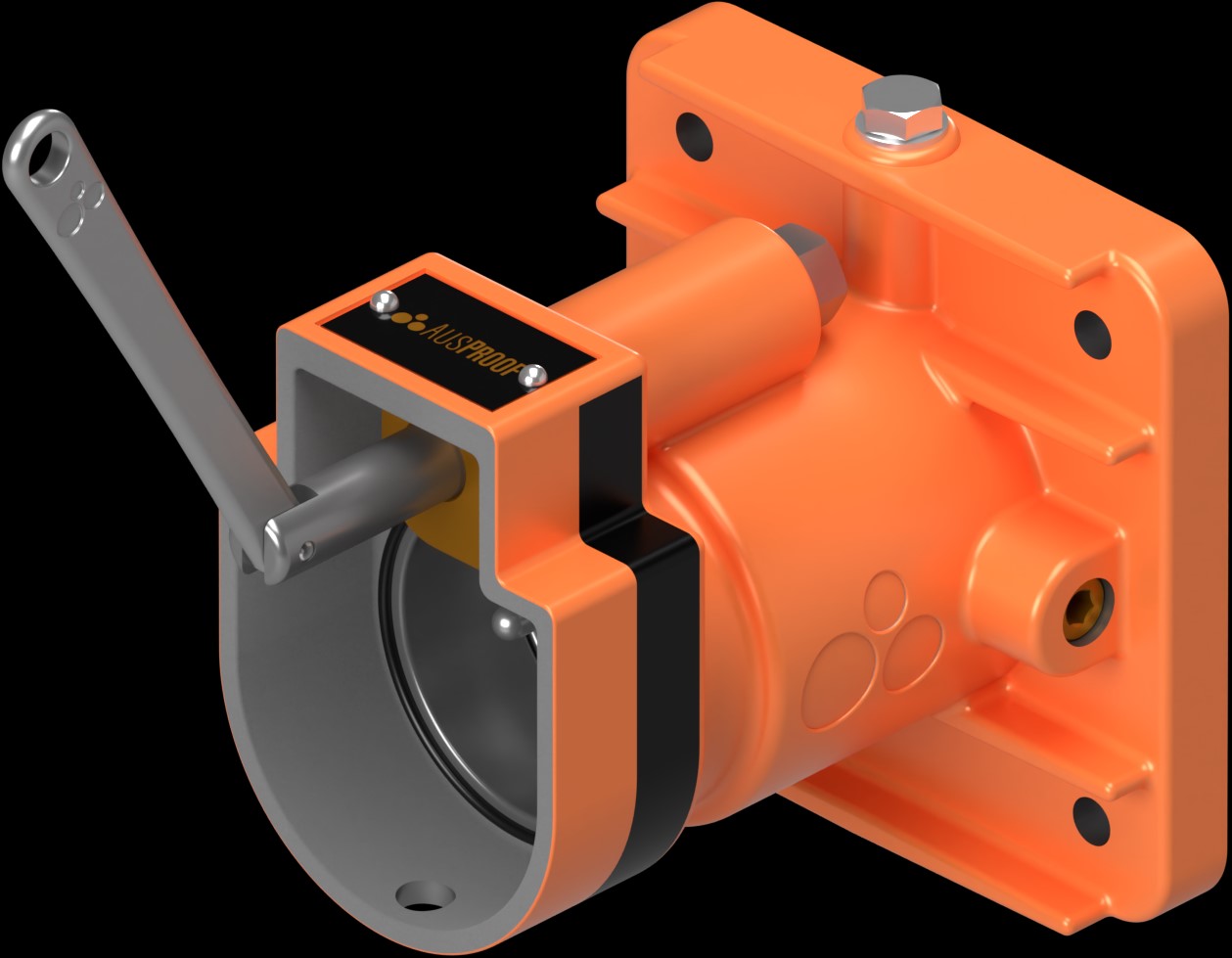

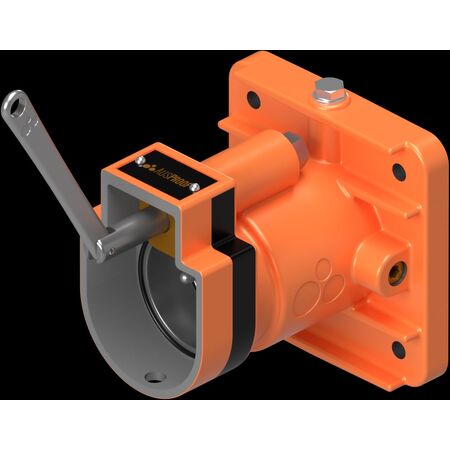

PES FR 660V 90A Receptacle | 660-1100V | IP55 Rated | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS2275FR

$1,095.90 List price: $1,361.10

+ −

30 Days Return Delivery Options

PES FR 660V 90A receptacle with 660-1100V voltage range and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, featuring stainless steel construction and easy termination for reliable connections.

Description

Product Name/Title: PES FR 660V 90A Receptacle (270) 4-C

Brand: Ausproof

SKU: RS2275FR

Alternatively Known As: PES 660V 90A Flameproof Receptacle, Ex-rated 90 Amp Receptacle, Mining Grade Receptacle, Flameproof Electrical Connector

Technical Specifications

Voltage: 660-1,100V
Current Rating: Ex 60 Amp; Non Ex 90 Amp
Material: Grade 304 Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 3.2kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 1.0kA for 0.2 seconds
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Suitable for 60A and 90A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 200mm x 150mm x 150mm
Weight: 5.0 kg

Key Features

A single solid earth body
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel experienced in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste and replacement frequency.
Flameproof design enhances safety, reducing risk of environmental hazards.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PES FR 660V 90A Receptacle (270) 4-C is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
