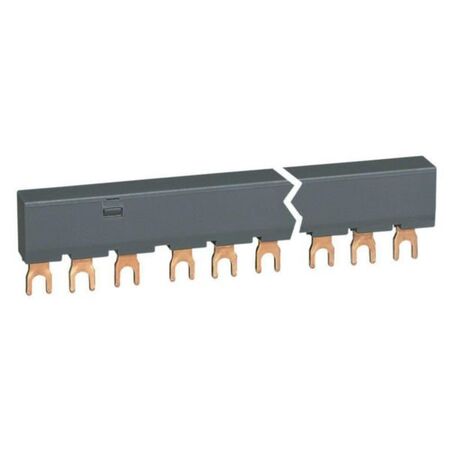

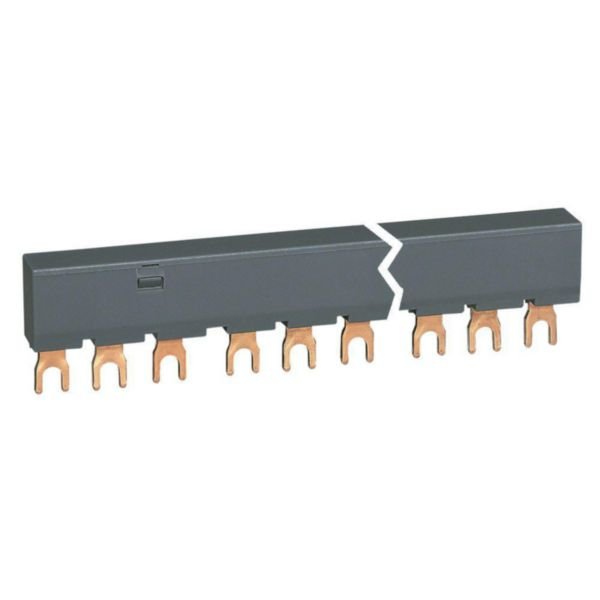

Phase Busbar MPX3 32S/H/MA | 63A Rated Current | Insulated Fork Connection | Compact Design | @EA of 1 | by Legrand
The Phase Busbar MPX3 32S/H/MA is engineered for reliable power distribution with a rated current of 63A, designed for quick and easy connections. Ideal for tertiary and industrial electrical installations, this compact solution supports up to 4 devices across 12 phases and 12 poles, ensuring efficient performance in switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 63A
- Number of phases: 12
- Number of poles: 12
- Suitable for number of devices: 4
- Module width: 15 mm
- Length: 175 mm
- Width in modular spacings: 11
- Type of electric connection: Fork
- Insulated: Yes
- Max rated operation voltage: 690 V
- Not suitable for devices with N-conductor or auxiliary switch
- Colour: Grey
- Dimensions (H x L x W): 40mm x 175mm x 165mm
- Weight: 1.5 kg
Key Features
- Rated current of 63A for reliable power distribution
- Designed for simple and fast connection
- Compact wiring solution for efficient installation
- Insulated fork type electric connection
- Suitable for 4 devices with 12 phases and 12 poles
- Maximum rated operation voltage of 690V
Professional Installation Requirements
- Installation should be performed by a qualified electrician following the product instructions and local electrical codes.
Applications
- Tertiary electrical installations
- Industrial electrical installations
- Switchboards and power cabinets for control and signalling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Efficient electrical connection minimizes energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
Legrand Phase Busbar MPX3 32S/H/MA for 4 breakers is available for immediate purchase, ideal for tertiary and industrial electrical installations.
