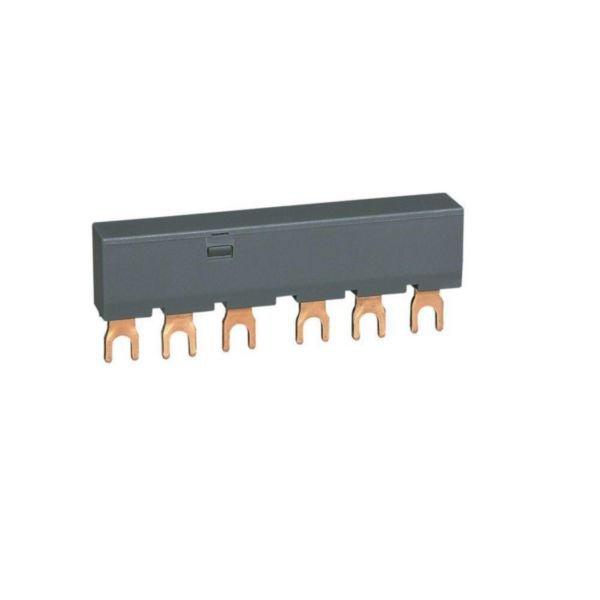

Phase Busbar MPX3 32S/H/MA | 63A Rated Current | Insulated Fork Connection | Grey Color | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 417471
$33.00 List price: $41.10
+ −
30 Days Return Delivery Options
The Phase Busbar MPX3 32S/H/MA is designed for efficient electrical installations, featuring a 63A rated current and an insulated fork type electric connection. Ideal for tertiary and industrial applications, this compact solution supports up to 2 devices with 6 phases and 6 poles, ensuring reliable performance in control and signaling switchboards.

Product Name/Title: Phase Busbar MPX3 32S/H/MA | 63A Rated Current | Insulated Fork Connection | Grey Color | @EA of 1 | by Legrand

Brand: Legrand

SKU: 417471

Alternatively Known As: MPX3 Phase Busbar, Legrand Busbar for 2 Breakers, MPX3 32S Busbar

Technical Specifications
  • Rated current: 63A
  • Number of phases: 6
  • Number of poles: 6
  • Suitable for number of devices: 2
  • Module width: 15 mm
  • Length: 85 mm
  • Width in modular spacings: 5
  • Type of electric connection: Fork
  • Insulated: Yes
  • Max rated operation voltage: 690 V
  • Not suitable for devices with N-conductor or auxiliary switch
  • Dimensions (H x L x W): 30mm x 85mm x 75mm
  • Weight: 0.5 kg
Key Features
  • Rated current: 63A
  • Designed for simple and fast connection
  • Compact wiring solution
  • Insulated fork type electric connection
  • Suitable for 2 devices
  • 6 phases and 6 poles
  • Max rated operation voltage: 690 V
  • Grey color
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following the product instructions and local electrical codes.
Applications
  • Tertiary electrical installations
  • Industrial electrical installations
  • Control and signalling switchboards and power cabinets
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Compact design reduces material usage
  • Facilitates efficient electrical connections reducing energy loss
Warranty Information

Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand Phase Busbar MPX3 32S/H/MA for 2 breakers is available for immediate purchase, ideal for tertiary and industrial electrical installations.
