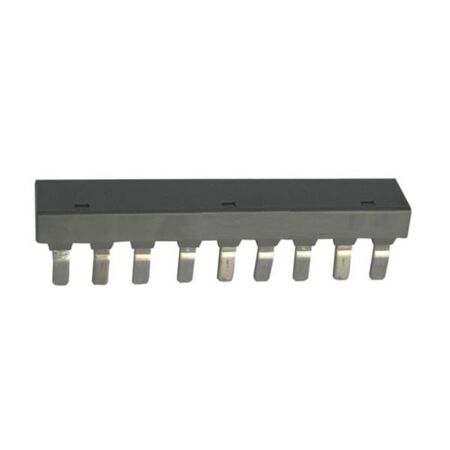

Phase Busbar MPX3 63H Breakers | 108A Rated Current | Insulated Connection | Grey Color | @EA of 1 | by Legrand
The Phase Busbar MPX3 63H Breakers is designed for reliable electrical installations, featuring a rated current of 108A and an insulated pin type electric connection. Ideal for tertiary and industrial applications, this compact solution supports up to 3 devices with 9 phases and 9 poles, ensuring efficient and safe operation in switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Phase Busbar MPX3 63H Breakers | 108A Rated Current | Insulated Connection | Grey Color | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417474
Alternatively Known As: MPX3 63H Busbar, Legrand Phase Busbar, Industrial Busbar for Breakers, Electrical Busbar MPX3
Technical Specifications
- Rated current: 108A
- Number of phases: 9
- Number of poles: 9
- Suitable for number of devices: 3
- Module width: 18.3 mm
- Length: 165 mm
- Width in number of modular spacings: 8
- Rated permanent current Iu: 108 A
- Type of electric connection: Pin
- Insulated: Yes
- Max. rated operation voltage Ue: 690 V
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: No
- Colour: Grey
- Dimensions (H x L x W): 30mm x 165mm x 147mm
- Weight: 1.5 kg
Key Features
- Rated current of 108A for reliable performance
- Designed for simple and fast connection
- Compact wiring solution for efficient installation
- Insulated pin type electric connection
- Suitable for 3 devices with 9 phases and 9 poles
- Maximum rated operation voltage of 690V
- Grey color for easy identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician following the product instructions and local electrical codes.
Applications
- Tertiary electrical installations
- Industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Efficient electrical connection minimizes energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
Legrand Phase Busbar MPX3 63H Breakers are available for immediate purchase, ideal for tertiary and industrial electrical installations.
