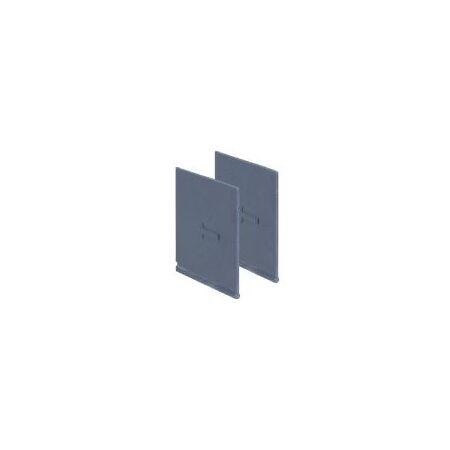

Phase Separator to Suit NM8N 250A MCCB Chint
Chint phase separator (interphase barrier) to suit NM8N 250A frame MCCB. Ideal for increasing creepage between MCCB terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Interphase Barrier, Phase Barrier, MCCB Phase Separator, Terminal Insulation Barrier
Technical Specifications
- Accessory Type: Phase barrier
- Accessory Code: PHS22-M8
- Compatible MCCB: CHINT NM8N-250 frame
- Function: Increases creepage distance between adjacent MCCB terminals
- Construction: Insulating barrier component
- Approximate Thickness: 1 mm
- Dimensions (H x L x W): 1mm x 120mm x 70mm
- Weight: 0.1 kg
Key Features
- Designed specifically for CHINT NM8N-250A frame MCCBs
- Increases creepage distance between adjacent phases
- Helps reduce the risk of phase-to-phase flashover at terminal connections
- Compact accessory for switchboard and distribution-board applications
- Suitable for use with compatible NM8N MCCB terminal arrangements
Professional Installation Requirements
- Installation should be performed by a licensed electrician with the MCCB isolated and verified de-energised. Fit in accordance with CHINT installation instructions and applicable Australian wiring and switchboard requirements.
Applications
- MCCB terminal insulation
- Switchboard construction and modification
- Industrial distribution boards
- Commercial electrical distribution systems
- Electrical equipment requiring increased creepage between adjacent phases
Standards & Compliance
- Applicable to MCCB installations designed in accordance with AS/NZS IEC 60947-2
Environmental Benefits
- Durable insulating accessory can help extend the service life of the associated MCCB installation and reduce replacement waste
- Small, lightweight construction minimises material use and transport impact
Warranty Information
CHINT low-voltage apparatus is covered for defects in materials and workmanship for 27 months from the date of manufacture when purchased through authorised sales channels. Contractual warranty terms may vary.
Available Now
Available through authorised CHINT distributors in Australia.
