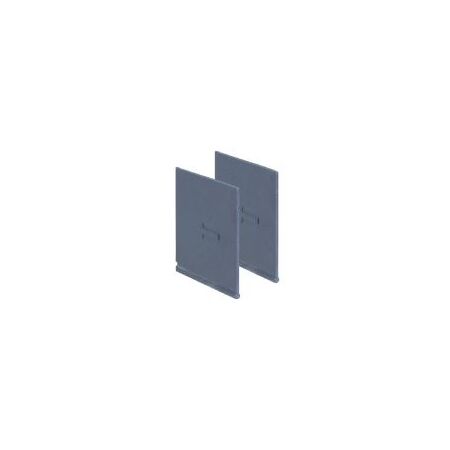

Phase Separator to Suit NM8N 400-630A MCCB Chint

BRAND: CABAC
SKU: 269773
$13.70 List price: $18.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint phase separator (interphase barrier) to suit NM8N 400-630A frame MCCB. Ideal for increasing creepage between MCCB terminals.

Alternatively Known As: CHINT NM8N Interphase Barrier, MCCB Phase Barrier, Terminal Phase Separator

Technical Specifications
  • Compatibility: CHINT NM8N 400-630A frame MCCBs
  • Component Type: Interphase barrier and phase separator
  • Function: Increases creepage distance between adjacent MCCB terminals
  • Insulation: Moulded insulating barrier
  • Installation Position: MCCB terminal area
  • Associated Equipment Standard: AS/NZS IEC 60947.2 applicable to the associated low-voltage circuit breaker
  • Dimensions (H x L x W): 111mm x 76mm x 5mm
  • Weight: 0.1 kg
Key Features
  • Designed specifically for CHINT NM8N 400-630A frame MCCBs
  • Separates adjacent phases at the terminal connection area
  • Increases creepage distance between MCCB terminals
  • Supports safer, more orderly switchboard construction
  • Suitable for replacement or retrofit of a compatible NM8N MCCB accessory
Professional Installation Requirements
  • Installation should be carried out by a licensed electrician or suitably qualified switchboard technician with the MCCB isolated and made safe. Confirm compatibility with the exact NM8N breaker configuration before installation.
Applications
  • CHINT NM8N 400A MCCB installations
  • CHINT NM8N 500A MCCB installations
  • CHINT NM8N 630A MCCB installations
  • Low-voltage distribution switchboards
  • Industrial control panels and power distribution assemblies
Standards & Compliance
  • Used with low-voltage MCCB assemblies designed to AS/NZS IEC 60947.2; confirm the complete installed assembly requirements before commissioning
Environmental Benefits
  • Durable insulating construction can support longer service life of the MCCB assembly and reduce replacement waste
  • Small replacement accessory avoids replacing the complete circuit breaker when only the phase separator is required
Warranty Information

CHINT low-voltage apparatus is generally warranted against defects in materials and workmanship for 27 months from the date of manufacture when sold through authorised channels; contract and local distributor terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
