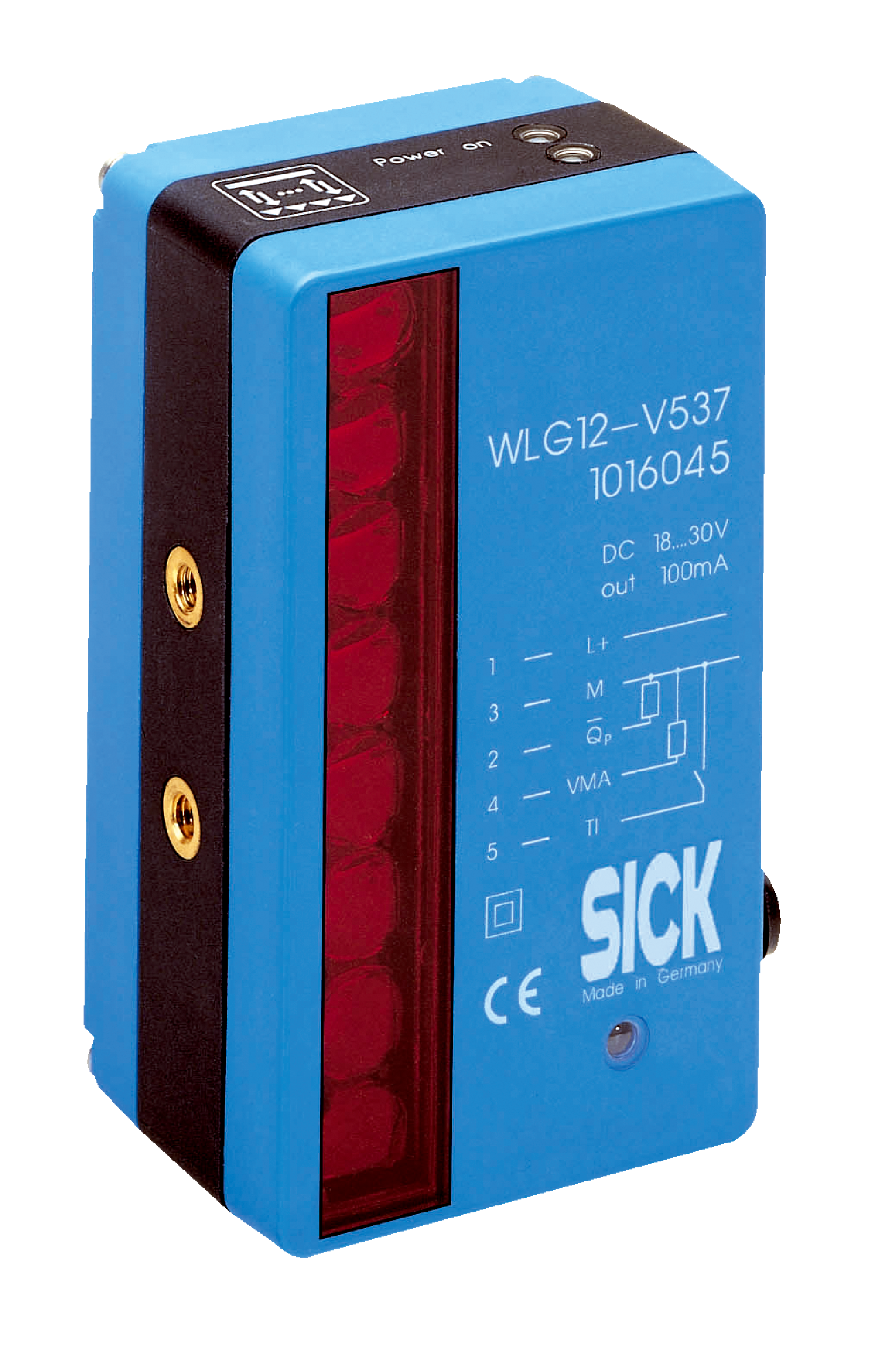

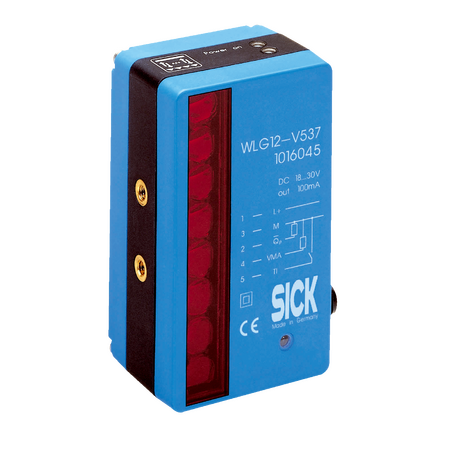

Photoelectric Light Grid Sensor WLG12-P537 | 8 Beams & IP67 Rated | Adjustable Resolution | by SICK
The Photoelectric Light Grid Sensor WLG12-P537 features an innovative retro-reflective design with 8 parallel beams and adjustable resolution from 6 mm to 12.5 mm. Ideal for industrial automation and safety applications, this sensor ensures reliable object detection and positioning with a detection height of 87.5 mm. Its robust IP67 rated enclosure provides dust and water protection, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Light Grid Sensor, Reflexions Light Grid Sensor, SICK Light Grid Sensor, WLG12-P537 Sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: 6 mm to 12.5 mm
- Number of beams: 8
- Beam separation: 12.5 mm
- Detection height: 87.5 mm
- Resolution (adjustable): 6 mm to 12.5 mm
- Wavelength: 650 nm
- Supply voltage: DC 18 V to 30 V
- Power consumption: 80 mA
- Output current max: ≤ 100 mA
- Output mode: 2 x PNP, Q dark switching
- Initialization time: 0.6 s
- Connection type: Plug, M12, 5-pin
- Housing material: Plastic
- Display: LED
- Enclosure rating: IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: II
- Response time: 0.6 ms
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Dimensions (H x L x W): 106mm x 47mm x 62mm
- Weight: 0.23 kg
Key Features
- Photoelectric retro-reflective sensor principle
- 8 parallel beams with 12.5 mm beam separation
- Adjustable resolution from 6 mm to 12.5 mm
- Detection height of 87.5 mm
- Operating range up to 1.5 meters
- High shock resistance (10 g) and vibration resistance (5 g)
- IP67 rated enclosure for dust and water protection
- LED display for status indication
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection and positioning
- Safety light grid applications
- Material handling and packaging systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (80 mA) supports energy efficiency
- Robust design minimizes electronic waste through extended lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WLG12-P537 Reflexions-Light Grid sensor is available for immediate purchase, ideal for industrial automation and safety applications.
